Digital Night Vision Monocular with Video and Photo Recording

Infrared (940 nm) night vision monocular with a 1.3 Megapixel CCD sensor, a built-in 1.4 inch LCD display, a 40 mm lens, 7.6° field of view, 5x optical zoom and 5x digital zoom

SKU 8250-NVI450EAN 5706751043178Features: Built-in battery, microSD slotColour: BlackFormat: Other formatsMaterial: PlasticResolution: 1.3 Mpx

Description

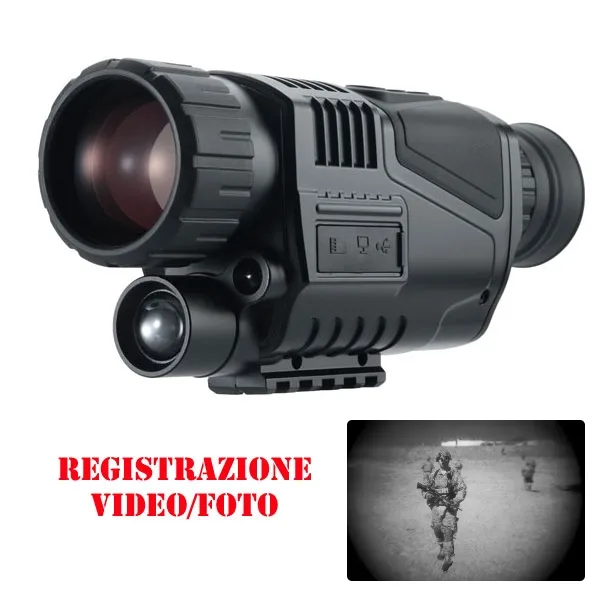

Infrared (940 nm) night vision monocular with a 1.3 Megapixel CCD sensor, a built-in 1.4 inch LCD display, a 40 mm lens, 7.6° field of view, 5x optical zoom and 5x digital zoom. It records video and takes photos (a Micro SD card of max. 32 GB is needed – not included). The range of the infrared illuminator is 200 metres. It has a rechargeable lithium-ion battery (included) rated 3.7 volt 800 mAh, an AV output for connecting to a TV, a USB output and dioptre adjustment: +/- 0.6D. Ideal for hunting, camping, sport and outdoor activities.

The box contains: 1 rechargeable lithium battery, an AC / DC adapter with USB output, a carrying pouch with strap, a black case for the accessories, a polishing cloth, an AV cable, a USB to mini USB cable, a DC jack to USB cable, a rubber lens cover, a hand strap and an instruction manual.

Technical specifications
  • Infrared illuminator (wavelength 940 nm): Yes, built in – max. range 200 metres
  • Battery life:
    – 1 hour with the auxiliary light switched on
    – 1.5 hours with the auxiliary light switched off

Technical details

Image sensor 1.3 Megapixel CCD sensor
Lens 40 mm
Field of view 7.6°
Zoom Optical: 5x / Digital: 5x
LCD display 1.4 inches (built in)
Power supply rechargeable lithium-ion battery, 3.7 volt 800 mAh, type 14500 (included)
Photo resolution 1280x960 pixels
Video resolution VGA 640x480 @ 15FPS
Dimensions (mm) 210x83x58
Weight 325 grams
