Drill-Driven Pump for Transferring Liquids

Pump with a transfer capacity of 850 litres per hour, ideal for filling and emptying deep containers such as swimming pools and aquariums. Fitted with a non-return valve for safe, efficient running. Compatible with most electric drills on the market

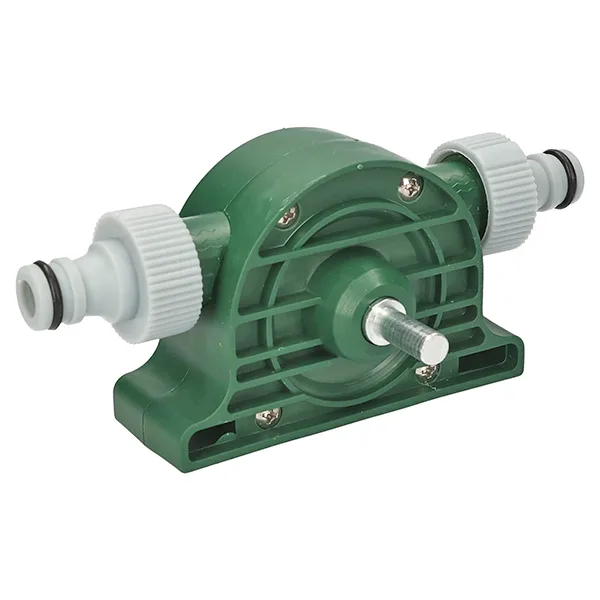

Drill-Driven Pump for Transferring Liquids - Image 1

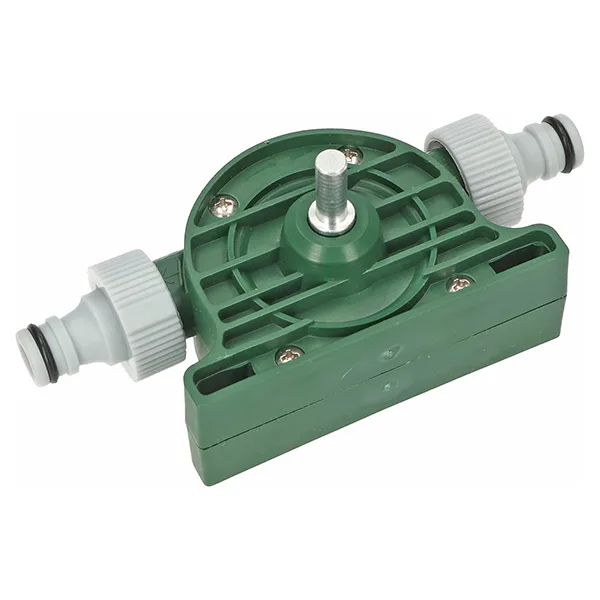

Drill-Driven Pump for Transferring Liquids - Image 3

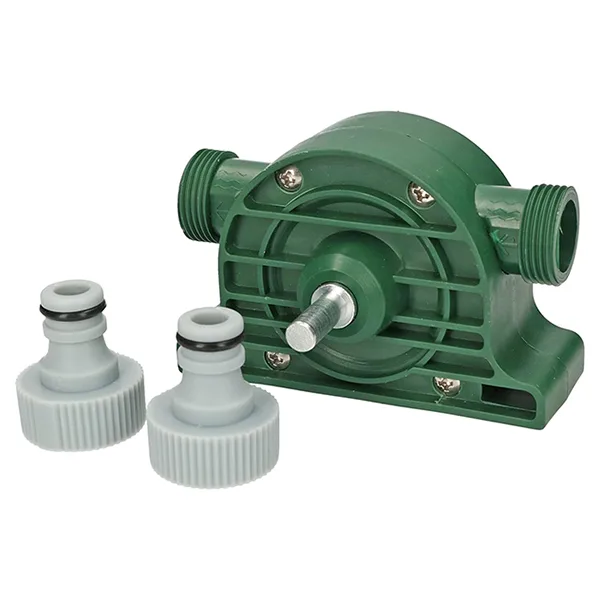

Drill-Driven Pump for Transferring Liquids - Image 4

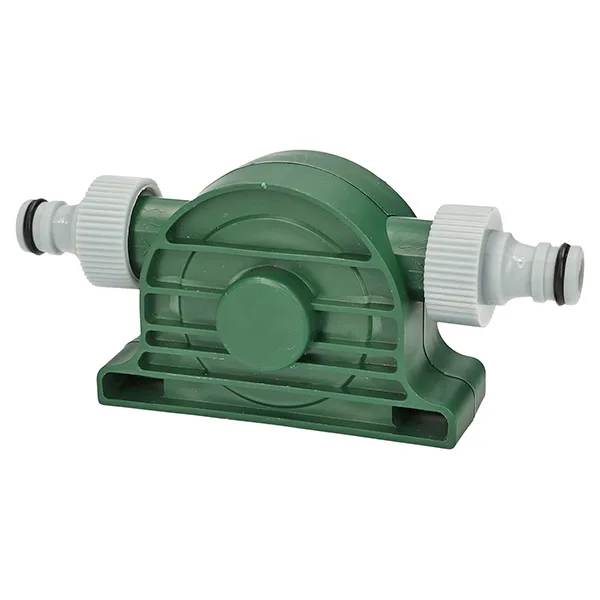

Drill-Driven Pump for Transferring Liquids - Image 5

SKU 8240-DRILLPUMP850Item type: Assembled,

Description

This pump is a practical, efficient way to transfer liquids using an ordinary electric drill. Thanks to its standard 8mm shank it fits the vast majority of drills on the market, giving you a quick, inexpensive way to move liquid from one container to another.

The pump runs at a considerable 2600 revolutions per minute, letting you transfer up to 850 litres of liquid an hour. That capacity makes it ideal for a wide range of transfer jobs. It also comes with two 3/4″ fittings that unscrew easily for effortless installation.

A maximum suction lift of 4 metres and a delivery distance of 40 metres make it particularly suited to filling or emptying deep containers such as aquariums, swimming pools, tanks and garden ponds. A key part of this pump is its non-return valve (or check valve), which stops the liquid flowing back the other way, keeping operation safe and efficient.

Made from tough, high-quality plastic, this pump is built to stand up to wear and to last, giving you a dependable answer to your liquid transfer jobs.

It is not suitable for use with acids or flammable liquids.
Technical specification
  • 3/4″ fittings: 2, unscrewable
  • Shank diameter for fitting in the drill chuck: 8 mm

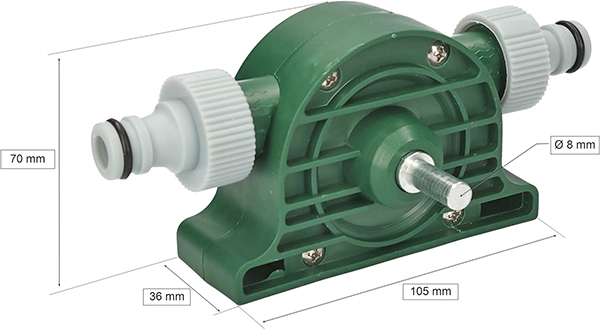

Dimensions

Technical details

Rotation speed 2600 revolutions per minute
Capacity 850 litres/hour
Maximum delivery distance 40 metres
Minimum suction depth 1 metre
Maximum suction depth 4 metres
Non-return valve yes
Housing impact-resistant plastic
Weight 200 grams
