Wired control relay module 2IN-2OUT

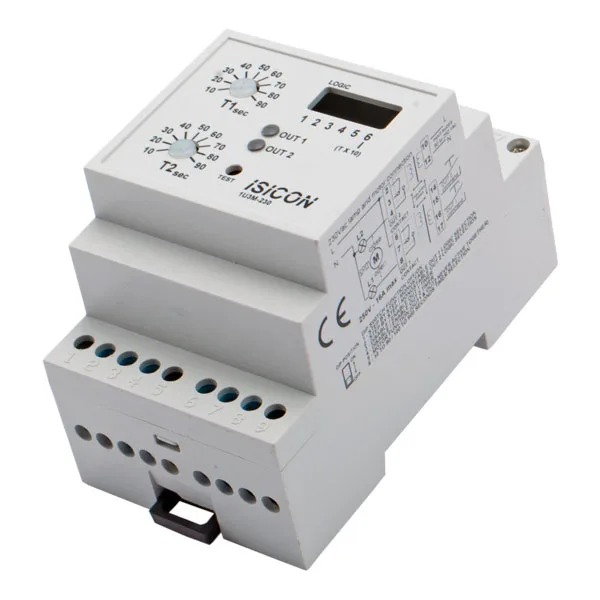

DIN rail-mount programmable module (3-position module) with 2 inputs and 2 relay outputs with N.O. contacts
Wired control relay module 2IN-2OUT - Image 1

SKU 6199-1U3M-230EAN 8219671121835Item type: Assembled,

Description

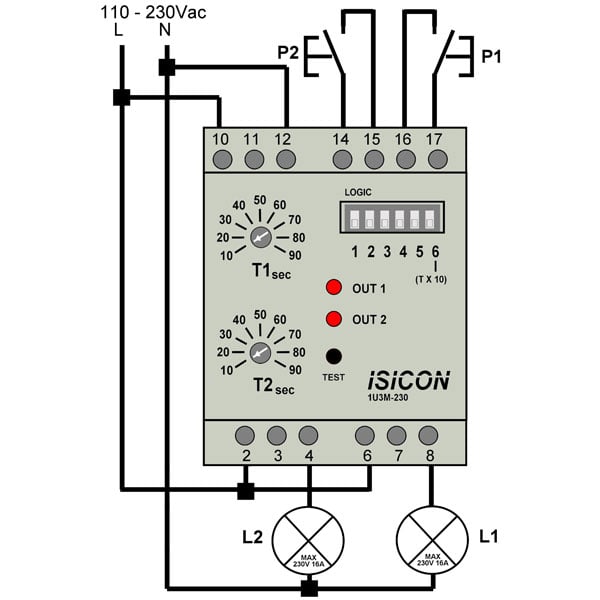

DIN rail-mount programmable module (3-position module) with 2 inputs and 2 relay outputs with N.O. and N.C. contacts. It has two timers (one per output), a status LED, a 6-position DIP switch for settings, and a test button. It can be controlled in the following modes: astable (step-by-step), monostable (pulse), timed astable, timed monostable, auto-cycle, and motor-control function. Any load can be connected to each output up to a maximum of 250 VAC and 16 A. The outputs are isolated from each other, so circuits with different voltages can be connected. Power supply: 110-230V 50/60Hz, output contact rating: 250V 16A 3.5kW. Fields of use: industrial electrical systems, home automation, semi-automatic automation.
Applications

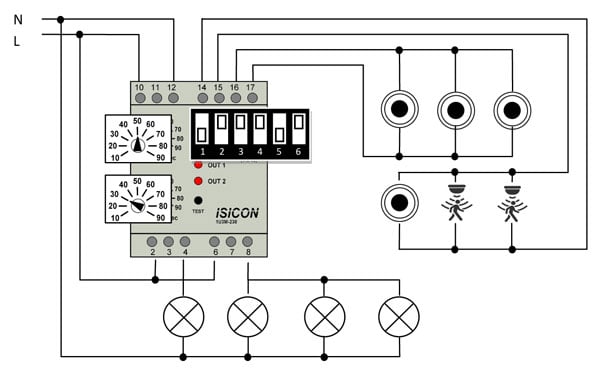

Control of 2 light groups from 6 control points made up of push-buttons and motion sensors.

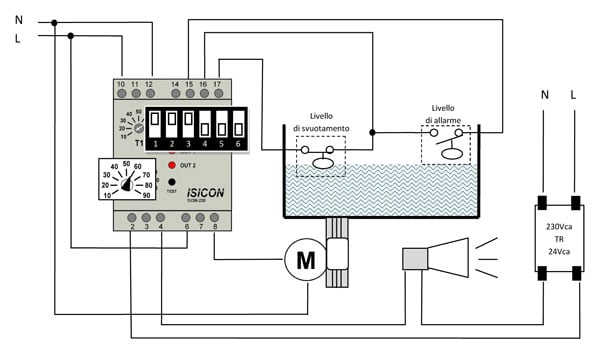

Control of a 230Vac tank-draining pump driven by a liquid level sensor on output
1, and a 24V siren driven by a second liquid level sensor on output 2
Technical features
  • CONTROL LOGIC:
    – Astable (step-by-step)
    – Monostable (pulse)
    – Timed astable
    – Timed monostable
    – Auto-exclusion of the other output for motor control
    – Timing from 10 to 900 seconds
    – Auto-cycle function
Technical specifications
  • 2 Inputs: isolated from the mains voltage and from the outputs
  • 2 Outputs: relay type, with contacts rated 16 A AC up to 250 V / 16 A DC up to 24 V
  • Mounting type: Electrical panel or DIN rail enclosure

Technical details

Power supply 110-230 VAC 50/60 Hz
Consumption min. 0.4 watt / max. 2.5 watt
Timer error 3%
Outdoor use only if housed in an IP65 enclosure (not included)
Operating temperature -10°C to +80°C
