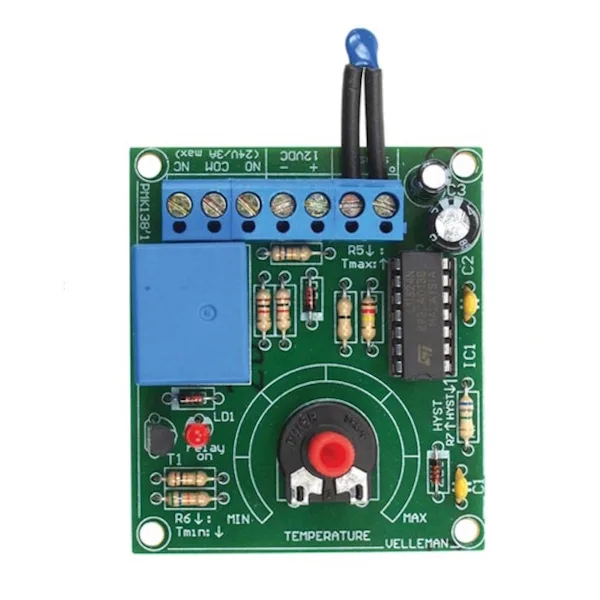

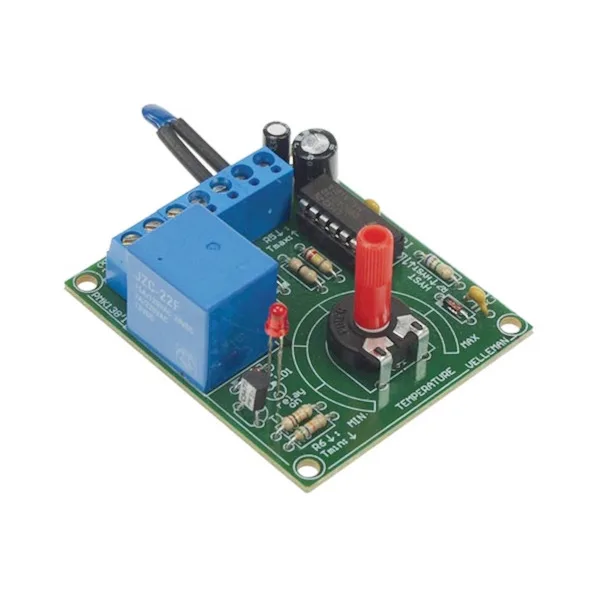

Relay Thermostat for Heating and Cooling Control – Kit

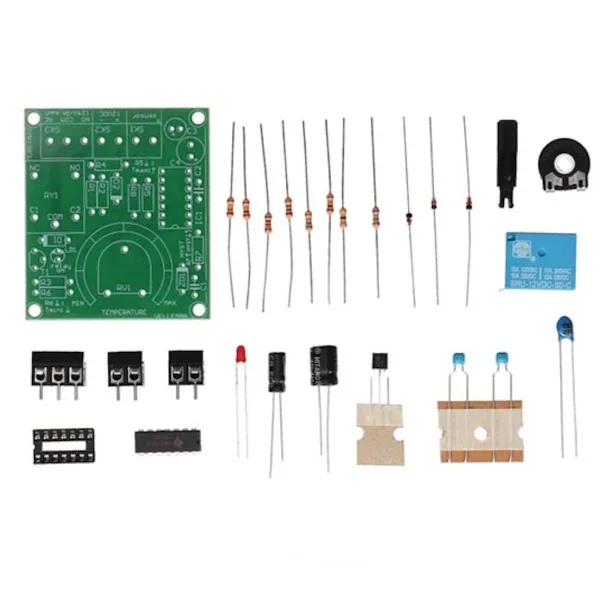

SKU 8220-MK138EAN 5410329001384Item type: KitTimers & thermostats, Weather stations & clocks
Description
The Relay Thermostat is the ideal solution for precise control of heating and air conditioning systems. This versatile device features an output relay and an intuitive LED indicator, making it suitable for a wide range of applications, including control of heating systems, monitoring of air conditioning systems, and fan control.
With a temperature range from 5°C to 30°C (41 to 86°F), our thermostat offers accurate regulation to ensure optimal comfort in any environment. The hysteresis of just 1°C (1.8°F) guarantees exceptional thermal stability, avoiding unwanted temperature fluctuations.
The output relay has a rated power of 24 VDC/VAC and 3 A, ensuring a safe and reliable connection with your system. Additionally, the thermostat is low-power, requiring only 12 VDC and 100 mA.
The compact dimensions of the thermostat (54 x 62 x 28 mm) allow for discreet installation in any environment. The thermostat comes in a mounting box.
Technical details
| Temperature range | from 5°C to 30°C (41 to 86°F) |
|---|---|
| Relay rated power | 24 VDC/VAC - 3 A |
| Power supply | 12 VDC / 100 mA |
| Hysteresis | 1°C (1.8°F) |
| Dimensions | 54 x 62 x 28 mm |
