TEMPERATURE SENSOR (ASSEMBLED)

General-purpose temperature sensor capable of detecting temperatures between -20°C and +70°C

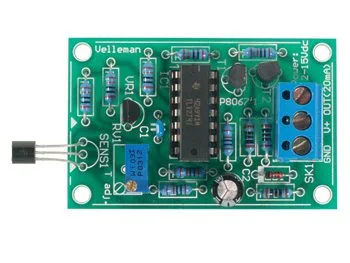

TEMPERATURE SENSOR (ASSEMBLED) - Image 1

SKU 8220-VM132EAN 5410329342814Item type: Assembled

Description

General-purpose temperature sensor capable of detecting temperatures from -20°C to +70°C. Easily interfaced with control, conditioning, and heating devices. Mounted version of kit 8220-8067.

Specifications

  • 3-pole terminal block (GND, +V, and OUT)
  • Power supply:
    – 12Vdc for output between 0~5Vdc
    – 15Vdc for output between 0~10Vdc

Technical details

Temperature measurement range -20°C (-4°F) ~ +70°C (+158°F)
Current output 0~20mA
Voltage output 10V
Current consumption 30mA max
Dimensions 55x35x15
