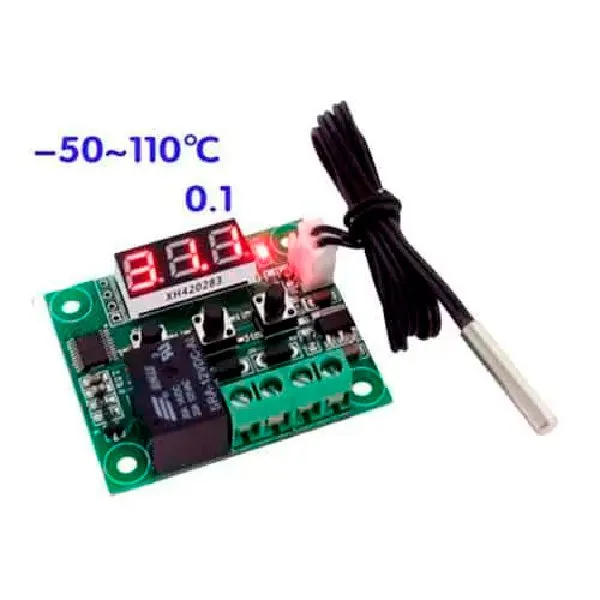

Mini Thermostat -50°C to +110°C with probe and relay

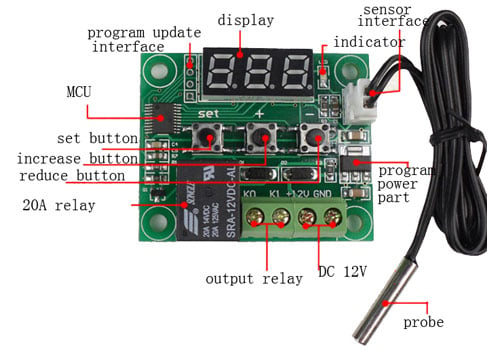

Compact digital thermostat, complete with waterproof temperature probe, 10 A relay, 3-digit LED display and 3 selection buttons
SKU 2846-MINITERMOSTATOEAN 8219671074438Item type: AssembledTimers & thermostats
Description
 |
| Compact digital thermostat, complete with waterproof temperature probe, 10 A relay, 3-digit LED display and 3 selection buttons. The temperature range runs from -50°C to +110°C, with a resolution of 0.1°C (for temperatures below, from -9.9°C to +99.9°C / 1°C over the rest of the range), and a protection temperature can be set from 0°C to +110°C. Power supply: 12 Vdc. |
|
Technical specifications
|
|
Technical details
| Temperature sensor | NTC 10K 0.5% thermistor |
|---|---|
| Accuracy | 0.1°C |
| Refresh rate | 0.5 seconds |
| Power supply | 12 Vdc |
| Consumption | 35 mA (60 mA with the relay energised) |
| Output | 10 A relay (Normally Open contact) |
| Operating temperature | -10°C +60°C |
| Humidity | 20%~85% |

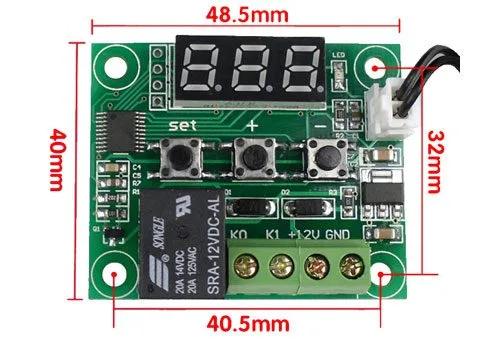

| Size (mm) | 48x40x17 |
| Probe cable length | about 50 cm |
