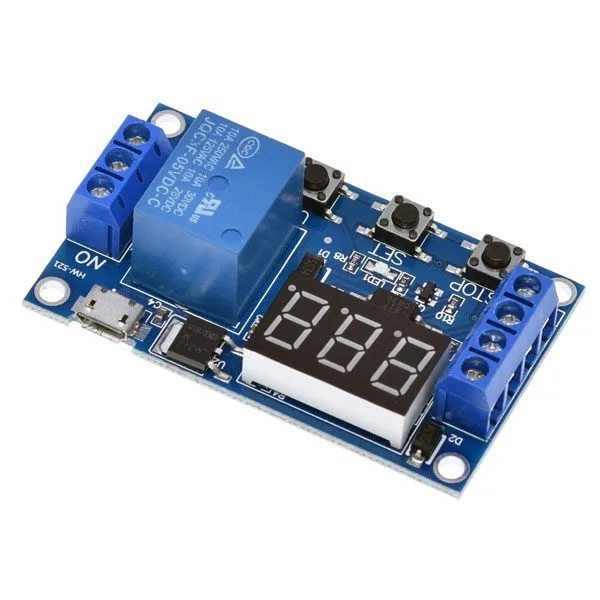

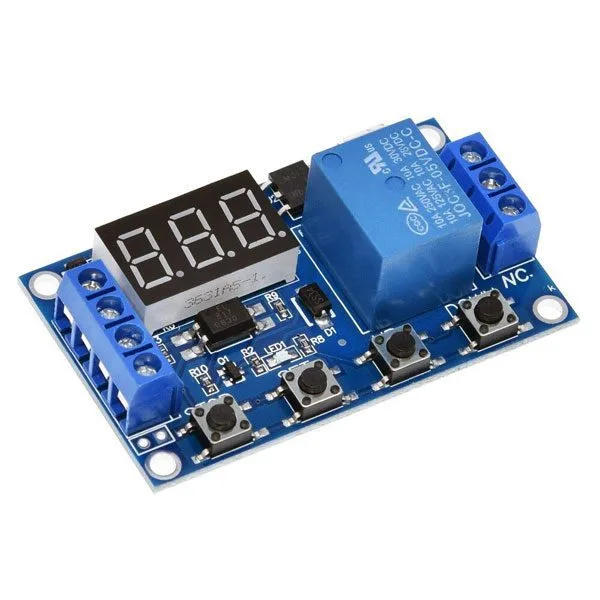

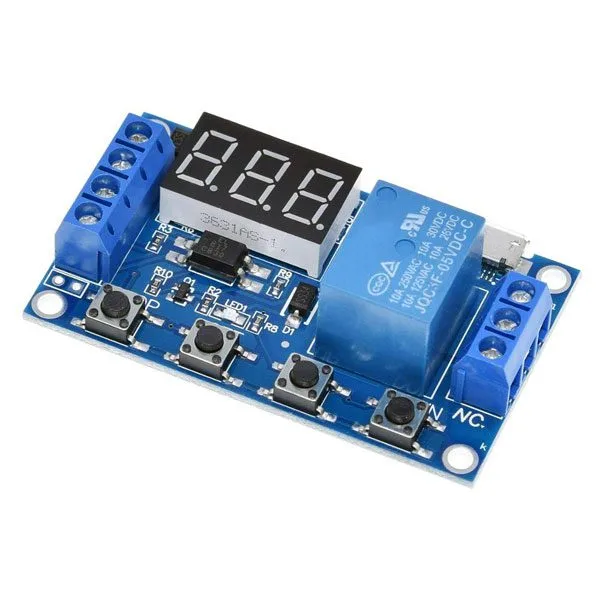

Timer from 0.1 second to 999 minutes with trigger and micro USB – assembled

The package includes: the multifunction Timer and the instructions.

• Operating modes:
  – P1.1: in this operating mode, when the trigger signal is provided, the relay activates (if it has been set to “ON”) and the countdown starts; at the end of the time the relay deactivates. Providing the trigger signal again restarts the countdown.
  – P1.2: when the trigger signal is provided, the time countdown starts; if the trigger signal is provided again, the countdown stops, the relay stays active (if it has been set to “ON”) and the countdown restarts from zero.
  – P1.3: when the trigger signal is provided, the time countdown starts; if the trigger signal is provided again, the countdown stops, the relay deactivates (if it has been set to “ON”), and the countdown restarts from zero.
  – P-2: when the trigger signal is provided, the relay is inactive (time set in “CL”); the countdown starts, and when the time expires the relay activates (if it has been set to “ON”) for the time set in “OP”; once this time also expires, the relay deactivates.
  – P3.1: when the trigger signal is provided the relay is activated (if it has been set to “ON”), the countdown set in “OP” starts; at the end of the time the relay deactivates and the countdown set for “CL” starts. The cycle is repeated for the number of times set in “LOP”.
  – P3.2:  it is activated without the trigger signal: once the settings are complete and the “SET” button is pressed and held, the timer starts automatically.
  – P-4: similar to the “P1.1” function, with the only exception that if another trigger signal is provided during the countdown, the relay stays activated while the countdown restarts from zero.
