Driver for 1W/3W LEDs

Can power up to four 1 W LEDs or two 3 W LEDs

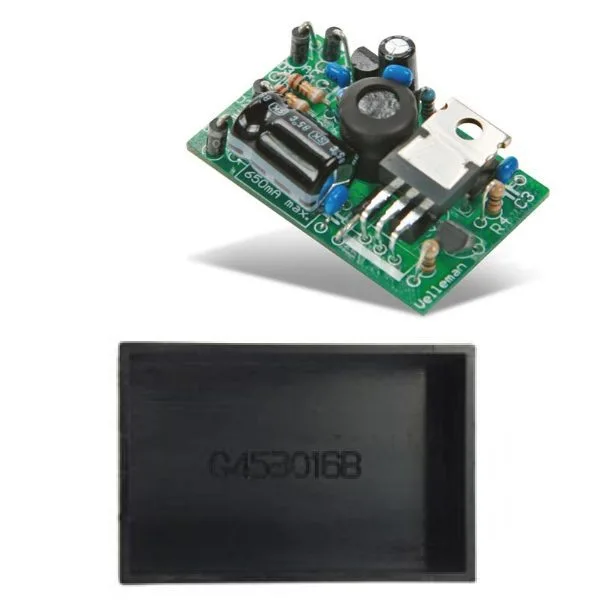

Driver for 1W/3W LEDs - Image 1

SKU 8220-K8071EAN 5410329363147Output voltage: Automatically adjustedItem type: Kit

Description

Powers up to four 1 W LEDs or two 3 W LEDs. Plastic enclosure included.

Features

  • The device can supply the constant current required by most power LEDs
  • High efficiency thanks to the “switching” operating principle
  • Integrated rectifier for use with alternating voltages
  • Compact dimensions
  • Short-circuit protection
  • No heat sink required
  • Suitable for use as a constant-current battery charger for NiCd/NiMH cells
  • For home, office, disco, stage, training courses, architectural lighting, science projects, etc.

Technical details

Constant output current 350 mA or 700 mA
Input voltage 6...12 Vac / 9-18 Vdc
Consumption 650 mA max
Dimensions 45x30x16 mm / 1.8x1.2x0.64"
