DUAL-FREQUENCY TRANSMITTER 434/868 MHZ

The TX-FM 434/868 is a digital data transmission module operating simultaneously

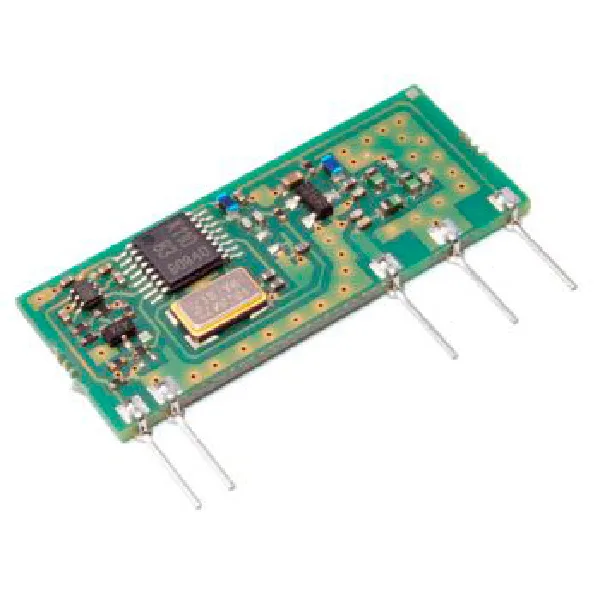

DUAL-FREQUENCY TRANSMITTER 434/868 MHZ - Image 1

SKU 8110-TXFM434/868EAN 8219671051613Item type: Assembled

Description

The TX-FM 434/868 is a digital data transmission module operating simultaneously at 434 and 868 MHz, with FSK modulation and an external antenna for Low Power Device applications. Pin-to-pin compatible with AUREL TX-SAW s/Z modules (5V version).

Technical Specifications

  • Dimensions: 33 mm x 14 mm x 2.5 mm

Technical details

Modulation FSK
Supply voltage 3 V
Current consumption 38 mA
Current consumption (stand-by) <1 μA
Carrier frequency 1 434.15 MHz
Frequency deviation 1 20 kHz
Carrier frequency 2 868.30 MHz
Frequency deviation 2 40 kHz
RF output power 8 dBm
RF output impedance 50 ohm
Modulation frequency 5 kHz
Input logic level 0 V
Power-up time 2.6 ms
Operating temperature -20°C to +80°C
