Electronic component tester
SKU 2860-JT-LCRT7EAN 4250236820323Brand: Joy-ItProduct type: Component & LED testersSpecial test instruments
Description

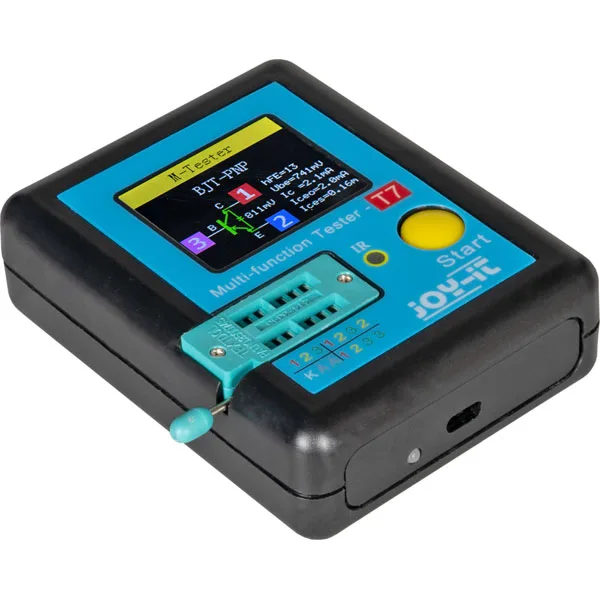

Tester for electronic components with a 3.5″ color LCD display, infrared receiver, and built-in rechargeable 3.7 V 350 mAh battery. It can measure diodes, zener diodes, resistors, capacitors, the ESR (Equivalent Series Resistance) of a capacitor, inductors, thyristors, triacs, FETs, bipolar transistors (indicating whether NPN or PNP), and batteries (max. 4.5 V). It also works with polarized and non-polarized electrolytic capacitors in both orientations. Thanks to the built-in infrared receiver, infrared signals can also be decoded and displayed on the screen, both as waveforms and hexadecimal codes. Measurements start automatically by simply pressing a button.
The package includes: the tester, USB to micro-USB cable, test clips, an LED, a capacitor, and an English manual.
Documentation and useful links
Technical details
| Display | 3.5" color LCD (160x128 pixels) |
|---|---|
| Capacitance | 25 pF - 100 mF |
| Resistance | 0.01 Ω - 50 MΩ |
| Inductance | 0.01 mH - 20 H |
| Battery | 0.1 - 4.5 V, 300 mAh |
| Auto power-off | Yes |
| Power supply | built-in rechargeable 3.7 V 350 mAh battery |
| Dimensions (mm) | 90x70x27 |
| Weight | 95 g |
