Encapsulated PCB Transformer 6 VA, 230 / 12 V

Encapsulated PCB-mount transformer rated at 6 VA, delivering an output of 12 V / 0.5 A.

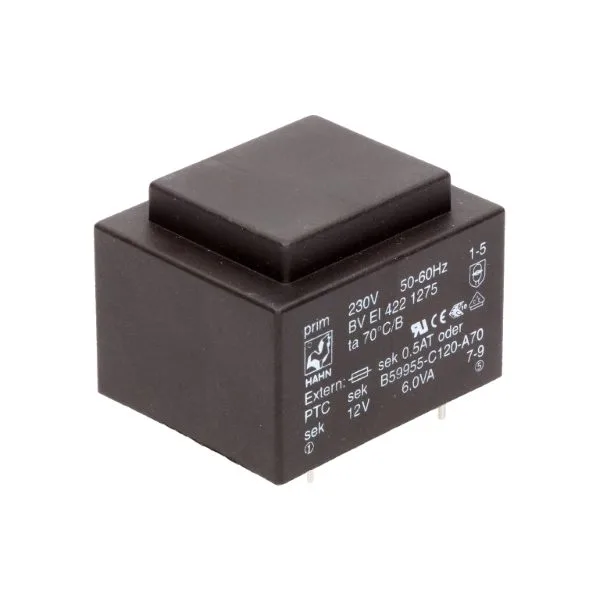

Encapsulated PCB Transformer 6 VA, 230 / 12 V - Image 1

SKU 6155-TR12VA6EAN 8219671105118Item type: Assembled

Description

Resin-encapsulated PCB-mount transformer with 6 VA power rating, providing an output voltage of 12 V / 0.5 A.

Mechanical Characteristics

Technical details

Input voltage 230 VAC
Output voltage 12 VAC
Output current 500 mA
Rated power 6 VA
Transformer type encapsulated
Mounting PCB
Weight 200 grams
Dimensions 44.3 x 37.2 x 32.3 mm
Thermal class Ta70C/B
Compliant with PN-EN 61558-2-6:2000, UL 5085-1, UL 5085-3
