Toroidal transformer 300VA 2x35V

300VA toroidal transformer with two 35V AC outputs, designed to deliver stable, efficient power with low electromagnetic noise.

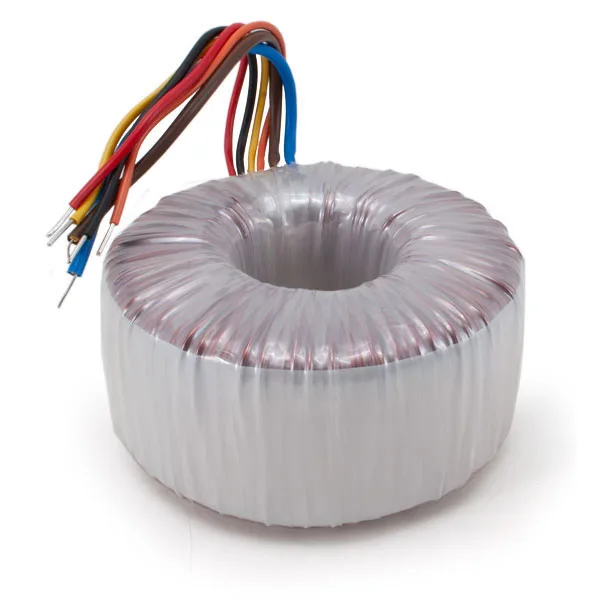

Toroidal transformer 300VA 2x35V - Image 1

SKU 8220-30035EAN 5410329302375Item type: Assembled

Description

Toroidal transformer designed to deliver 35Vac on two secondary outputs. With a maximum rating of 300VA, this transformer handles moderate loads efficiently. Its toroidal construction cuts energy losses and electromagnetic noise, which makes it particularly suitable for applications that call for a stable supply free from interference
Technical specifications
  • Certification: EN61558, EN60065 and Directive 2014/35/EU
    Supplied with a mounting kit (1 metal disc, 2 neoprene washers)

Technical details

Transformer type toroidal
Power 300VA
Primary voltage 230Vac
Secondary voltage 1 35V
Secondary voltage 2 35V
Secondary winding 1 current 4.286A
Secondary winding 2 current 4.286A
Connections flying leads
Metal mounting disc Ø 90 mm
Neoprene insulating washer Ø 90 mm
Cables 150 mm PVC, 10 mm tinned stripped ends
Diameter 118mm
Height 60mm
Weight 2.4 kg
