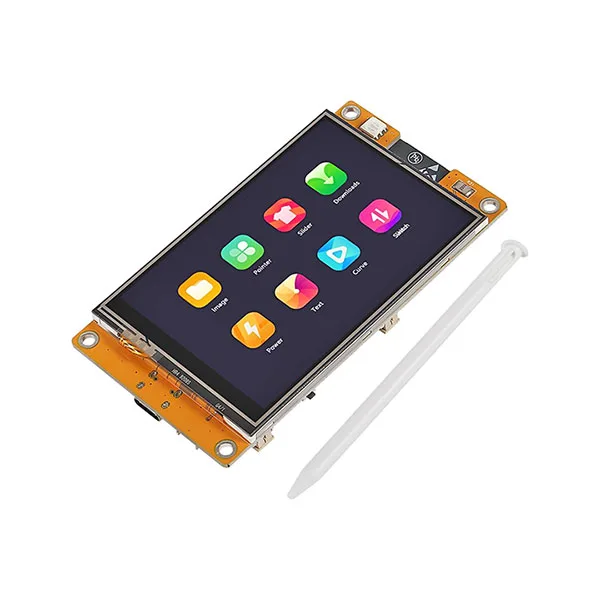

ESP32 Module with 2.8″ TFT Touch Display

Description

Development module based on the ESP32-WROOM-32, with a dual-core microcontroller and built-in Wi-Fi 802.11 b/g/n and Bluetooth 4.2 connectivity.

It features a 2.8″ colour TFT touch display, well suited to building compact graphical interfaces for embedded projects, home automation and monitoring systems.

The board includes a MicroSD (TF card) slot for storing data and content, plus GPIO pins and UART, I2C and SPI interfaces for expansion with external sensors and modules.

Programming is done over USB with a built-in serial converter, with support for Arduino IDE, ESP-IDF and MicroPython.

Technical specifications

• Dimensions: 2.8″, 86 × 50 mm

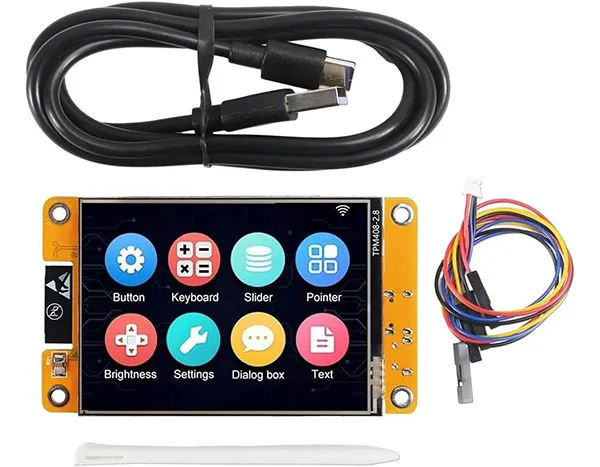

The 2.8″ ESP32 TFT module with its accessories

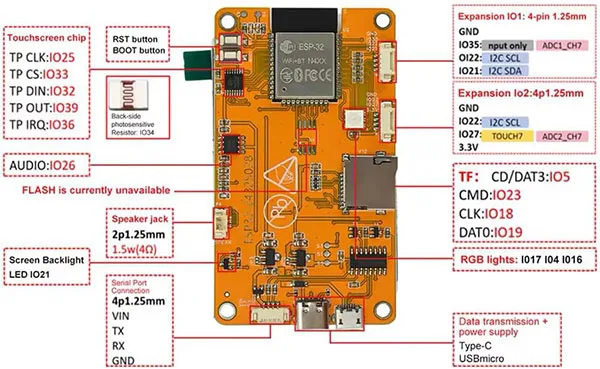

Main components and connections

The board supports several programming environments:

• Arduino IDE: a widely used development environment, with many libraries and community support for ESP32 development.
• ESP-IDF (Espressif IoT Development Framework): Espressif’s official framework for advanced ESP32 development.
• MicroPython: allows programming in Python, making embedded application development simpler.
• Mixly: a Blockly-based visual programming environment, suited to teaching and to block-based development.
