ESP32 Module with 3.5″ TFT Touch Display

Development board based on ESP32 with a 3.5" TFT touch display, Wi-Fi/Bluetooth connectivity and a MicroSD slot, for embedded and IoT applications.

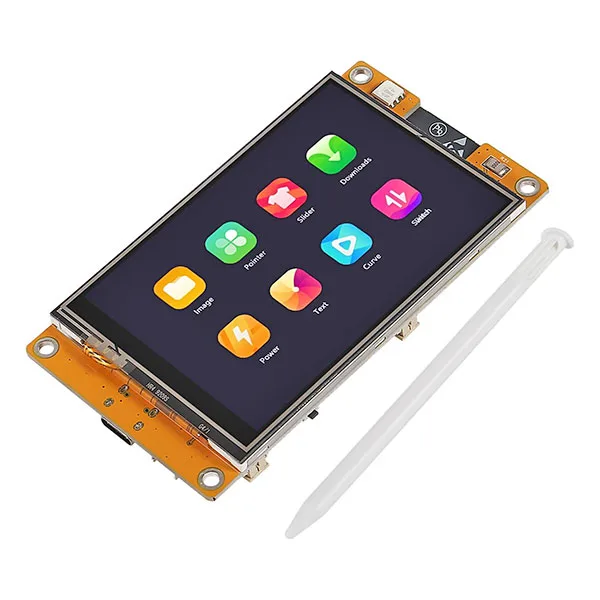

ESP32 Module with 3.5" TFT Touch Display - Image 1

SKU 1606-ESP32TFT35EAN 5410329557812

Description

Development board based on the ESP32 Dual Core ESP-WROOM-32 with built-in Wi-Fi 802.11 b/g/n and Bluetooth 4.2 (BR/EDR and BLE) connectivity.

It features a 3.5″ resistive touch TFT display with a dedicated controller and support for the main graphics libraries, including LVGL and TFT_eSPI, for building user interfaces and control panels.

The board has a MicroSD slot for storing data, images and fonts, connectors for I2C and UART peripherals and dedicated pads for powering it from a lithium battery.

Programming is done through the USB-C port with a built-in CH340 USB-UART converter and an auto-reset circuit compatible with Arduino IDE, ESP-IDF and PlatformIO.

Technical specifications

  • Size: 3.5″, 101 × 55 mm

Product overview

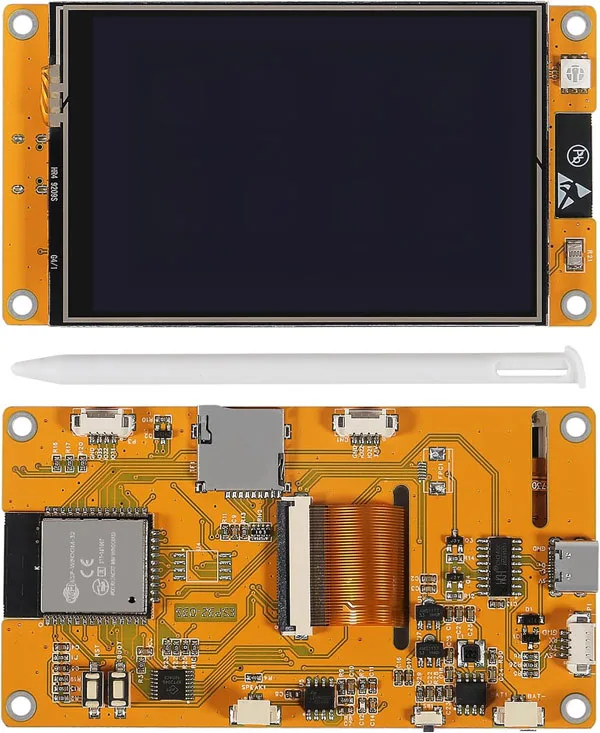

Front and rear view of the ESP32TFT35 module
Front and rear view of the module

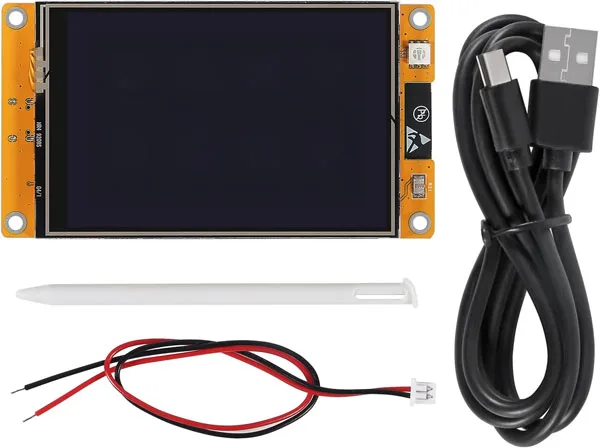

The 3.5″ ESP32 TFT module with its accessories

The 3.5" ESP32 TFT module complete with accessories

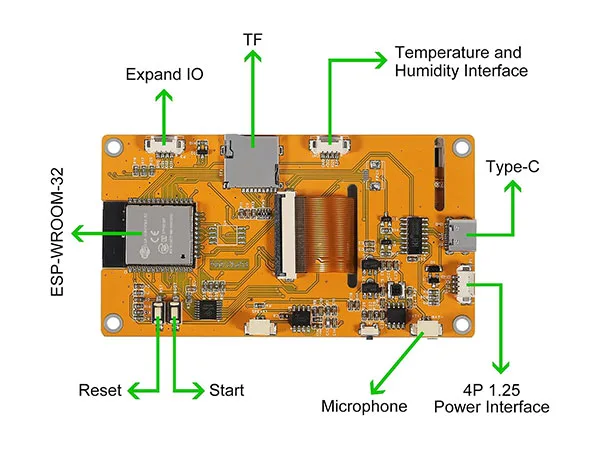

Main components and connections

The main components on the back of the display include the ESP-WROOM-32 module, the TF (MicroSD) card slot, the I/O expansion, the interface for temperature and humidity sensors, the Type-C port, the 4P 1.25 mm power connector, the microphone, the reset button and the BOOT/START button.

The board supports several programming environments:

  • Arduino IDE: a widely used development environment, with plenty of libraries and community support for ESP32 development.
  • ESP-IDF (Espressif IoT Development Framework): Espressif’s official framework for advanced ESP32 development.
  • MicroPython: allows programming in Python, simplifying the development of embedded applications.
  • Mixly: a Blockly-based visual programming environment, suited to teaching and block-based development.

Technical details

Display 3.5" TFT LCD, 320×480, 65K colours
Touch resistive
Controller ESP32-WROOM-32
CPU Dual-core Xtensa LX6 up to 240 MHz
RAM 520KB SRAM
ROM 448KB
Flash 4MB
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2
External memory MicroSD slot (TF card, SPI), max 32GB
Interfaces UART, I2C, SPI, GPIO
Power supply 5V via USB Type-C
Programming USB-C with built-in CH340 USB-UART converter
Expansion 4P 1.25 mm connector, I/O pins available
Software compatibility Arduino IDE, ESP-IDF, MicroPython
