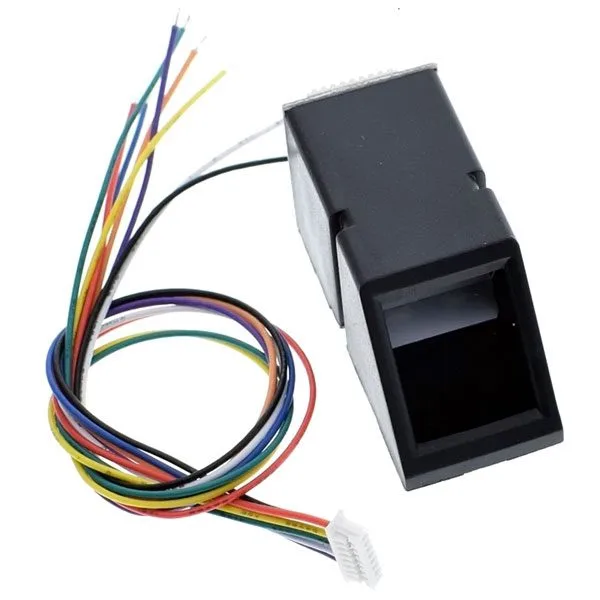

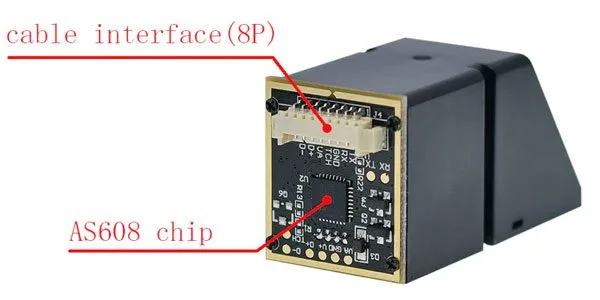

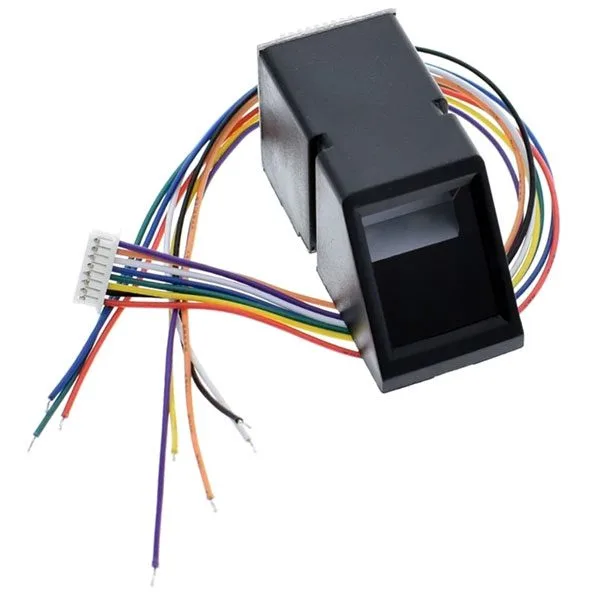

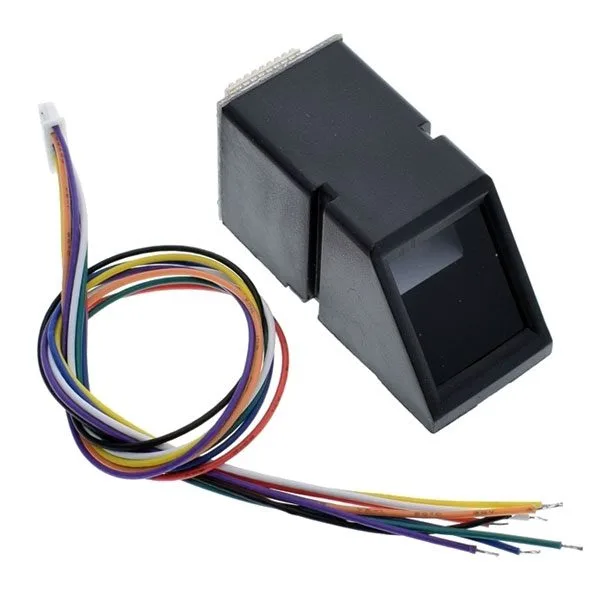

Fingerprint reader with AS608 chip

Description

Optical fingerprint reader featuring a high-speed DSP processor, high-performance recognition algorithm, Flash memory, and TTL serial interface for direct connection to microcontrollers or to a PC via a USB-serial adapter. The user can store fingerprint data (up to 162) in the module and can configure 1:1 or 1:N mode (see below for details) to identify people. Particularly suitable for access control, relay activation, automatic door opening, etc.

1:1 and 1:N Modes

In 1:1 mode, the fingerprint of the finger placed on the sensor window is compared against a specific fingerprint, while in 1:N mode it is compared against all stored fingerprints. So in the first, you compare your finger against a specific fingerprint. In the second, you compare against the entire database of stored ones.

Technical Specifications

• False Acceptance Rate (unauthorized users but rejected by error): <0.0001% (Security level 3)
• False Rejection Rate (unauthorized users but accepted by error): <1.0% (Security level 3)
• Operating temperature: from -20°C to +50°C
• Humidity: 40%-85% RH
• Dimensions (mm): 45×23.5×20.5
• Weight: 17 grams
