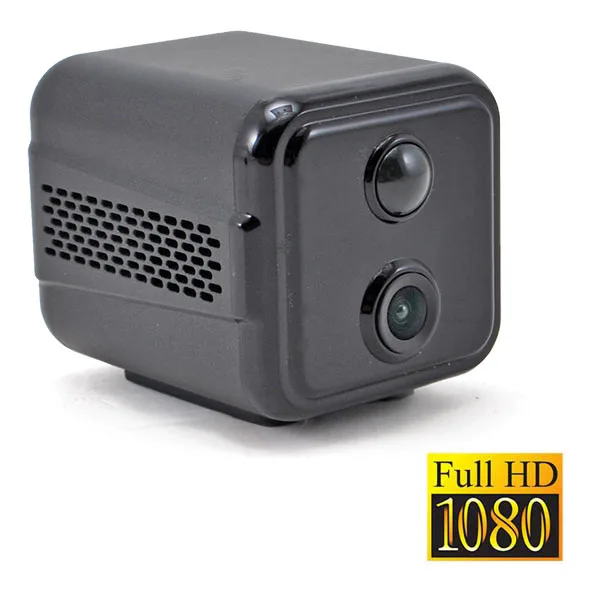

Full HD Wi-Fi Mini Camera with PIR Detection and Night Vision – Long-Life Battery

Compact, discreet Full HD Wi-Fi mini camera with PIR motion detection, night vision and two-way audio. Controlled remotely from the app, it records to MicroSD or to the cloud. Long-life battery lasting up to 70 days in standby. Easy to fit thanks to the magnetic mount.

SKU 8100-FR841EAN 8219671107037Features: Action camera, Built-in battery, microSD slot, MiniatureColour: BlackFormat: Covert (spy)Material: PlasticResolution: 2 MpxConnection type: Wi-Fi

Description

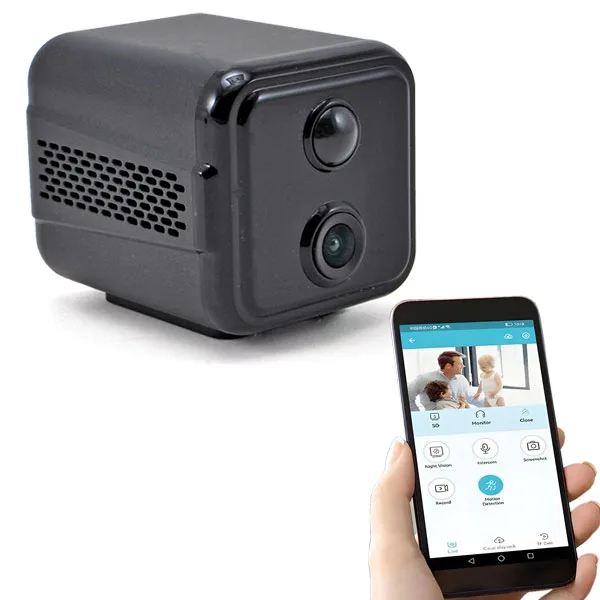

Compact, discreet mini camera, ideal for keeping an eye on your home or office. Once connected to the Wi-Fi network, it lets you control it remotely and watch live video straight from your smartphone (through a free app), wherever you are.

Thanks to the built-in PIR sensor, the camera picks up movement accurately and sends instant notifications.
Recordings, saved to a MicroSD card or to the cloud (paid service), can be set from the app to clips of 5, 10, 15 or 30 seconds.
Once the set time has elapsed, recording stops and starts again automatically as soon as new movement is detected, which saves both storage space and battery life.

On a single charge, the built-in 2800 mAh battery gives up to 9–10 hours of continuous recording or up to 70 days in standby mode with detection active.

Infrared night vision lets it record in the dark too, up to 6–8 metres away, while two-way audio with built-in microphone and speaker lets you talk to whoever is in the area being watched.

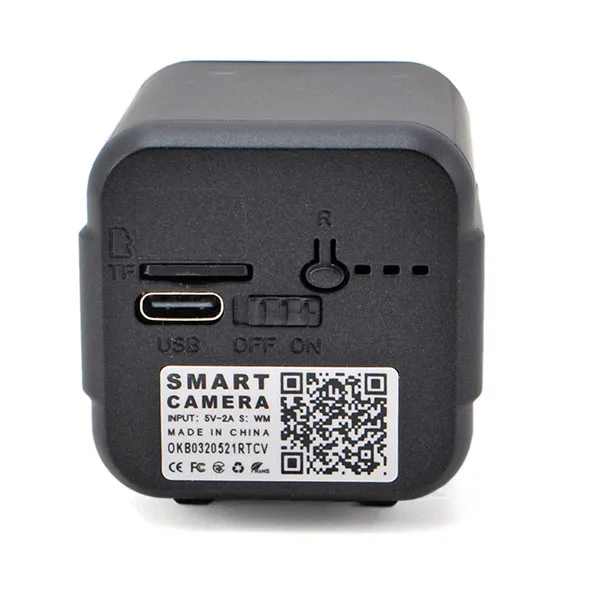

The camera takes MicroSD cards up to 128 GB and can also store to the cloud (paid) with loop recording, which overwrites the oldest files automatically.

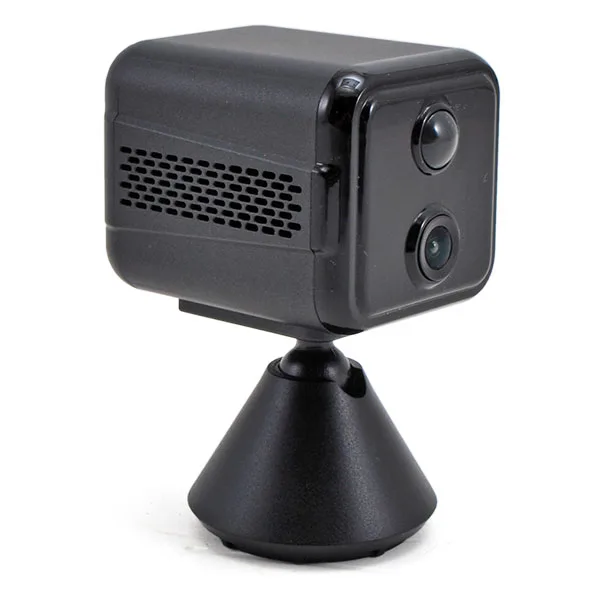

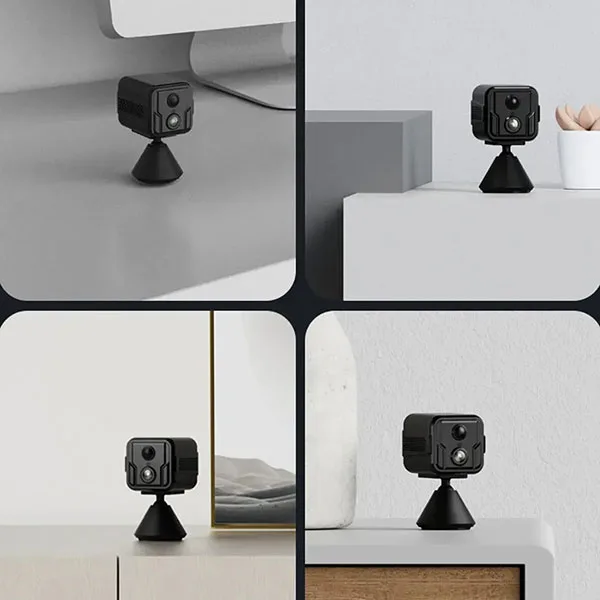

It comes with a bracket with magnetic mount, for quick, flexible fitting on metal surfaces or screwed to a wall.

Instructions.

Specifications
  • Battery life with PIR: up to 70–75 days (2 detections a day) / 15-20 days (100 detections a day recording 30s each)
  • Operating temperature: –10 °C ~ +50 °C

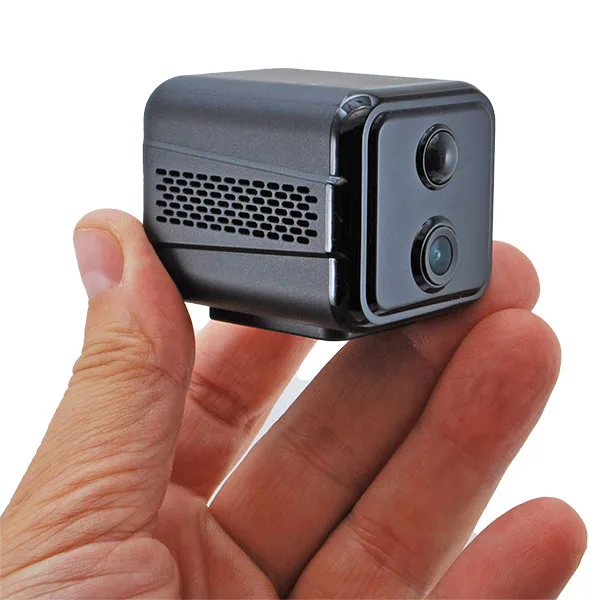

  • Dimensions: 4 × 4 × 5 cm (bracket not included)
  • Camera + bracket weight: 100 grams

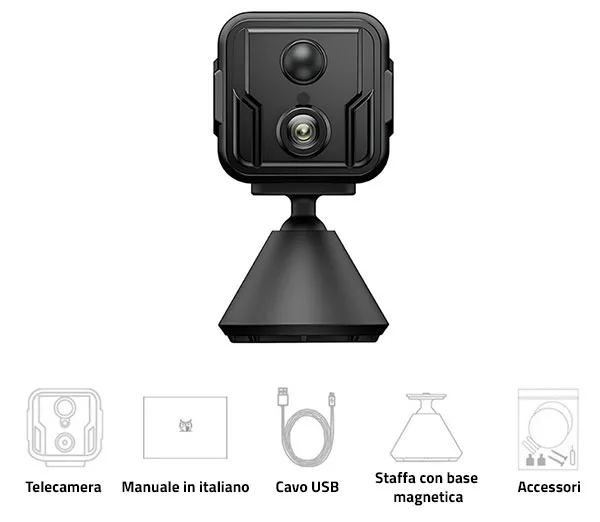

What is in the box
Camsoy T9W5 mini Wi-Fi camera with PIR sensor and Full HD night vision

Technical details

Type Wi-Fi camera
Wireless connection Wi-Fi 2.4 GHz
Image sensor CMOS, 2 MP
Video resolution Full HD 1080P (H.264 / H.264+)
Field of view up to 140°
Audio two-way (microphone + speaker)
Night vision 6–8 m with IR LEDs
Motion sensor PIR (up to 10 m)
MicroSD recording length 5, 10, 15 or 30 seconds, set from the app
Battery 2800 mAh
Continuous recording time 9–10 hours
Standby up to 230 days
Memory support MicroSD up to 128 GB (not included)
App O-Kam
