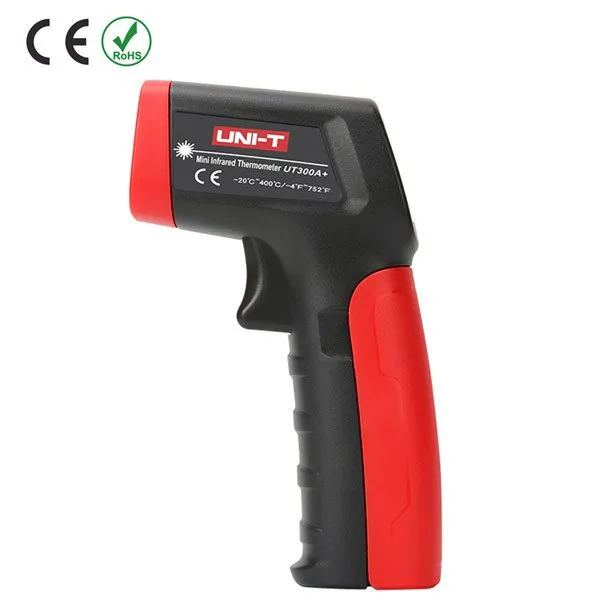

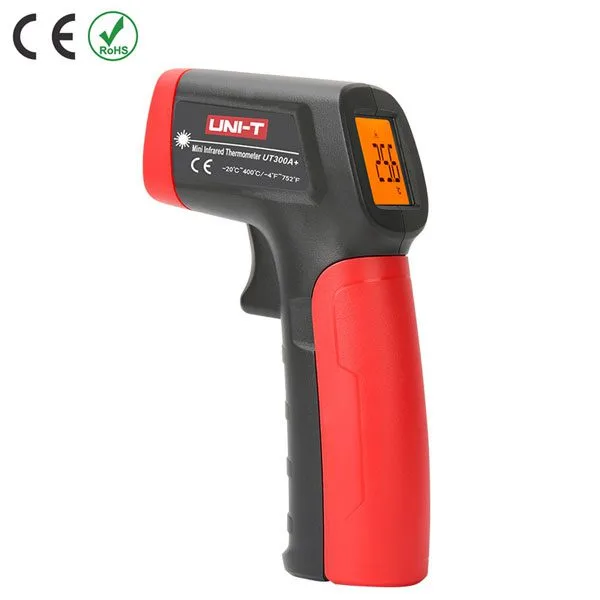

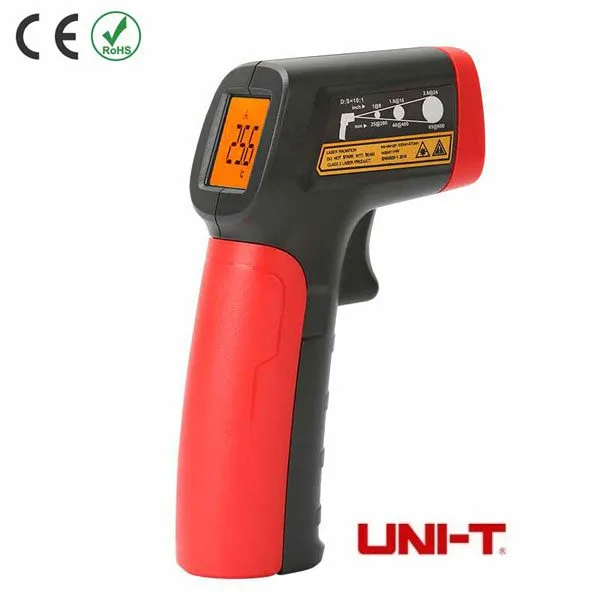

Infrared Thermometer with LASER Pointer (-20°C to +400°C)

UNI-T infrared thermometer with LASER pointer for measuring temperature at a distance (-20°C to +400°C)

SKU 8240-TP213NEAN 6935750563014Brand: UNI-TProduct type: Thermal imaging & temperature

Description

UNI-T infrared thermometer with LASER pointer for non-contact temperature measurement (from -20°C to +400°C). It features a backlit LCD display, selectable readings in Celsius or Fahrenheit, and automatic shutdown. Temperature readings are instantaneous. The package includes: the thermometer, two 1.5-volt AAA batteries, and instructions.

Caratteristiche tecniche

  • Misurazioni veloci tramite pressione del grilletto
  • Puntatore LASER da usare come mirino per la zona di misura
  • Selezione ºC o ºF
  • Display LCD con retroilluminazione
  • Indicazione stato di carica della batteria
  • Spegnimento automatico
  • ATTENZIONE: questo dispositivo contiene un LASER di classe 2 (potenza <1 mW, lunghezza d’onda 630-670 nm). Non fissare il fascio, può causare danni agli occhi.

Specifiche tecniche

  • Precisione (alla temperatura ambiente di 21°C-25°C):
    >0°C: ± 2°C oppure ±2% della lettura
    <0°C: ± (2°C+0,1°C/°C)
  • Dimensioni (mm): 135x94x36
  • Peso: circa 148 grammi

Technical details

The package includes the thermometer, two 1.5-volt AAA batteries, and instructions
Risoluzione 0,1°C /0,1°F
Range di misurazione da -20°C a +400°C (da -4°F a +752°F)
Risposta spettrale 5,5 µm ~ 14 µm
Tempo di risposta < 500 ms
Classe 2
Potenza < 1mW
Lunghezza d'onda 630 nm ~670 nm
Auto spegnimento dopo circa 8 secondi di inutilizzo
Rapporto distanza a spot D/S = 10:1
Alimentazione 2 batterie da 1,5 volt tipo AAA (incluse)
Autonomia batterie > di 20 ore
Temperatura di funzionamento da 0°C a +50°C (32°F~122°F)
Temperatura di stoccaggio da -20°C a +60°C (-4°F ~ 140°F)
