SKU 6090-HIKMINIXEAN 8219671104647Brand: HikMicroProduct type: Thermal imaging & temperature,

Description

HikMicro MiniX: compact wireless thermal camera with a resolution of 256x192 px, dual optics (0.3 MP) and manual focus (from 5 cm). Measures up to 550°C, supports the SuperIR and Fusion technologies, and is ideal for HVAC, electrical and building inspections with Wi-Fi connectivity for iOS and Android.

The HikMicro MiniX redefines portable thermography thanks to its exclusive wireless connection. Unlike traditional models, the MiniX connects via Wi-Fi to your smartphone or tablet (iOS and Android), letting you operate it one-handed using the included mounts or set the camera on a tripod for long-term monitoring.

Dual-Lens Vision and Superior Detail

Featuring a high-resolution thermal sensor of 256×192 pixels and an optical camera of 0.3 MP, the MiniX delivers exceptional image clarity. Thanks to SuperIR technology and the Fusion and PIP viewing modes, visual details are overlaid on thermal ones for immediate problem identification. The manual focus with a minimum distance of just 5 cm ensures sharp images even on very small objects.

Versatility and Ruggedness in Every Scenario

With a wide temperature range from -20°C to 550°C, the MiniX is the ideal tool for building inspections, HVAC maintenance and electrical system analysis. The design is built for fieldwork: IP54 certified against dust and splashes, drop resistance up to 1 metre and a fast-charging battery that reaches 85% in just one hour.

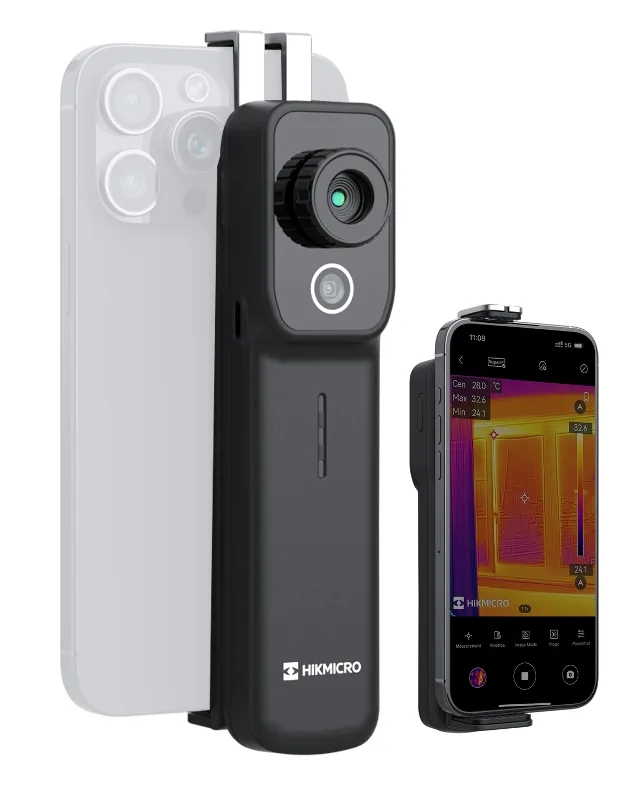

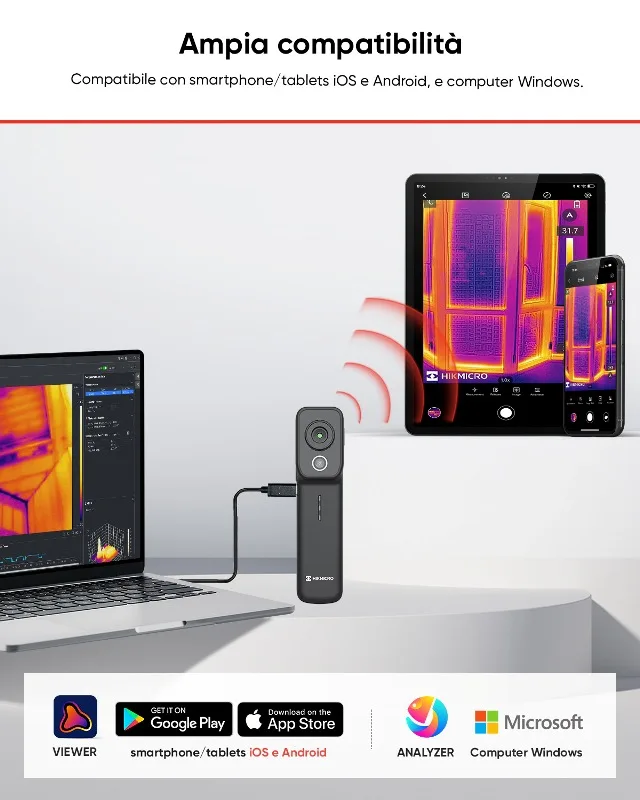

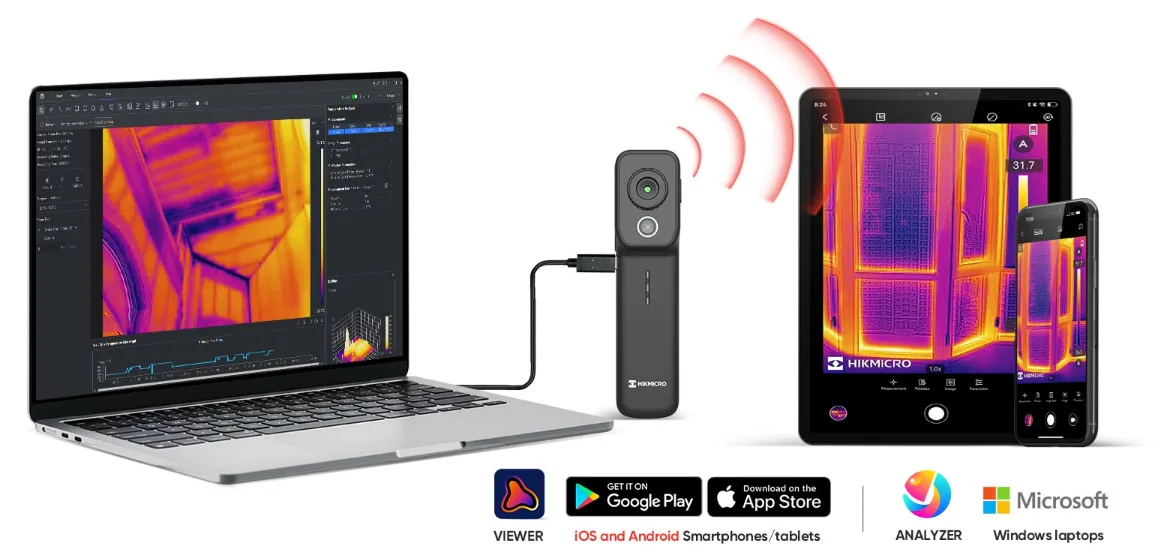

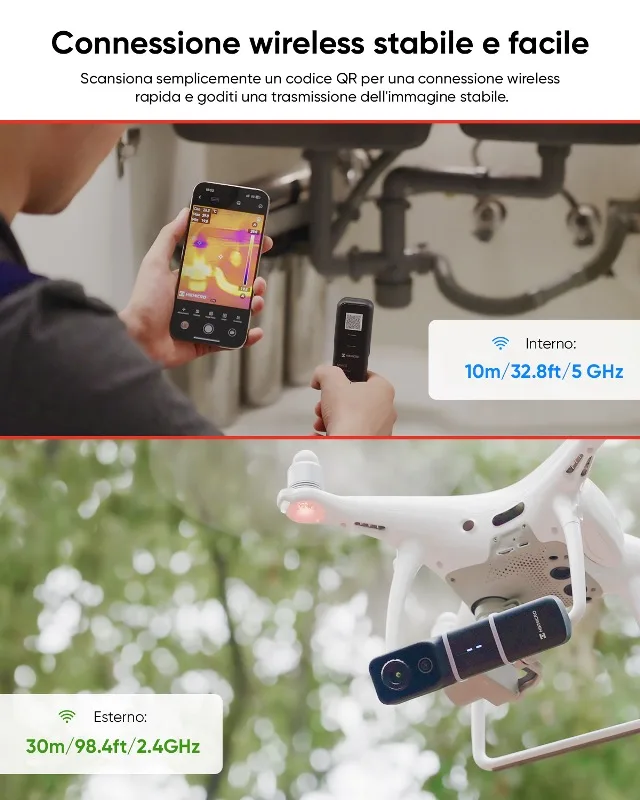

Wi-Fi Connection

The HIKMICRO Mini-X thermal camera connects to Android/iOS devices, so there’s no need to replace it when you change phones.

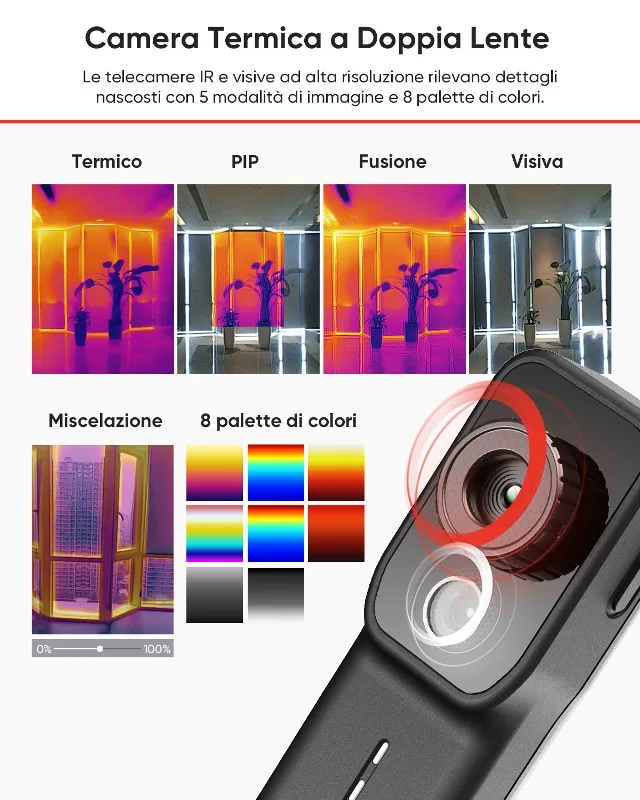

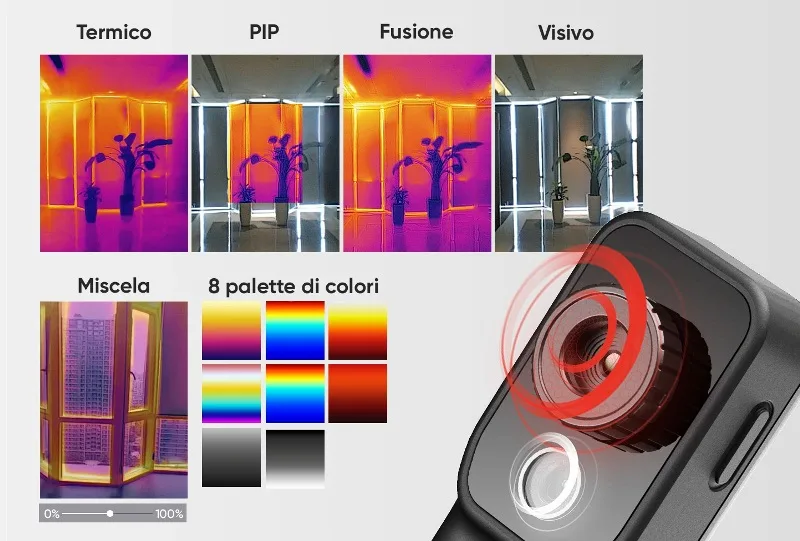

Thermal Imager with Dual Camera

The high-resolution IR and visual cameras reveal hidden details with 5 image modes and 8 colour palettes.

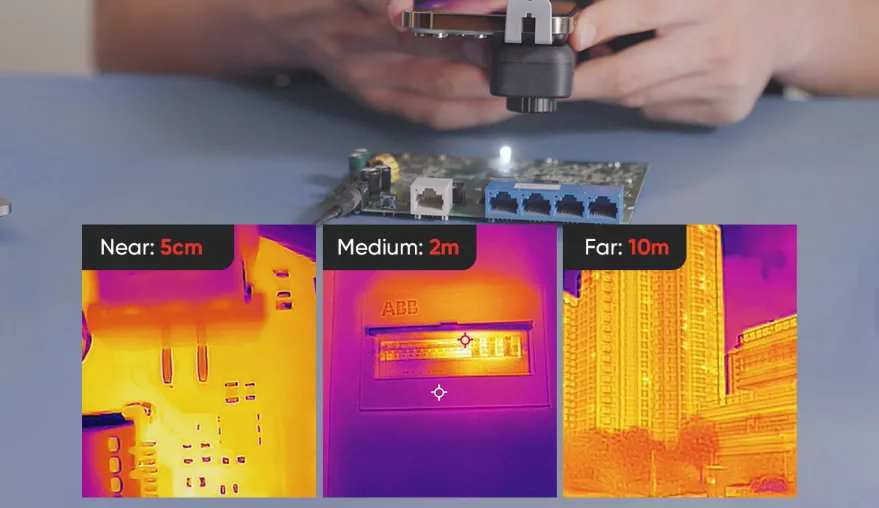

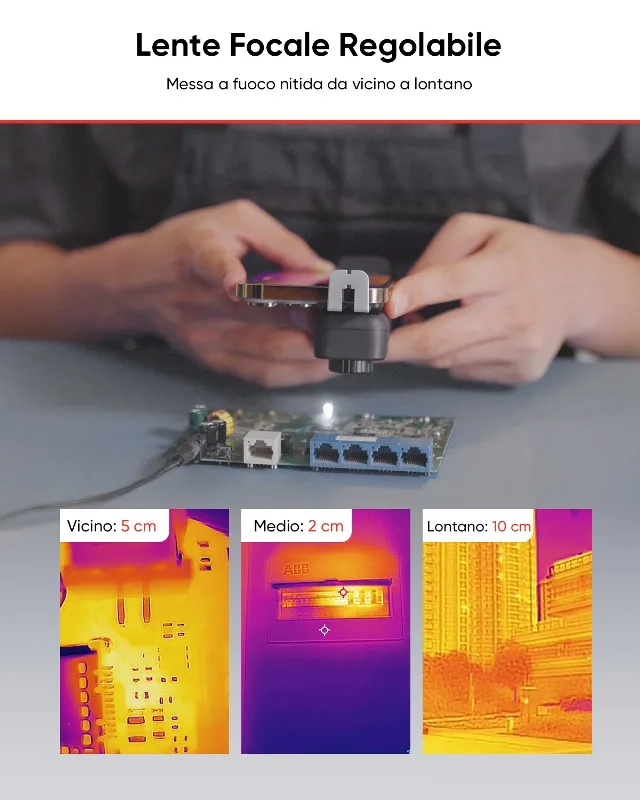

Adjustable Focus Lens

Sharp focus from close-up to far away with an adjustable 3.5 mm focal lens for precise detail in PCB repair, inspections and tracing.

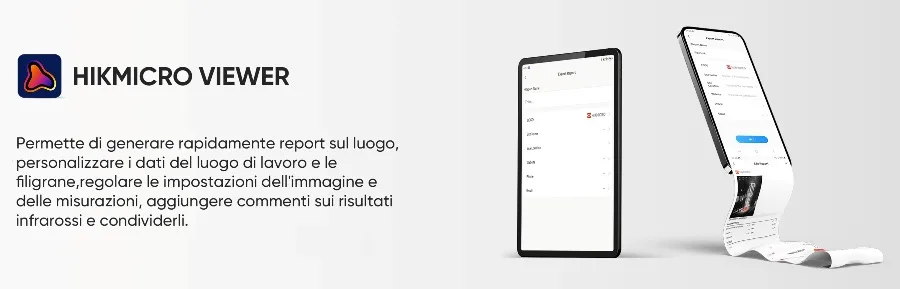

HIKMICRO Viewer

With the HIKMICRO Viewer app, you can quickly generate field reports, customize site data, adjust measurement settings, add annotations, and share them with clients or managers.

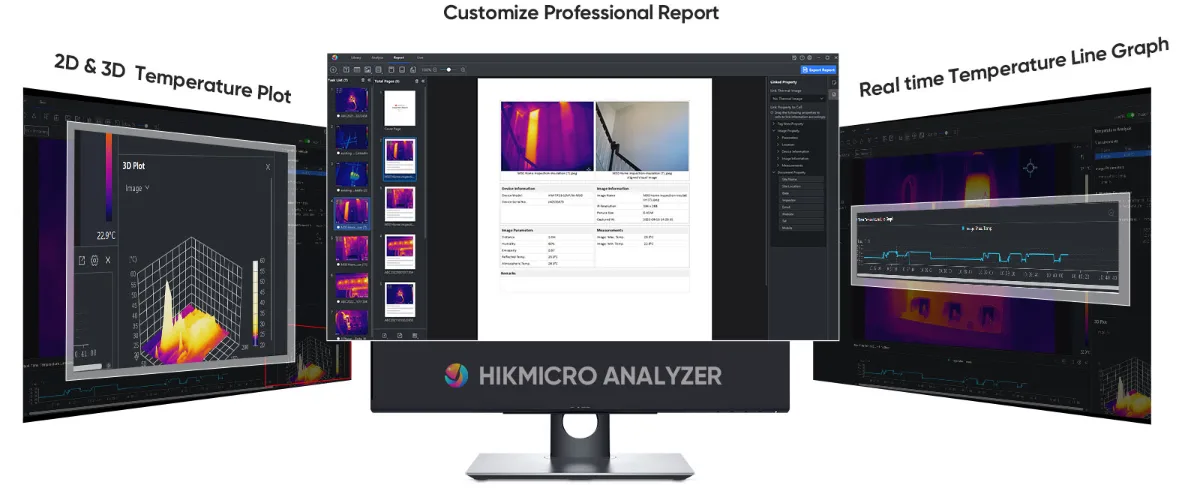

HIKMICRO Analyzer

HIKMICRO ANALYZER
HIKMICRO Analyzer’s online preview feature is especially valuable, as it provides real-time access to thermography data, greatly improving efficiency.
Typical Applications
  • Electrical and Mechanical Maintenance
    Safe monitoring of live or rotating components with no cables in the way. Quick identification of loose connections or worn bearings.
  • Precision Electronics (PCB)
    Thanks to the 5 cm minimum distance, it lets you examine micro-components on PCBs with total clarity. Instantly spot short circuits or components with abnormal current draw.
  • Plumbing and HVAC:
    Locating leaks and checking thermal balance in heating/cooling systems. Fusion mode lets you read labels and markings on system components.
  • Building Diagnostics:
    High sensitivity (NETD < 40 mK) for finding energy losses and hidden water infiltration. Checks correct installation of insulation and windows/doors.
  • Remote Monitoring:
    Thanks to the magnetic mount and Wi-Fi connection, it can be installed to monitor machinery temperature over time. Instant transmission of thermal images to colleagues or clients via smartphone
Package Contents

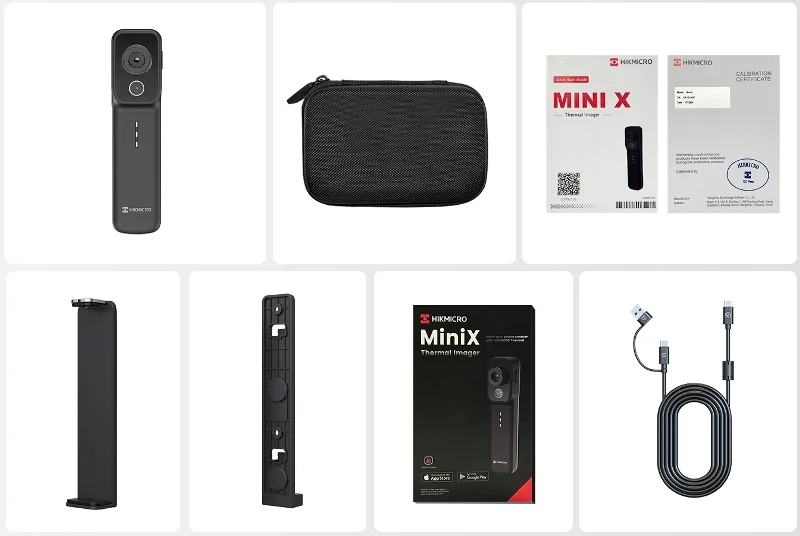

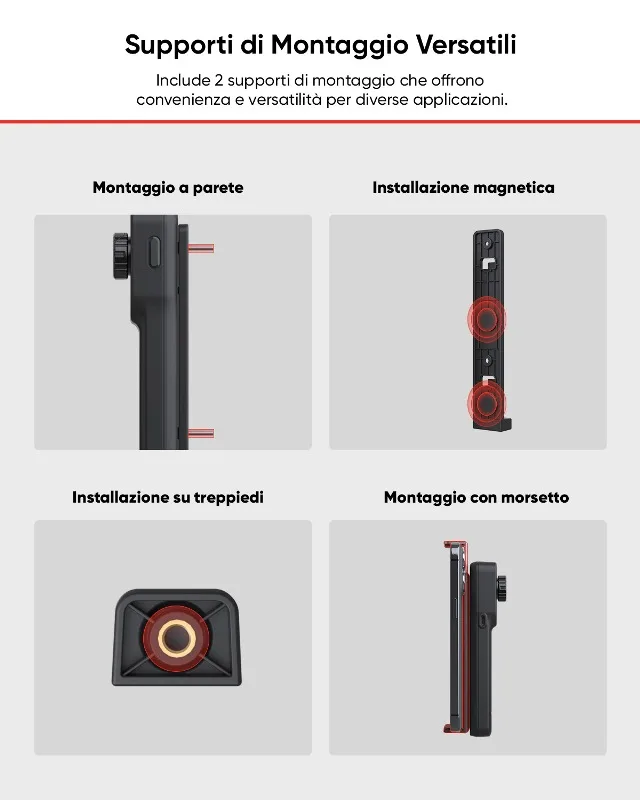

The package includes a carrying case, USB cable, and a mounting bracket for your device (smartphone/tablet) with a magnet and adjustable opening.
Technical Specifications
  • Focus: Manual
Documentation

Technical details

Thermal Resolution 256x192 pixels (49,152 pixels)
Visual Camera 0.3 MP (640x480 pixels)
SuperIR Technology Real-time and saved image enhancement
Connectivity Wireless Wi-Fi (2.4 GHz and 5 GHz) for iOS and Android
Temperature Range -20°C to 550°C
Focus Manual (minimum distance 0.05 m / 5 cm)
Frame Rate 25 Hz for smooth inspections
Thermal Sensitivity (NETD) < 40 mK (@ 25°C)
Battery Life and Charging Approx. 4 hours; charges to 50% in 30 minutes
Protection IP54 and 1 metre drop test
Weight approx. 158 g
Dimensions 156x39x33 mm
