LASER Distance Meter, 20 cm to 30 metres

Compact LASER measuring tape with backlit LCD display
LASER Distance Meter, 20 cm to 30 metres - Image 1

SKU 8100-FR797EAN 8219671113557Brand: VariousProduct type: Distance meters & rangefinders, Wall & pipe detectors

Description

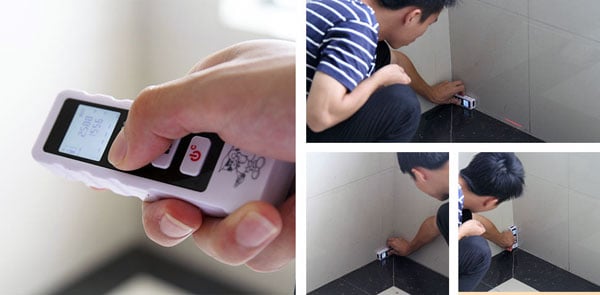

Compact LASER measuring tool with backlit LCD display. It lets you measure extremely easily and quickly: distance (from 20 cm to 30 metres), area and volume, in rooms, buildings under construction, etc. Just press the centre button to select the measurement type (distance, area, volume), take the reading and view it on the LCD display.  It automatically switches off the LASER and the device, and also shows battery charge status.

Technical specifications
  • Measurement type:
    – Distance (from 20 cm to 30 metres)
    – Area
    – Volume
  • LASER:
    – Class 2
  • Unit of measure: metres / feet / inch / feet+inch

Technical details

The package includes The LASER measuring tool, 2 AAA 1.5 volt mini batteries, instructions
Display type Backlit LCD
Accuracy ± 1.5 mm
Power ＜ 1mW
Wavelength 620-680 nm
Test time 0.2-3 seconds
Data memory 20 readings
LASER 30 seconds
Device 2 minutes
Operating temperature 0°C to +40°C
Protection rating IP40
Power supply 2 AAA 1.5 volt mini batteries (included)
Dimensions (mm) 105x34x20
Weight 44 grams
