Magnetic M/F connector, 4 pins at 90 degrees

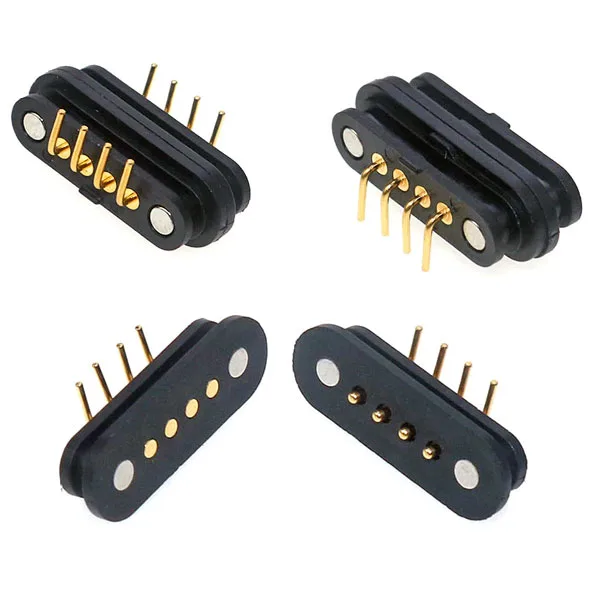

Pair of magnetic connectors (male and female) with 4 pins at 90 degrees and 2.5 mm pitch.

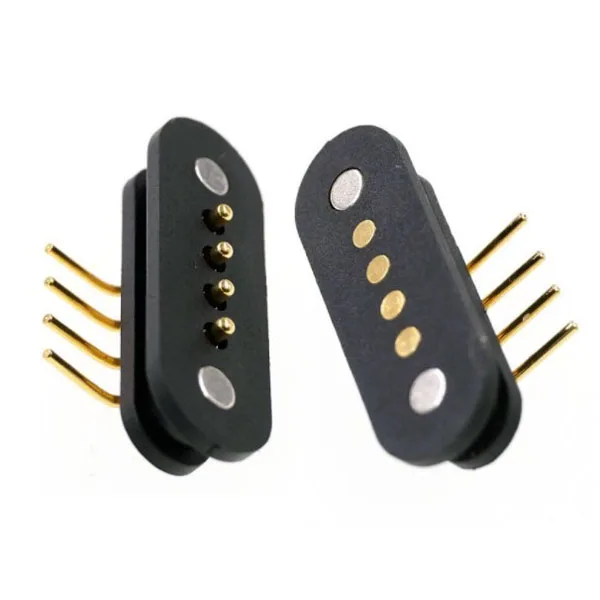

Magnetic M/F connector, 4 pins at 90 degrees - Image 1
Magnetic M/F connector, 4 pins at 90 degrees - Image 3

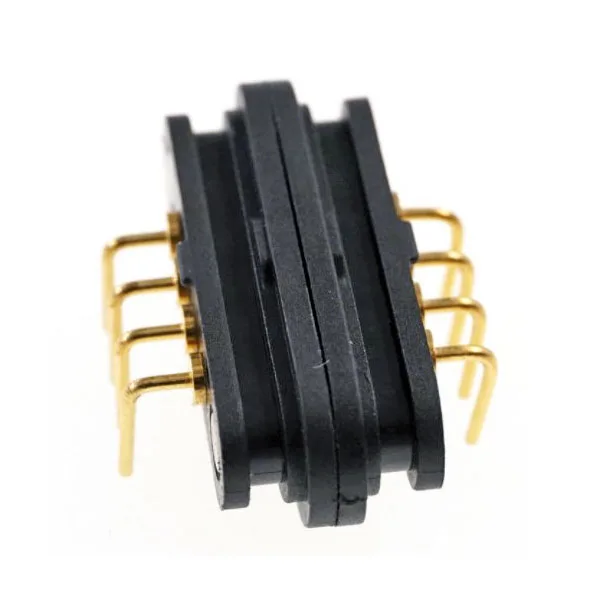

Magnetic M/F connector, 4 pins at 90 degrees - Image 4
Magnetic M/F connector, 4 pins at 90 degrees - Image 5

SKU 2846-4PINMAGMFEAN 8219671064828Item type: Assembled

Description

Pair of PCB-mount connectors (male and female), each fitted with 2 small powerful magnets and 4 pins at 90 degrees with 2.5 mm pitch. When the connectors are brought close together the magnets attract each other, mating the two connectors and giving a reliable contact between the pins. Voltage: max. 36 Vdc, current: 2 A, insulation resistance: 500 Mohm, operating temperature: -30°C to +65°C, dimensions (mm): 21x7x4.

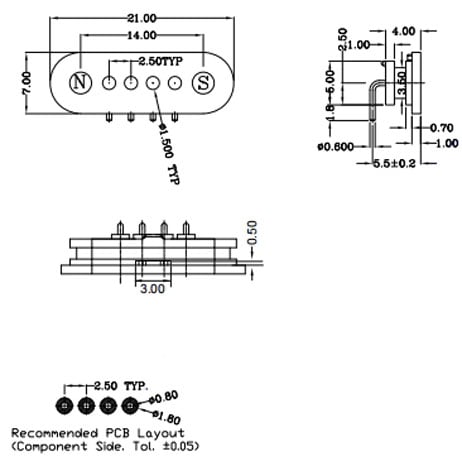

MALE CONNECTOR DIMENSIONS (mm)

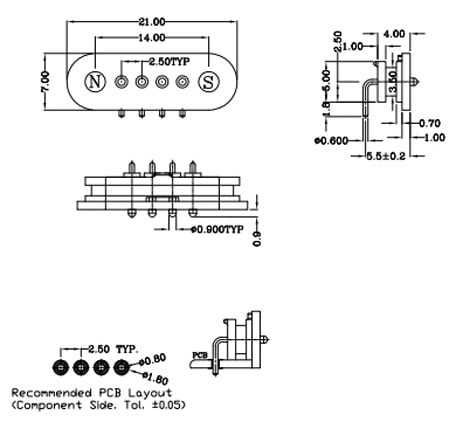

FEMALE CONNECTOR DIMENSIONS (mm)
