MAX232 RS232 driver IC

RS232 DRIVER - Case: DIP16 – Renesas Electronic

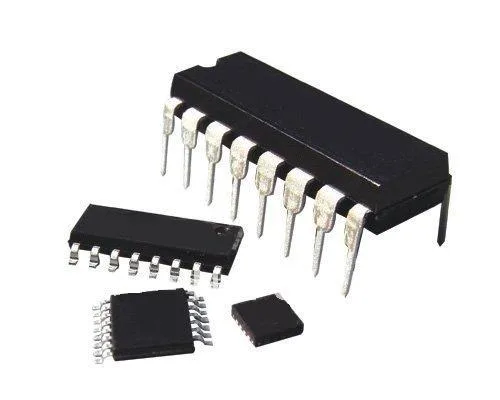

MAX232 RS232 driver IC - Image 1

SKU 1350-MAX232EAN 5410329330590Item type: Assembled

Description

  • Supply voltage – Max.: 5.5 V
  • Supply voltage – Min.: 4.5 V
  • Supply type: Single Supply
  • Brand: Renesas / Intersil
  • Shutdown: Without Shutdown
  • Number of transceivers: 1 Transceiver
  • Operating supply voltage: 5 V
  • Product type: RS-232 Interface IC
  • Supported protocol: RS-232

Technical details

RS232 DRIVER - Case DIP16 – Renesas Electronic
Package PDIP-16
Series HIN232
Function Transceiver
Data rate 120 kb/s
Number of drivers 2 Driver
Number of receivers 2 Receiver
Duplex Full Duplex
Operating supply current 10 mA
Minimum operating temperature - 40 C
Maximum operating temperature + 85 C
ESD protection Without ESD Protection
Output type Single-Ended
Product RS-232 Transceivers
