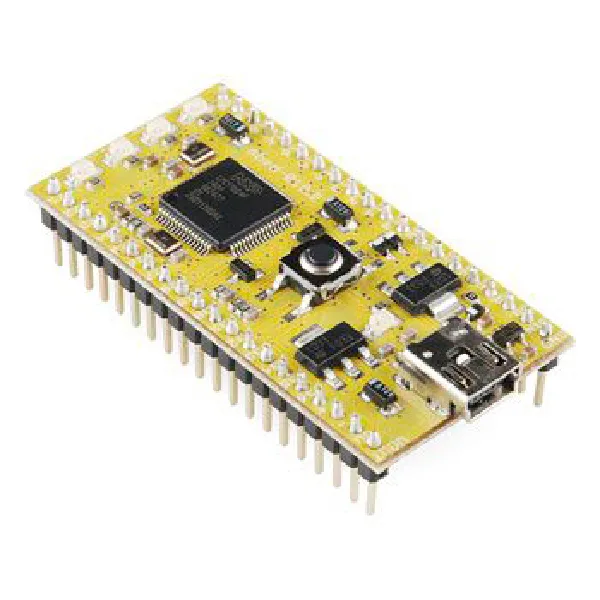

MBED NXP LPC11U24

Description

MBED is a board based on the 32-bit ARM® Cortex™ NXP LPC11U24 microcontroller, designed specifically for low-cost prototyping of USB devices and battery-powered applications. The IDE compiler is online; after registering on the website http://mbed.org, each user can create their own mbed account and have a personal space containing files, folders, and programs. This system allows program development anywhere an Internet connection is available. Mbed offers an accessible solution for creating projects with the support of libraries, resources, and shared community assistance mbed. The package includes: the board with LPC11U24 microcontroller, USB cable, and installation guide. Dimensions: 54 x 26 mm.

After registering on the website http://mbed.org, each user can create their own mbed account and have a personal space containing files, folders, and programs. This system allows program development anywhere an Internet connection is available.

• Processor:
  – ARM® Cortex™-M0 low power
  – 48 MHz
  – 8 kB RAM
  – 32 kB FLASH
• Peripherals:
  – USBDevice
  – 2 x SPI
  – 1 x I²C
  – 6 x AnalogIn
  – 8 x PwmOut
• 40-pin 0.1″ pitch DIP package
• 5V USB, 4.5-9V supply or 2.4-3.3V battery
• Built-in USB drag ‘n’ drop FLASH programmer
• Lightweight Online Compiler
• High level C/C++ SDK
• Cookbook of published libraries and projects
