MCP39F511N – Power Monitor IC

Electric energy meter ( Power Monitor IC ), low-power, ideal for electrical system designers and hardware engineers. With accuracy better than 0.5% across a wide dynamic range, this Power Monitor IC delivers precise measurements of voltage, current, active and reactive power.

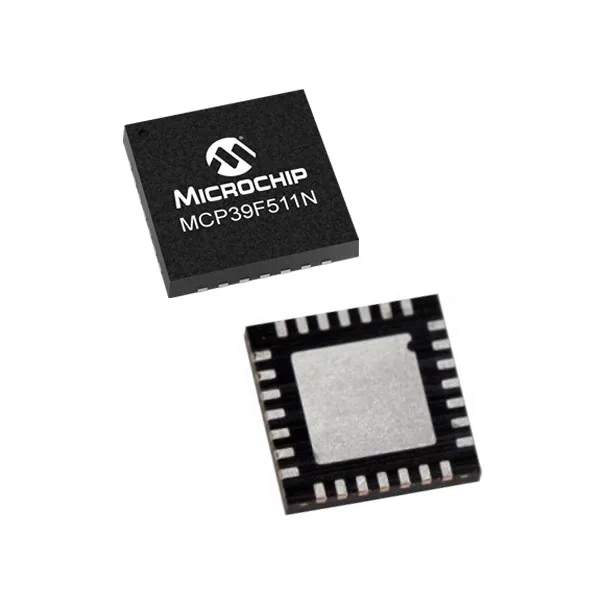

MCP39F511N - Power Monitor IC - Image 1

SKU 1350-MCP39F511NEAN 8219671064965Item type: Assembled

Description

The MCP39F511N from Microchip Technology is a low-power SMD electrical energy meter (Power Monitor IC), ideal for electrical system designers and hardware engineers. Designed to provide precise measurement of electrical energy parameters such as voltage, current, active and reactive power, frequency, etc., the device is particularly suitable for industrial and consumer applications.

Equipped with 24-bit Delta-Sigma analog-to-digital converters for dual-channel current measurement, a 10-bit SAR analog-to-digital converter for voltage, a 16-bit calculation engine, an EEPROM memory, and a flexible two-wire interface, the MCP39F511N offers accuracy better than 0.5% over a 4000:1 dynamic range.

Technical details

Manufacturer Code MCP39F511N-E/MQ
Maximum ambient temperature range 125 °C
Maximum operating temperature 125 °C
Maximum supply voltage 3.6 V
Minimum operating temperature -40 °C
Minimum supply voltage 2.7 V
Nominal supply current 15 mA
Number of channels 2
Operating supply current 7 mA
