RFPIC12F675 MICROCHIP SMD 20 PIN

Microchip rfPIC12F675 SMD microcontroller, F version with FM radio TX
RFPIC12F675 MICROCHIP SMD 20 PIN - Image 1

SKU 1340-RFPIC12F675EAN 8219671001588Item type: Assembled

Description



Microchip rfPIC12F675 SMD microcontroller, F version with FM radio TX. Operating frequency between 380 and 450 MHz.
 TECHNICAL SPECIFICATIONS

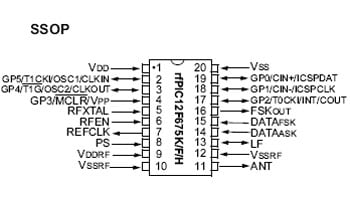

▪ SSOP (SMD) 20-pin package
▪ Frequency 380-450 MHz
▪ Supply voltage from 2 to 5.5Vdc
▪ 6 Input/Output ports
▪ Flash Program Memory: 1024×14
▪ SRAM memory: 64×8
▪ EEPROM Data Memory: 128×8
▪ Oscillator: crystal, max. 20MHz
▪ Serial In-Circuit programming
▪ Instruction count: 35
▪ 4 A/D Converters, 10 bit
▪ 1 8-bit Timer/Counter with 8-bit prescaler
▪ 1 16-bit Timer/Counter with 3-bit prescaler
