Micro color camera, 520 TV lines
CMOS color micro camera with a resolution of 520 TV lines, 0.5 mm / F 1.2 lens, 120° field of view and 0.08 Lux sensitivity
SKU 8100-FR726EAN 8219671102346Features: CVBS signal, MiniatureColour: BlackFormat: Other formatsMaterial: PlasticResolution: 520 TV linesConnection type: Coaxial cableCameras
Description

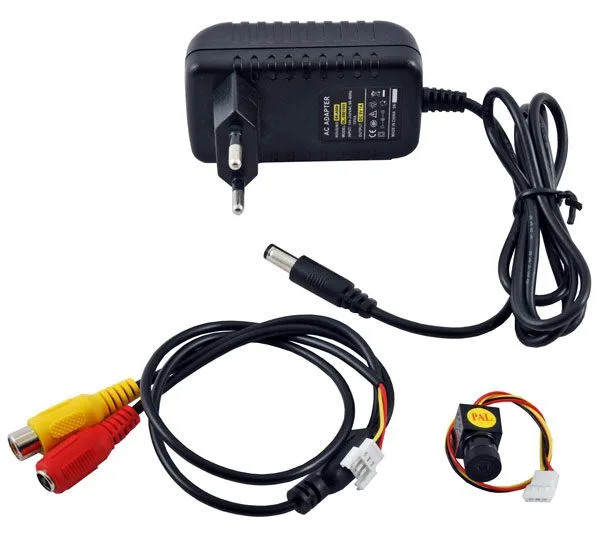

Color CMOS micro camera with a resolution of 520 TV lines, 0.5 mm / F 1.2 optics, 120° viewing angle, and 0.08 Lux sensitivity. Dimensions (mm): 11.5×11.5×20, powered by 5 Volts via a mains adapter (included).
Technical specifications
- Weight: 4 grams
Technical details
| Dimensions (mm) | 11.5x11.5x20, powered by 5 Volts via a mains adapter (included) |
|---|---|
| Image sensor | 1/3" color CMOS |
| Video system | PAL |
| Video output | 1 Vpp 75 Ohm |
| Horizontal resolution | 520 TV lines |
| Effective pixels | 786x576 |
| Optics | 0.5 mm / F 1.2 |
| Viewing angle | 120° |
| Sensitivity | 0.08 Lux / F 1.2 |
| Synchronization | Internal |
| S/N ratio | better than 48 dB |
| Power supply | 5 VDC |
| Consumption | 75 mA |
| Operating temperature | from -10°C to +45°C |
