Mini Anemometer Thermometer

The UNI-T UT363 anemometer is a small handheld instrument for measuring wind speed and air temperature

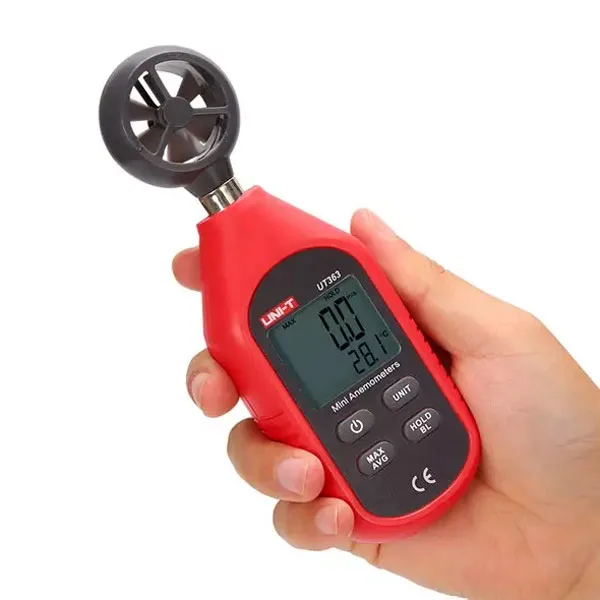

Mini Anemometer Thermometer - Image 1

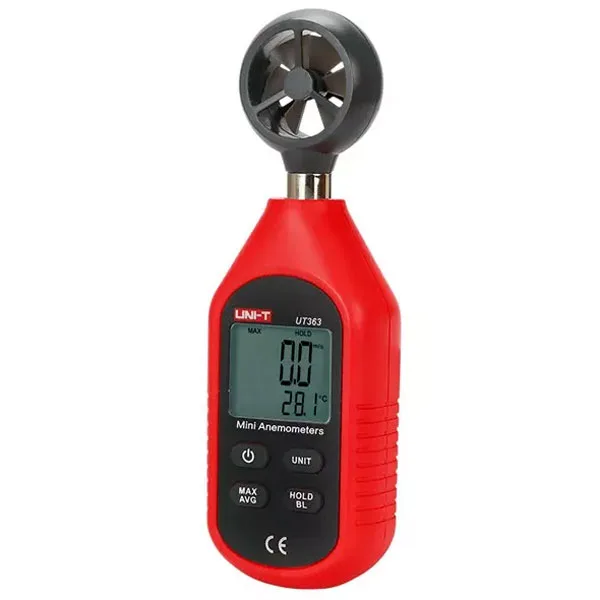

Mini Anemometer Thermometer - Image 3

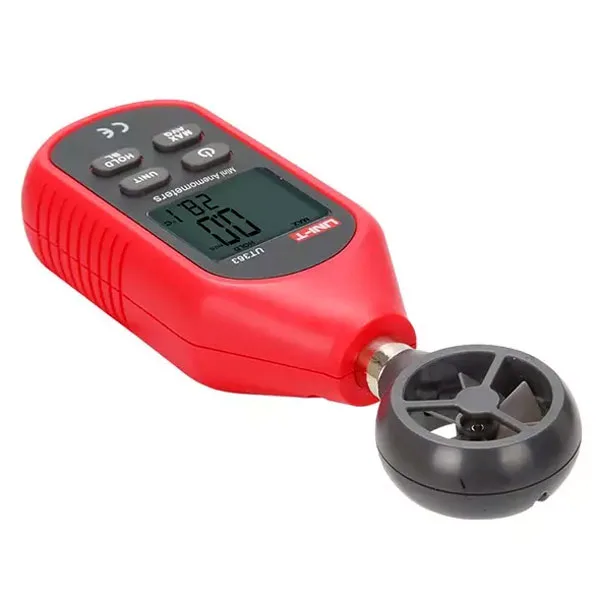

Mini Anemometer Thermometer - Image 4
Mini Anemometer Thermometer - Image 5

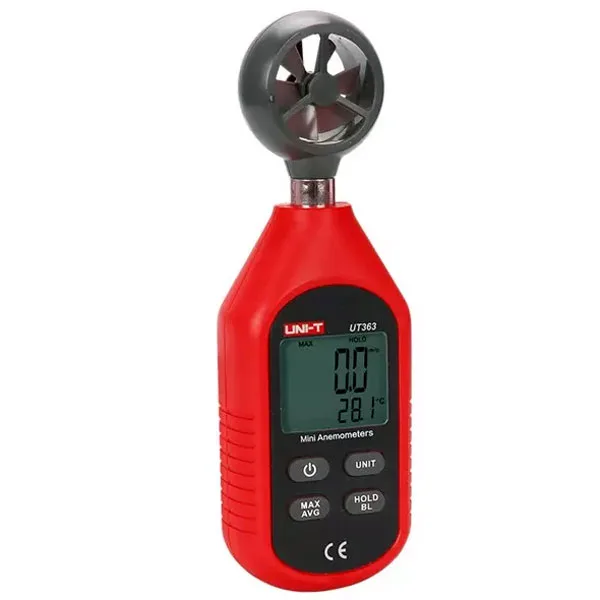

Mini Anemometer Thermometer - Image 6

SKU 8240-TP363EAN 6935750536308Brand: UNI-TProduct type: Environmental & research instruments,

Description

Temperature reading in degrees Centigrade and degrees Fahrenheit, backlit 4-digit LCD display, minimum, maximum and average readings, auto power-off, low battery indicator. Powered by 3 x 1.5 V AAA batteries (included).
Technical specifications
  • Display backlight: Yes, can be switched on and off
  • Units: m/s, Km/h, ft/min, Knots, MPH, °C, °F
  • Wind speed measuring range:
    • 0 ~ 30 m/s, resolution 0.1 m/s, accuracy ± (5% of reading +0.5)
    • 1.4 ~ 108 km/h, (guidance only), accuracy ± (5% of reading +15 digits)
    • 0.7 ~ 58 knots, (guidance only), accuracy ± (5% of reading +10 digits)
    • 0.8 ~ 67 mp/h, (guidance only), accuracy ± (5% of reading +10 digits)
    • 78 ~ 5905 feet/min, (guidance only), accuracy ± (5% of reading + 180 digits)
    • Wind speed measuring range on the Beaufort scale: 0 ~ 12 force, accuracy ± 1 force
  • “WIND CHILL” warning: if the temperature is below 0°C and the wind speed is above 5 m/s, the “WIND CHILL” warning is displayed.
  • “OL” overload indication: if the wind speed is greater than 45 m/s or the temperature is below -10°C or above +50°C, “OL” is displayed.
  • Maximum, minimum and average readings: MAX / MIN / AVG is displayed
  • Working temperature and humidity: 0°C to +40°C (relative humidity below 80%), +40°C to +50°C (relative humidity below 45%)

Technical details

The box contains the anemometer, 3 x 1.5 V AAA batteries and instructions
LCD display 4 digits
Temperature measuring range -10°C to +50°C, resolution 0.1°C, accuracy ± 2°C
Sampling rate 2 readings per second
Low battery indication when the voltage falls to 3 ~ 3.5 volts
Storage temperature -20°C to +60°C (relative humidity below 75%)
Power supply 3 x 1.5 V AAA batteries (included)
Auto power-off after 5 minutes of inactivity
Dimensions (mm) 160x50x28
Weight (battery included) 116 grams
