Mini Colour Underwater Camera – 100 metres
Colour underwater camera with a particularly compact body
SKU 8100-FR703EAN 8219671095921Features: CVBS signal, Special purposeColour: BlackFormat: BulletMaterial: MetalResolution: 520 TV linesConnection type: Coaxial cableCameras
Description

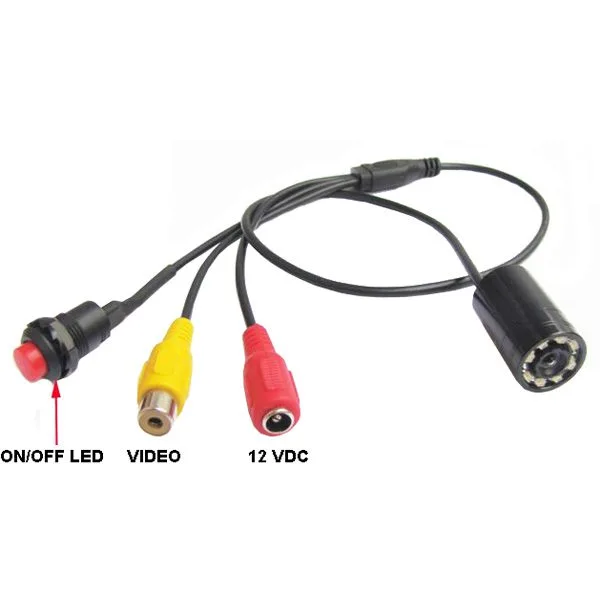

| Colour underwater camera with a particularly compact body. It uses a 1/4” colour CMOS sensor with 520 TV line resolution, a 90° field of view and 8 high-brightness white LEDs switched on and off from a switch, on a 25 metre cable. Especially suited to mounting under the hull of a boat, it films underwater down to 25 metres with the cable supplied and can reach 100 metres. Power supply 12 VDC 1 A, from the mains adapter included. | |
 |
|
| Technical specifications | |
|
 |
Technical details
| Image sensor | 1/4" colour CMOS |
|---|---|
| Lens | F 1.2 |
| Field of view | 90° |
| Video output | 1 Vpp / 75 Ohm composite video |
| Video system | PAL |
| Effective pixels | 728 (H) x 576 (V) |
| Resolution | 520 TV lines |
| Sensitivity | 0 Lux at 5 metres |
| S/N ratio | 48 dB |
| Lighting | 8 white LEDs rated 17600 mcd |
| Protection rating | IP68 |

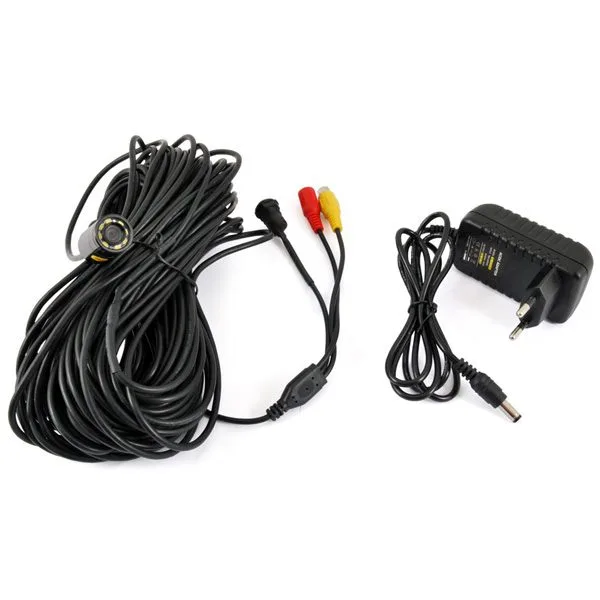

| Supply voltage | 12VDC–1A (from the mains adapter–included) |

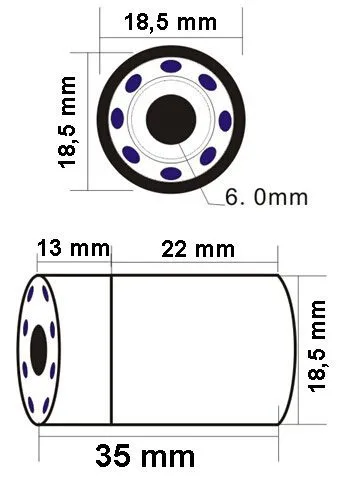

| Camera size (mm) | 35 x 18.5 (diameter) |

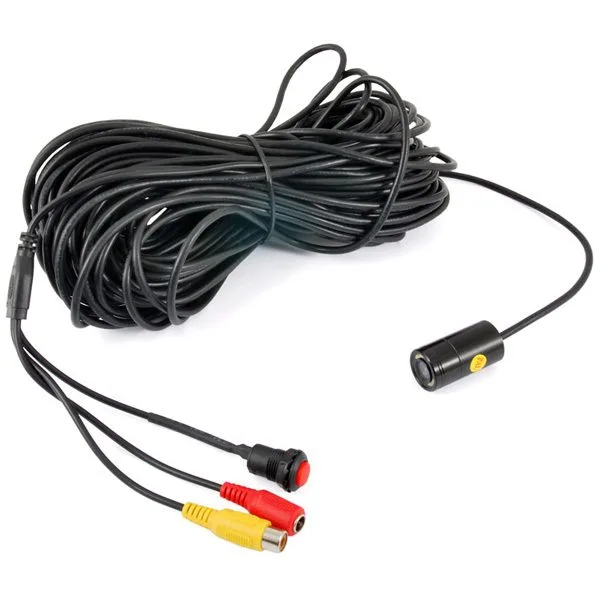

| Cable length | 25 metres |
