Mini Electric Lock 12 VDC

Mini electric lock with a metal body, built around a linear pull solenoid with 10 mm stroke
Mini Electric Lock 12 VDC - Image 1
Mini Electric Lock 12 VDC - Image 3
Mini Electric Lock 12 VDC - Image 4
Mini Electric Lock 12 VDC - Image 5
Mini Electric Lock 12 VDC - Image 6

SKU 2846-ELLOCKEAN 8219671078085Item type: Assembled

Description

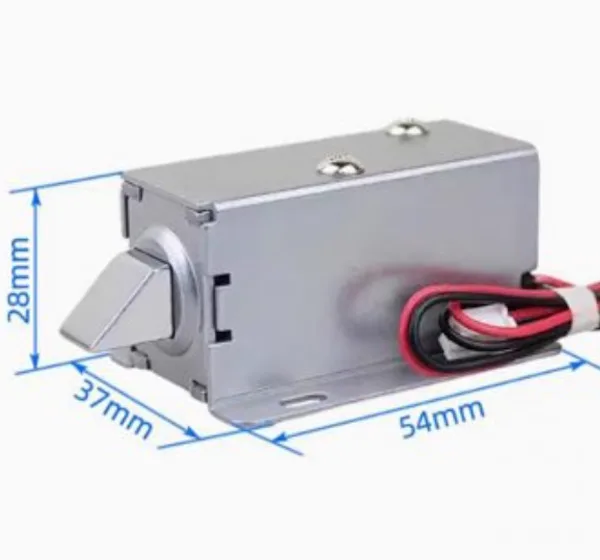

Mini electric lock with a metal body, built around a linear pull solenoid with 10 mm stroke. Supply 12 Vdc, current draw: 1.5 A, release time: 1 second, dimensions (mm): 54x39x28, weight: 150 grams, operating temperature: -40°C to +50°C. It can be used, for example, to lock drawers, small cabinets and so on.

Warning! do not keep it powered for more than 8 seconds.

Technical details

current draw 1.5 A
release time 1 second

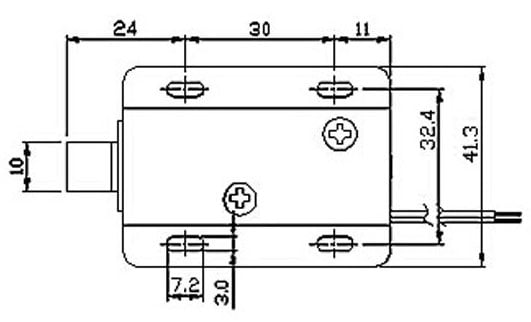

dimensions (mm) 54x39x28
weight 150 grams
