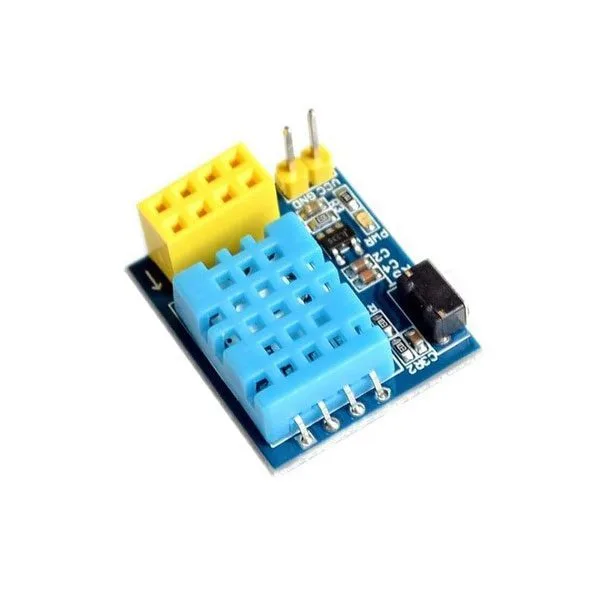

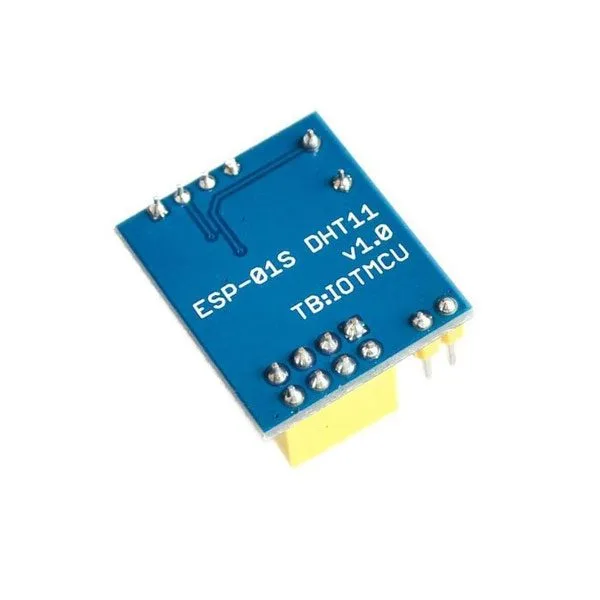

Module with DHT11 Temperature and Humidity Sensor

Description

Compact module with DHT11 temperature and humidity sensor. Ideal for use with the ESP8266 Wi-Fi module (not included) to build temperature and humidity acquisition nodes for Smart Home or IoT projects. The DHT11 sensor measures temperatures from 0°C to +50°C and relative humidity from 20% to 90%. Power supply from 3.7 V (3.7 V lithium battery) to 12 V.

Warning! The ESP8266 module is not included (see related products).

ESP8266 (not included)

• 802.11 b/g/n
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP stack
• Output power +19.5 dBm in 802.11b mode
• SDIO 1.1/2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4 ms guard interval
• Integrates WEP, TKIP, AES, and WAPI

DHT11

• Humidity:
  • Accuracy: ±5% RH (0~50°C)
  • Measurement range: 20% RH ~ 90% RH (25°C)
• Power supply: 3.3 VDC to 5.5 VDC

Documentation and Useful Links

• https://nurdspace.nl/ESP8266
