OpenBuilds gantry plate

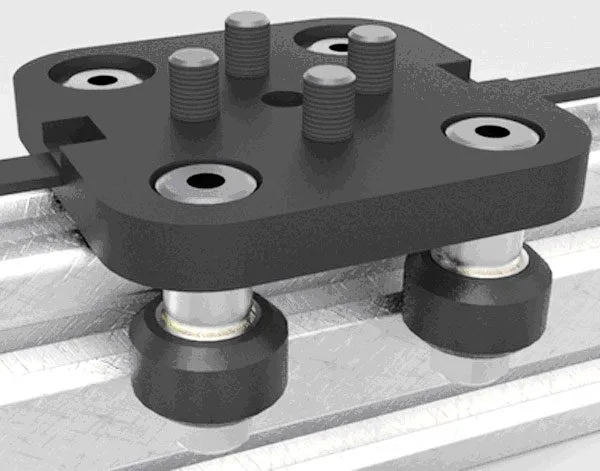

6 mm thick aluminium plate for building linear-motion gantry plates with OpenBuilds mini wheels
OpenBuilds gantry plate - Image 1
OpenBuilds gantry plate - Image 3
OpenBuilds gantry plate - Image 4
OpenBuilds gantry plate - Image 5

SKU 2846-PIASTRAMINIOBEAN 8219671098304Item type: Assembled

Description

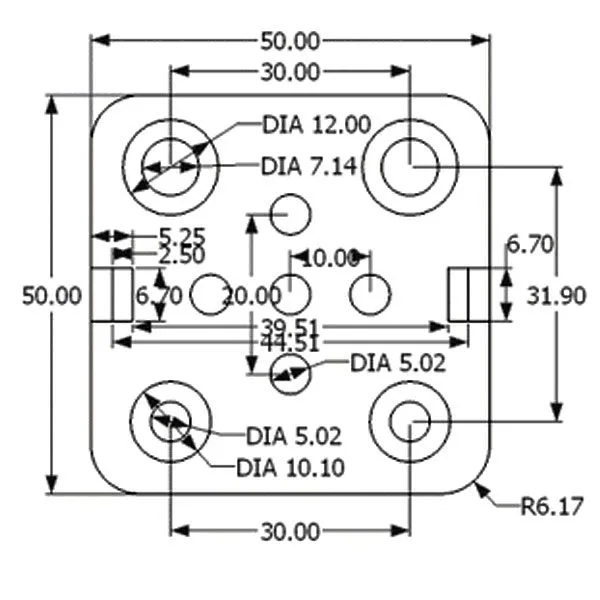

6 mm thick aluminium plate for building linear-motion gantry plates with OpenBuilds mini wheels. It has 5 central holes with M5 threads and 4 outer holes for fixing the wheel shafts (2 of them sized to take an eccentric spacer).
