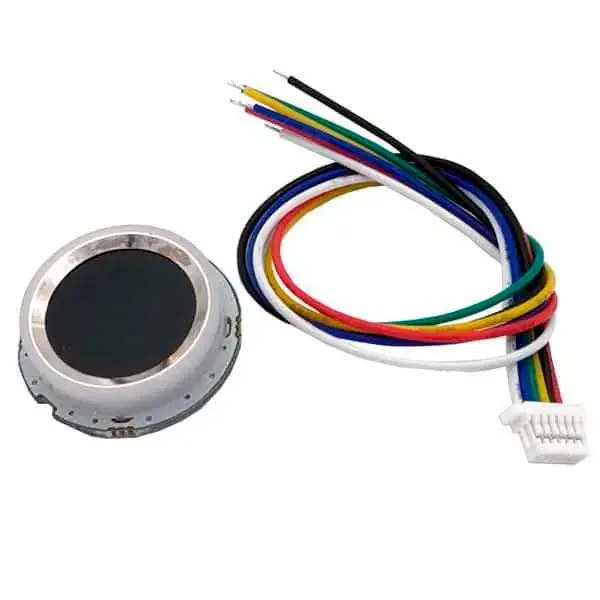

Optical Fingerprint Reader
Optical fingerprint reader with a three-colour status LED, a high-performance recognition algorithm, Flash memory and a UART interface (3.3 V TTL logic level) for direct connection to microcontrollers
SKU 2846-FINGERR2AEAN 8219671114530Access control, Electronic components
Description
|
Optical fingerprint reader with a three-colour status LED, a high-performance recognition algorithm, Flash memory and a UART interface (3.3 V TTL logic level) for direct connection to microcontrollers (Arduino, Raspberry Pi, PIC Microchip). Fingerprint data (up to 200 prints) can be stored in the module, and 1:1 or 1:N mode (see below for details) can be set to identify people. Particularly suited to access control, relay switching, automatic door opening, etc. |
|
 |
|
|
Technical specifications
|
|
|
|
 |
|
| 1:1 and 1:N modes | |
| In 1:1 mode the print of the finger placed on the sensor capture surface is compared with one specific print, while in 1:N mode it is compared with all the stored fingerprints. So in the first you compare your finger with one specific print; in the second you compare it against the whole database of stored prints. | |
|
Documentation and useful links
|
|
Technical details
| Sensor type | optical capacitive |
|---|---|
| Interface | UART (3.3 V TTL logic level) |
| Fingerprint capture time | <0.2 seconds |
| Fingerprint verification time | <0.3 seconds |
| Template size | 768 bytes |
| Resolution | 508 dpi |

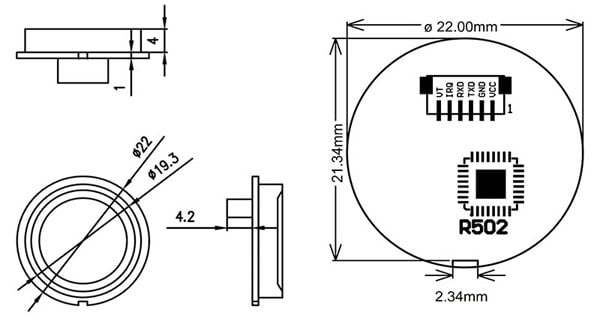

| Fingerprint capture area | 15 mm diameter |
| Security level | 1 to 5 |
| Identification method | 1:1 and 1:N |
| Status LED | Yes |

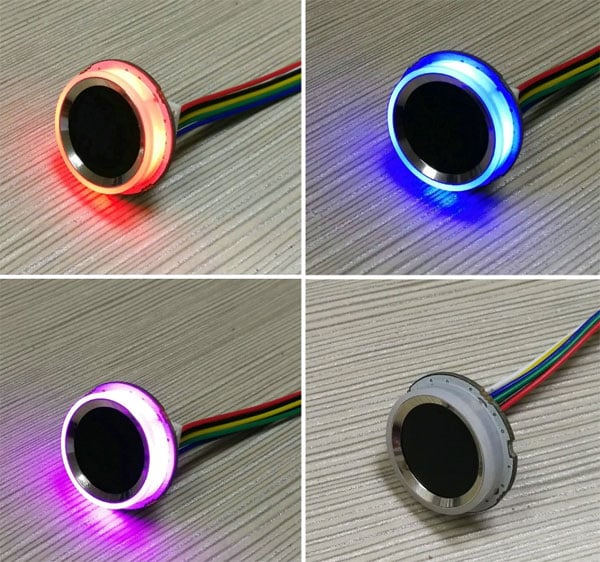

| LED colour | Purple, Blue and Red |
| Supply | 3.3 VDC |
| Operating temperature and humidity | -20℃ to +60℃ / RH: 10% - 85% |
| Storage temperature and humidity | -40°C to +75°C / RH: <85% |
