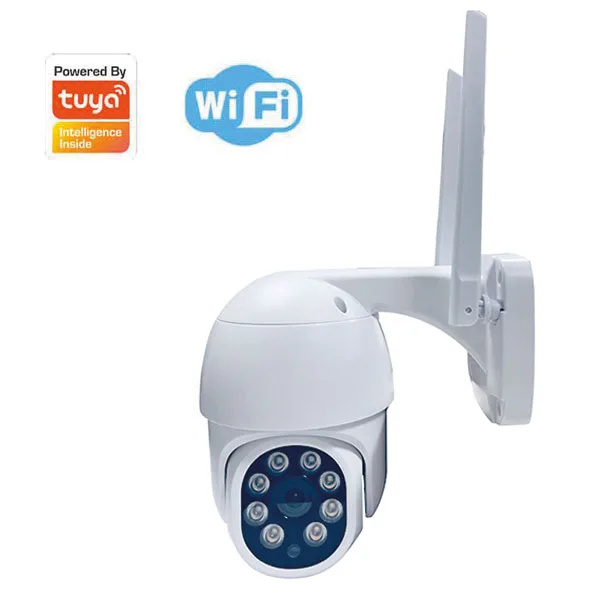

Outdoor Wi-Fi IP Camera 1080p 2MP with Pan/Tilt

Outdoor Wi-Fi IP camera with Full HD resolution, 2 MP CMOS sensor, 3.6 mm wide-angle lens with Pan/Tilt and colour and IR night vision. Works with the Tuya Smart app, supports two-way audio, motion detection and microSD recording.

SKU 8250-VIDEOCAM4NEAN 5706751051722Features: microSD slot, PTZ, Tuya / SmartLifeColour: WhiteFormat: Speed dome / motorisedMaterial: PlasticResolution: 2 MpxConnection type: Ethernet cable, Wi-Fi

Description

Outdoor Wi-Fi IP camera with Full HD 1080p (1920×1080) resolution, fitted with a 1/3” progressive scan 2 Megapixel CMOS sensor, designed for wireless video surveillance in homes and businesses.

The 3.6 mm lens gives a 107° diagonal and 89° horizontal field of view, and is paired with a motorised mechanical Pan/Tilt function, controlled remotely from the Tuya Smart app (Android/iOS), with horizontal rotation up to about 355° and vertical up to about 90°, for wide and flexible coverage of the monitored area.

The built-in lighting system is made of 8 LEDs in total: 4 infrared LEDs for black and white night vision, and 4 white light LEDs for colour night vision, switched on automatically according to the ambient light.

The camera offers motion detection up to 10 metres, with real-time push notifications through the app. It includes a built-in microphone and speaker for two-way audio, useful both for talking directly and as a deterrent.

It supports local recording on a microSD card (up to 128 GB, not included) and OTA firmware updates. The built-in Wi-Fi module works on 2.4 GHz networks (802.11 b/g/n).

The body is made of high-strength engineering plastic, with IP65 protection against dust and water spray, ideal for outdoor installation. It works over a temperature range from -20 °C to +60 °C.

Technical specifications
  • Compatibility: Tuya Smart app (Android / iOS)
  • Night mode: Infrared (black and white) or colour with white light
  • Audio: Built-in microphone and speaker (two-way audio)
  • Power supply: 230V AC → 5V DC adapter included
Pack contents
  • Camera with mounting bracket
  • 5V power supply
  • Screws and wall plugs kit
  • User manual

Technical details

Type Outdoor Wi-Fi IP camera
Sensor 1/3" progressive scan CMOS, 2 Megapixel
Video resolution Full HD 1080p (1920 × 1080 pixels)
Lens Fixed focal length 3.6 mm
Field of view (lens) 107° (diagonal), 89° (horizontal)
Pan/Tilt movement Motorised, remotely controlled – Pan about 355°, Tilt about 90°
Night vision 8 LEDs in total (4 IR + 4 white light)
Night vision range about 8 metres
Motion detection Up to 10 metres, with push notifications
Storage MicroSD card slot up to 128 GB (not included)
Connectivity Wi-Fi 2.4 GHz (802.11 b/g/n)
Updates Firmware upgradable via OTA (Over-The-Air)
Protection rating IP65 (resistant to dust and water spray)
Operating temperature from -20 °C to +60 °C
