Panel Micro Voltmeter 0-100 VDC

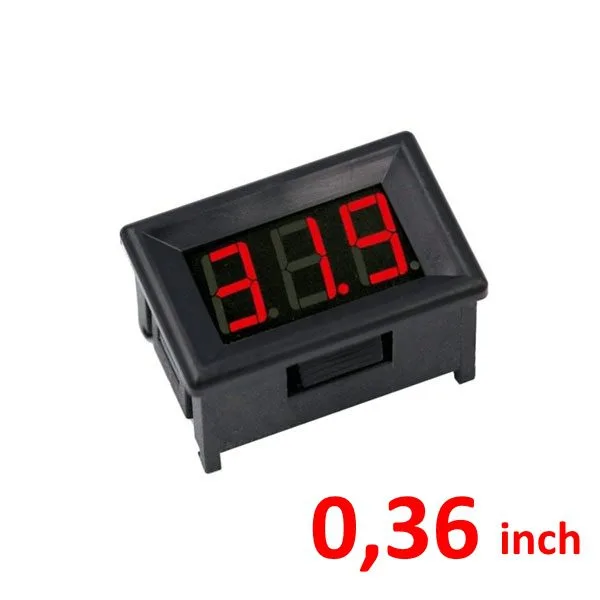

Mini panel voltmeter (35x23 mm), 3 digits with red LED display
Panel Micro Voltmeter 0-100 VDC - Image 1

SKU 1606-MICROPAN100EAN 8219671113212Item type: Assembled

Description

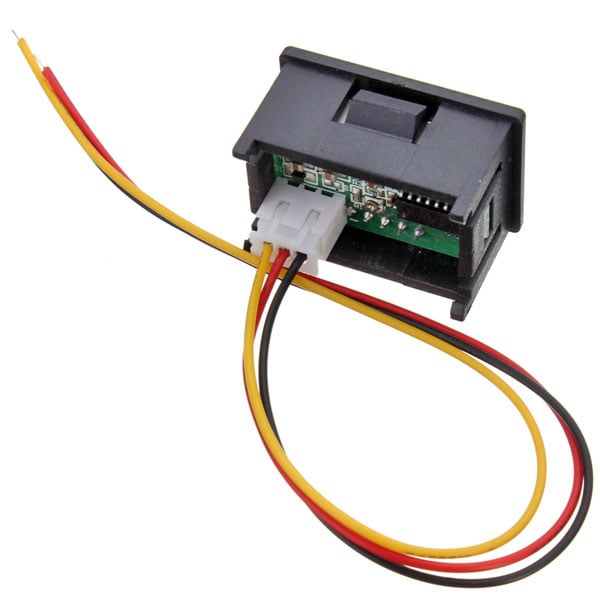

Mini panel voltmeter (35×23 mm), 3 digits with red LED display. It can show DC voltages from 0 to 100 volts. Power supply: 4.5 to 28 VDC, consumption: less than 20 mA. Digit height: about 9.14 mm, accuracy: 1%, operating temperature: -10°C to +65°C. Red wire: positive, black wire: negative, yellow wire: positive of the voltage to be measured.
Technical specifications
  • Power supply: 4.5 to 30 VDC
  • Size (mm):
    – bezel, overall: 34.5x23x22

Technical details

Power supply 4.5 to 28 VDC
consumption less than 20 mA. Digit height: about 9.14 mm
accuracy 1%
operating temperature -10°C to +65°C. Red wire: positive
black wire negative
Display red LED, digit height 9.14 mm
Measuring range 0 to 100 VDC
overall 34.5x23x22
cut-out hole 32.5x21
Weight 8.5 grams
