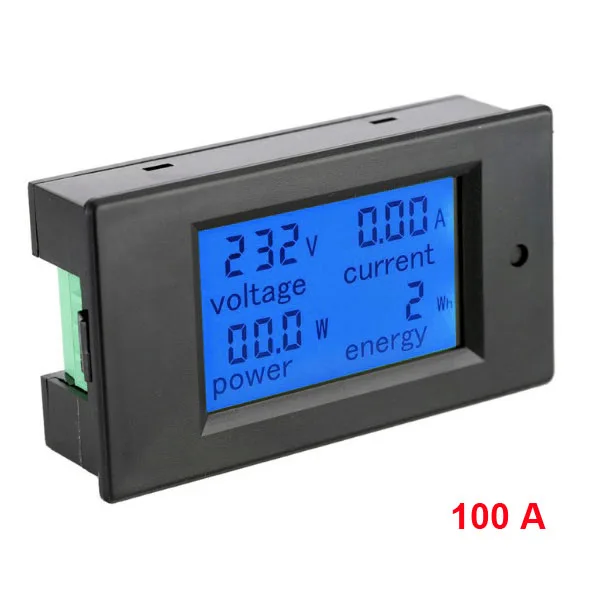

LCD energy meter – 100 A

Description

Featuring a large LCD display with blue backlight and a current transformer, this panel meter can simultaneously show voltage, current, power, and energy consumption. It has a button to select functions, overload and power-exceeded signaling, and data storage. It can measure voltages between 80 and 260 VAC, currents up to 100 A, power up to 22 kW, and consumption up to 9999 kWh.

Warning!

1. This module is for indoor use only, not outdoors.
2. The applied load must not exceed the rated power.
3. Be extremely careful not to miswire.
4. It can be used to measure pure sine wave voltages. Use with modified sine wave output voltage may burn the instrument within minutes.

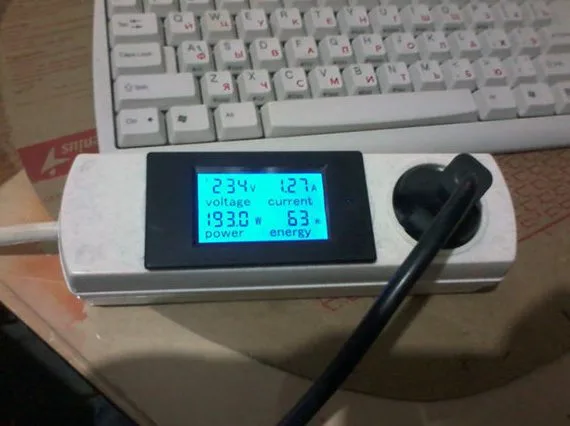

Applications

Technical specifications

• Power measurement range: 0 to 22 kW (up to 1 kW the display shows 0.0 ~ 999.9 W; from 1 kW it shows 1000 ~ 9999 W; from 10 kW it shows 10.0 ~ 22.0 kW)
• Energy consumption measurement range: 9999 kWh (up to 10 kWh it shows 0 ~ 9999 Wh; from 10 kWh it shows 10 ~ 9999 kWh)
