SHUNT resistor 100A 75mV

Wired in parallel with the ammeter, this shunt lets you measure higher currents

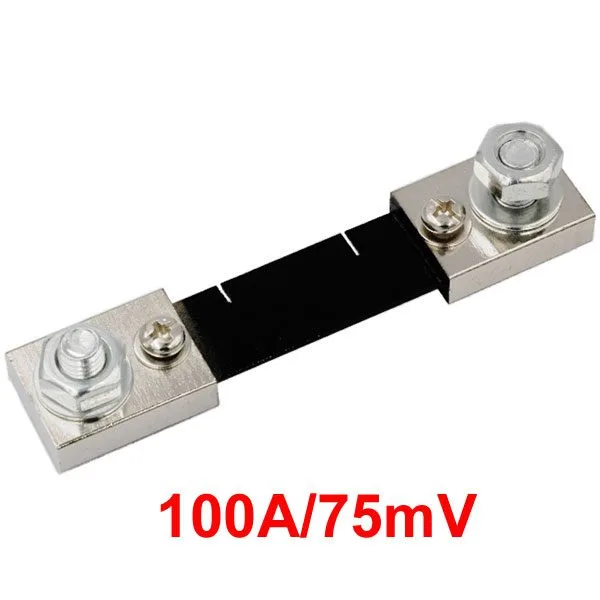

SHUNT resistor 100A 75mV - Image 1
SHUNT resistor 100A 75mV - Image 3
SHUNT resistor 100A 75mV - Image 4
SHUNT resistor 100A 75mV - Image 5
SHUNT resistor 100A 75mV - Image 6

SKU 1606-SHUNT100A75EAN 8219671115964Item type: Assembled

Description

Wired in parallel with the ammeter, this shunt lets you measure higher currents. Maximum current: 100 A, voltage drop 75 mV, accuracy class 0.5, resistance: 0.00075 ohm, operating temperature: -40°C to +60°C, size (mm): 106x25x22, weight: 128 grams.

Dimensions in mm

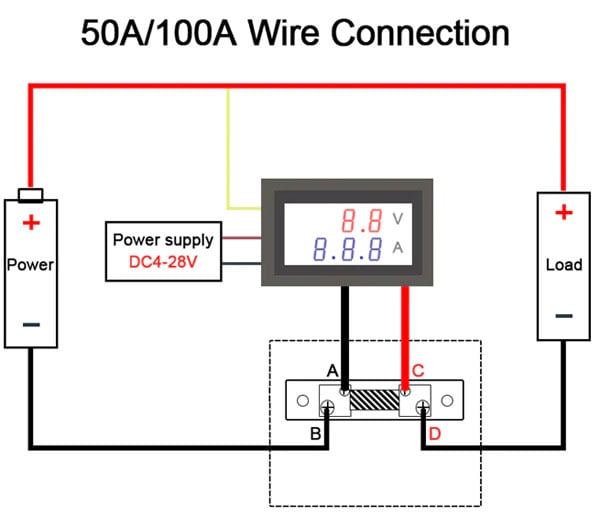

Examples of use




Technical details

Maximum current 100 A, voltage drop 75 mV, accuracy class 0.5
resistance 0.00075 ohm
operating temperature -40°C to +60°C
size (mm) 106x25x22
weight 128 grams
