PCB for MEANWELL IRM Power Supply Module

Carrier board for MeanWell IRM series modules: a printed circuit board designed to take several different versions of the module, with either 5V or 12V output.

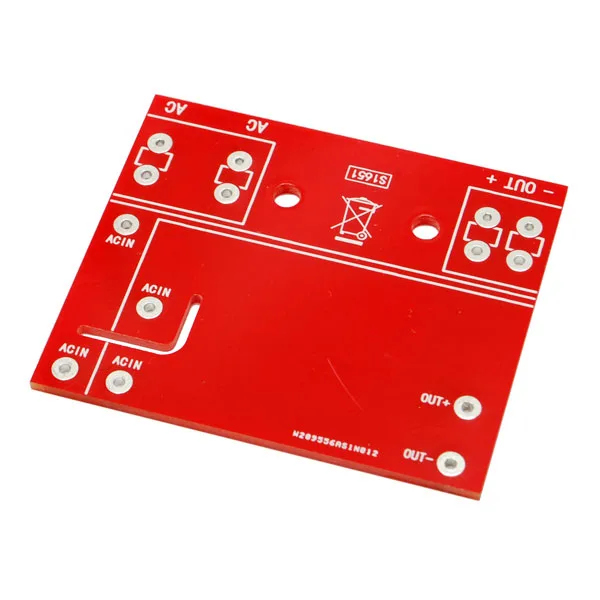

PCB for MEANWELL IRM Power Supply Module - Image 1

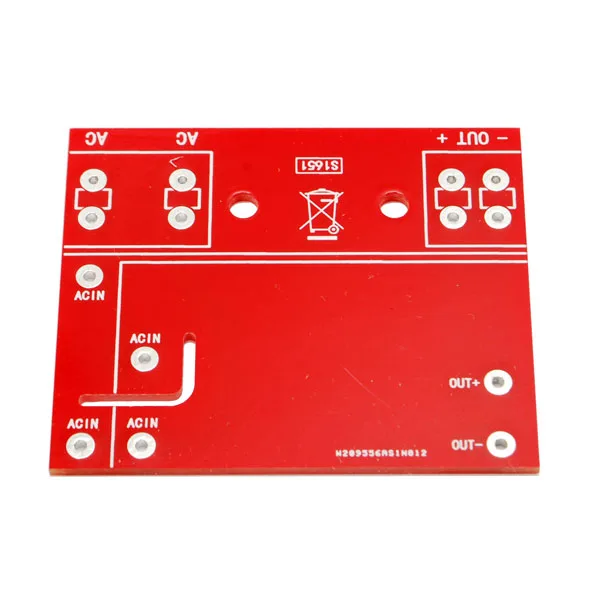

PCB for MEANWELL IRM Power Supply Module - Image 3

SKU 7200-S1651EAN 8219671117456Item type: Assembled

Description



Carrier board for MeanWell IRM series modules. It consists of a printed circuit board that accepts several different versions of the power supply module, including IRM-10-5, IRM-20-5 and IRM-20-12, or any other module with the same footprint and pinout. The board is designed to get MeanWell IRM series power modules up and running quickly (see the related products).

To complete the product you also need to buy, separately, a 2-pole 5mm pitch terminal block and a 10mm pitch terminal block (see the related products).

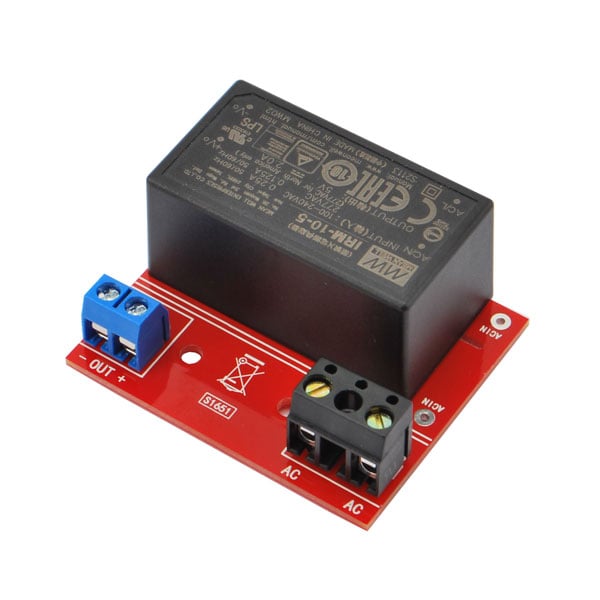

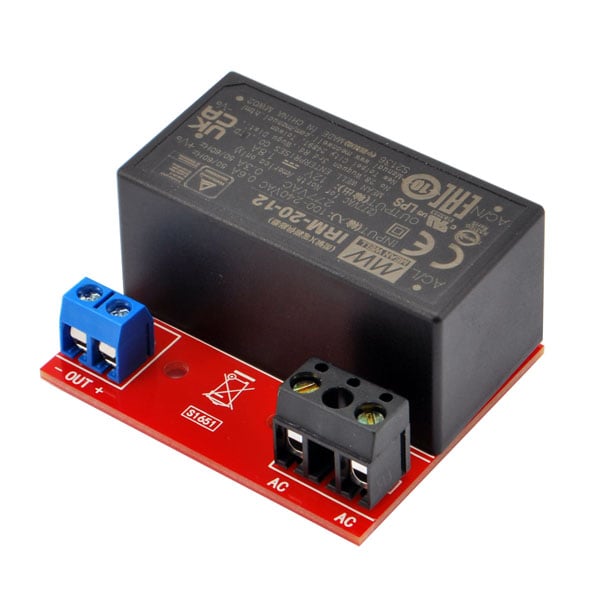

The MeanWell IRM modules and the terminal blocks (sold separately) fitted on the board
