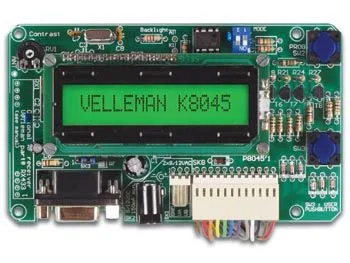

PROGRAMMABLE MESSAGE DISPLAY

Description

Features

• Adds an LCD display to any simple application, giving it a high-tech appearance
• Replaces up to 9 indicators or lamps with a single backlit LCD display
• Messages can be recalled simply by pressing a button
• Inputs accept dry contacts, open collectors, and logic levels
• No programming skills required
• Stores up to 9 messages of maximum 16 characters in non-volatile EEPROM memory
• 4 operating modes:
  • 1) Displays the status of all inputs simultaneously
  • 2) Displays all active inputs
  • 3) Displays active inputs with highest priority
  • 4) Displays text messages in “tickertape” mode
• A default message can be displayed when no input signal is active
• Messages can be transferred to the K8045 from any PC or terminal
• Free message transfer software for the K8045 is available at www.velleman.be
• Wireless data transfer between PC or terminal and K8045 is possible with the optional RX/TX433 module
• 1 button on the board is available for an application of your choice
