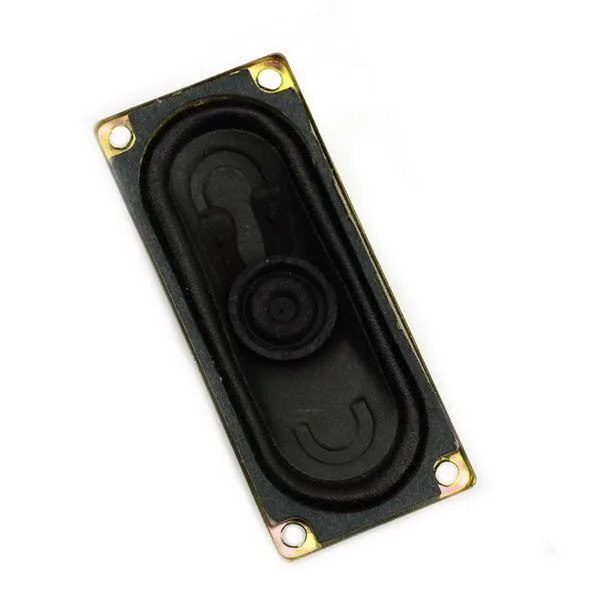

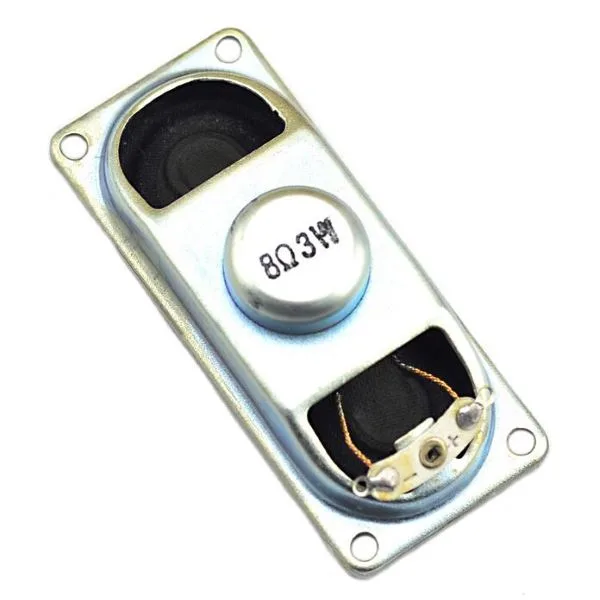

Rectangular Loudspeaker 3 W / 8 ohm

Loudspeaker with a neodymium magnet and a 200 to 10,000 Hz response, 86 dB sensitivity: it measures 70.7 x 30.7 mm and weighs 20 grams.
Rectangular Loudspeaker 3 W / 8 ohm - Image 1
Rectangular Loudspeaker 3 W / 8 ohm - Image 3
Rectangular Loudspeaker 3 W / 8 ohm - Image 4

SKU 1606-AP8R3WEAN 8219671088275Item type: Assembled

Description

Specifications

  • Impedance: 8 ohm ± 15%
  • Maximum power: 3W
  • Frequency response: 200 ~ 10000Hz
  • Sensitivity: 86 ± 3dB (1w/0.5m)
  • Magnet: NdFeB
  • Weight: 20 grams

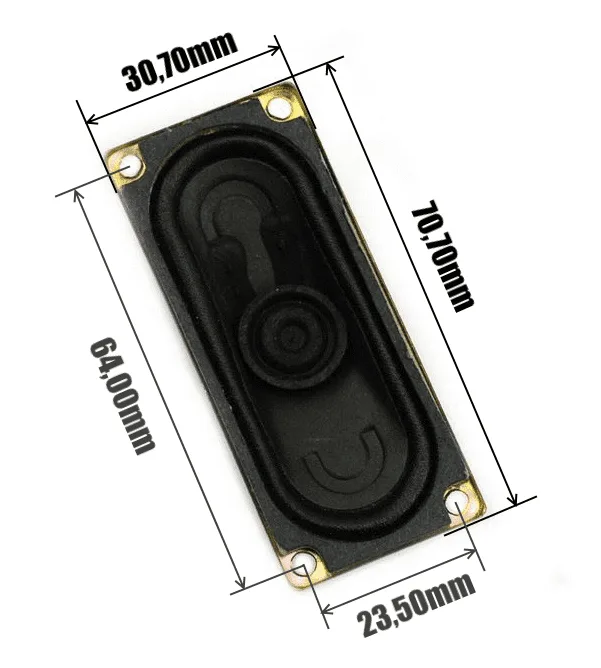

  • Dimensions: 70.70 x 30.70 x 17.50 mm

Technical details

Impedance 8 ohm ± 15%
Maximum power 3W
Frequency response 200 ~ 10000Hz
Sensitivity 86 ± 3dB (1w/0.5m)
Magnet NdFeB
Weight 20 grams
Dimensions 70.70 x 30.70 x 17.50 mm
