3+3 watt micro amplifier

Based on the PAM8403 chip, this small class D stereo amplifier can deliver a maximum output of 3 W into 4 Ohm

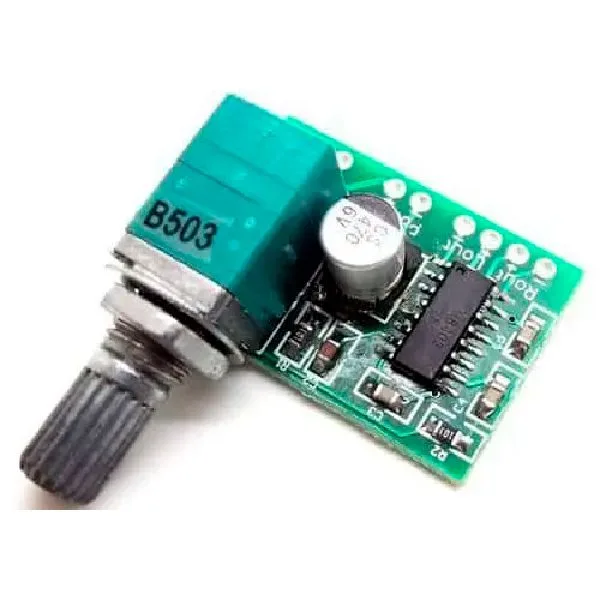

3+3 watt micro amplifier - Image 1

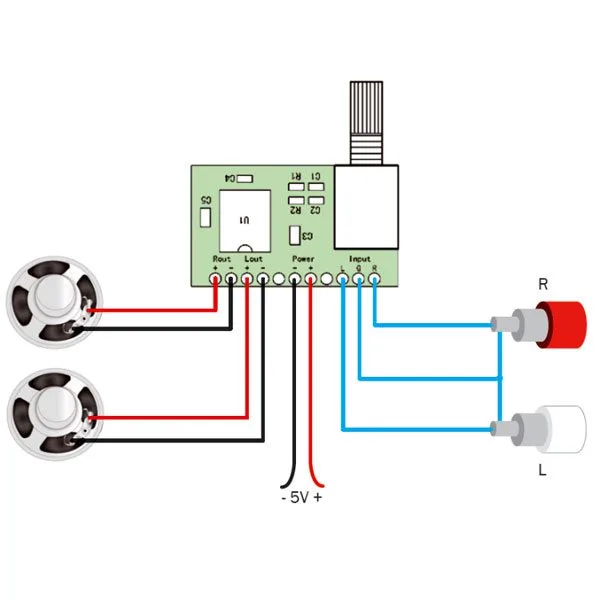

3+3 watt micro amplifier - Image 3

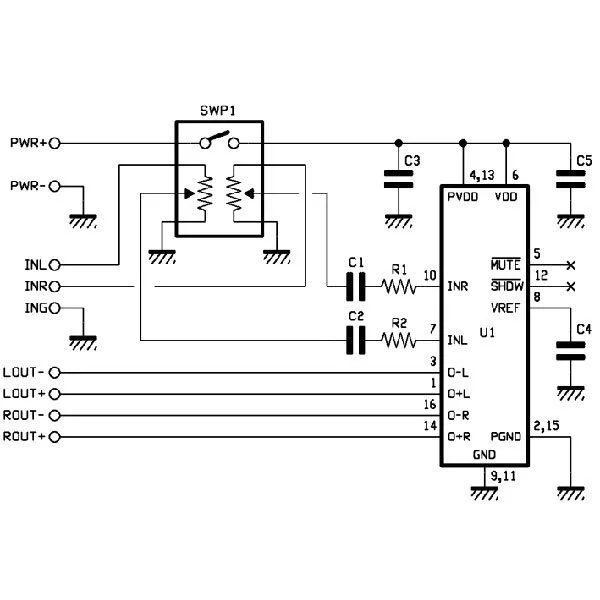

3+3 watt micro amplifier - Image 4

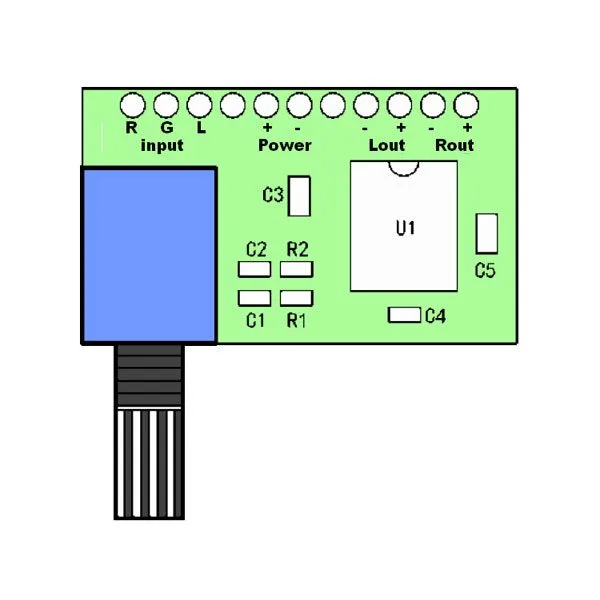

3+3 watt micro amplifier - Image 5

SKU 2846-PAM8403POTEAN 8219671069816Item type: Assembled

Description

Based on the PAM8403 chip, this small class D stereo amplifier can deliver a maximum output of 3 W into 4 Ohm. It has a volume potentiometer and an on/off switch. Power supply: 2.5 Vdc to 5.5 Vdc, output power: 2×3 watt (5V 4 ohm), dimensions (mm): 33x19x16. Particularly suitable for use with small MP3 players. Warning! do not power it above 5.5 V and do not reverse the polarity.



Technical details

Power supply 2.5 Vdc to 5.5 Vdc
output power 2x3 watt (5V 4 ohm)
dimensions (mm) 33x19x16
