200 Watt Mono Amplifier – Kit

Compact mono power module complete with power supply circuit (transformer excluded), in kit form

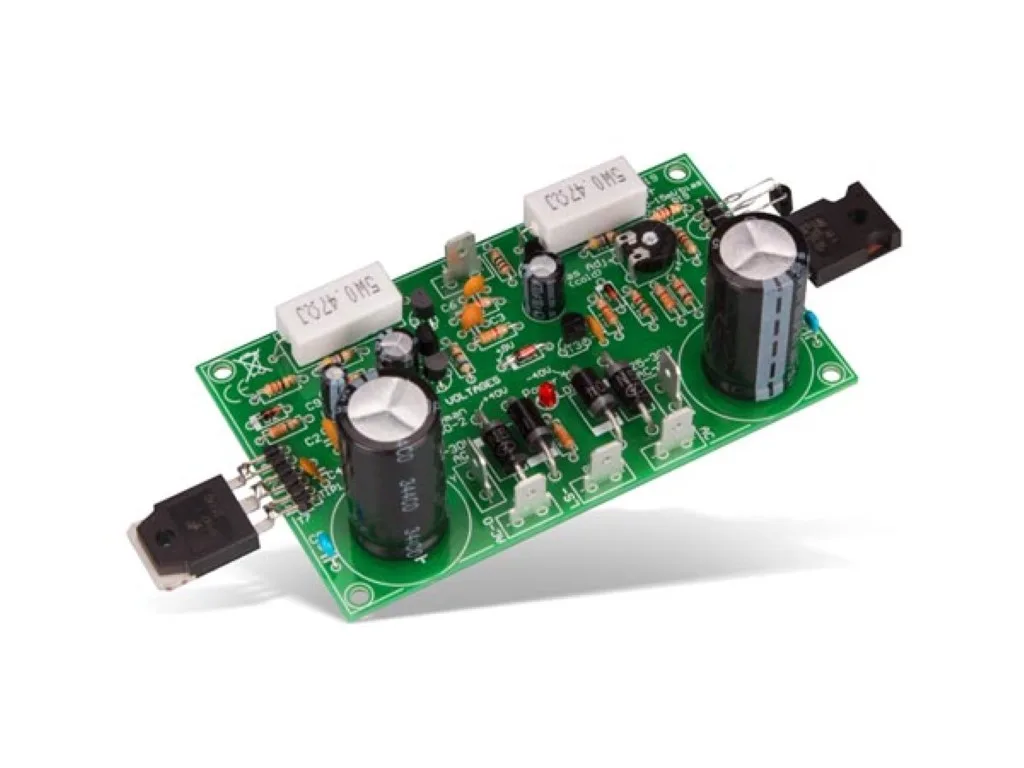

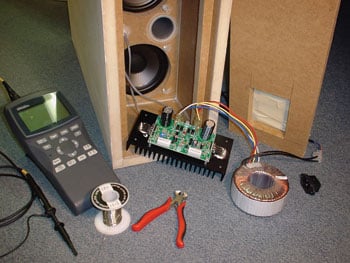

200 Watt Mono Amplifier - Kit - Image 1

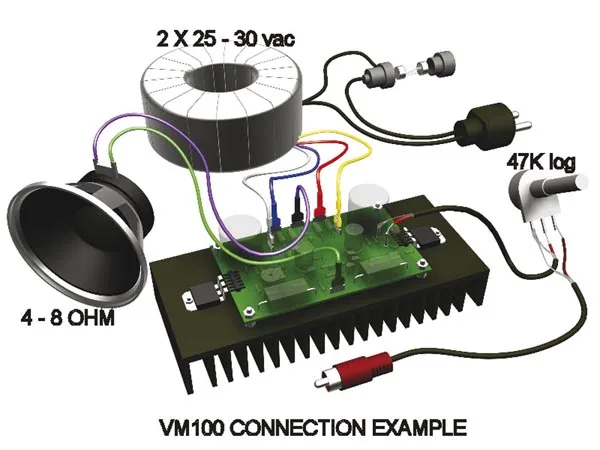

200 Watt Mono Amplifier - Kit - Image 3

SKU 8220-K8060EAN 5410329335052Item type: Kit,

Description

If you’re a music enthusiast looking for exceptional sound, this compact power amplifier module is exactly what you need.

With the ability to deliver an effective power of 100 watts into a 4 Ohm load or 70 watts into 8 Ohm (200 music watts into 4 Ohm), this amplifier is the perfect choice for powered speakers, sub-woofer systems, electric guitar and bass amplification, home theatre systems and much more. Simply connect a power transformer to the circuit to make the device fully functional.

The amplifier also features a built-in protection circuit against overloads and output short circuits.
Technical specifications
  • System: discrete components with Epitaxial Darlington output stages
  • Output power:
    – 200W music @ 4 ohm
    – 100Wrms @ 4 ohm
    – 70Wrms @ 8 ohm

Technical details

Distortion 0.02% @ 1 kHz/10W
Frequency response 3Hz ÷ 200 kHz (-3dB)
Sensitivity 0.6 Vrms
S/N ratio 115dB
Power indicator red LED
Output protection overloads and short circuits
Power supply 25-30 Vac 120 VA (centre-tapped transformer)
Board dimensions (mm) 107x62
