2×15 Watt Audio Amplifier with TDA7297

Audio amplifier based on the TDA7297 chip

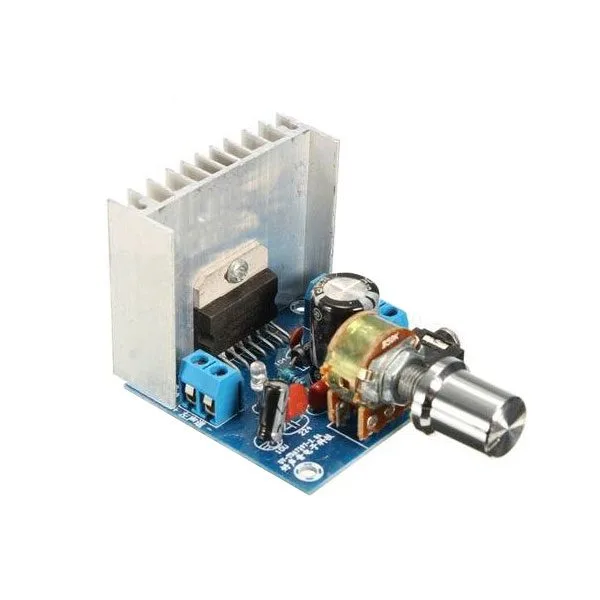

2x15 Watt Audio Amplifier with TDA7297 - Image 1
2x15 Watt Audio Amplifier with TDA7297 - Image 3
2x15 Watt Audio Amplifier with TDA7297 - Image 4

SKU 1606-AMPLI2X15WEAN 8219671088596Item type: Assembled,

Description

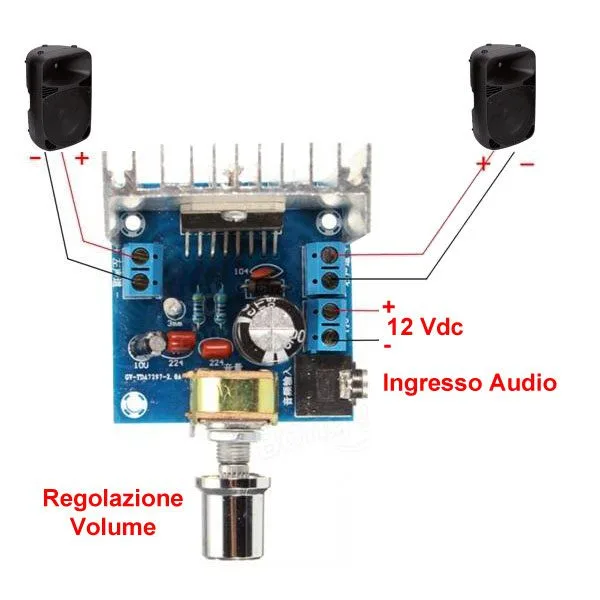

Audio amplifier based on the TDA7297 chip. It can deliver a maximum power of 15+15 watts on 8 ohms. It features a potentiometer for volume adjustment directly on the board. Power supply: 9 to 12 Vdc (12 Vdc 2 A for 2×15 watts), output power: 2×15 watts, dimensions (mm): 52x46x42. Particularly suitable for use with small MP3 players.

Documentation and useful links

Technical details

Power supply 9 to 12 Vdc (12 Vdc 2 A for 2x15 watts)
output power 2x15 watts

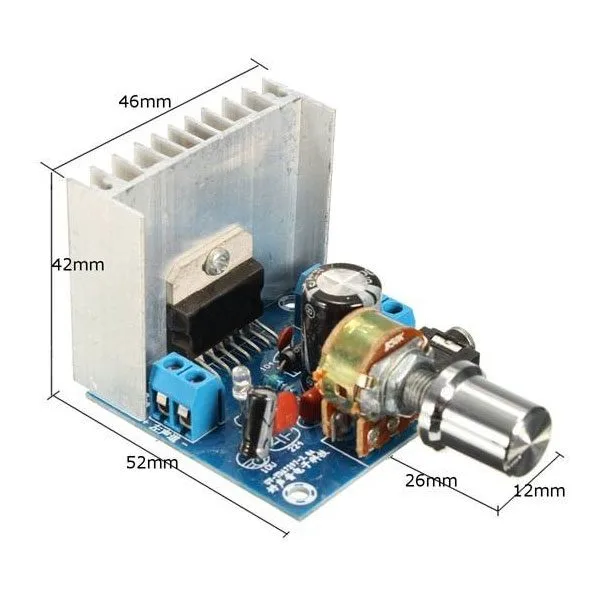

dimensions (mm) 52x46x42
