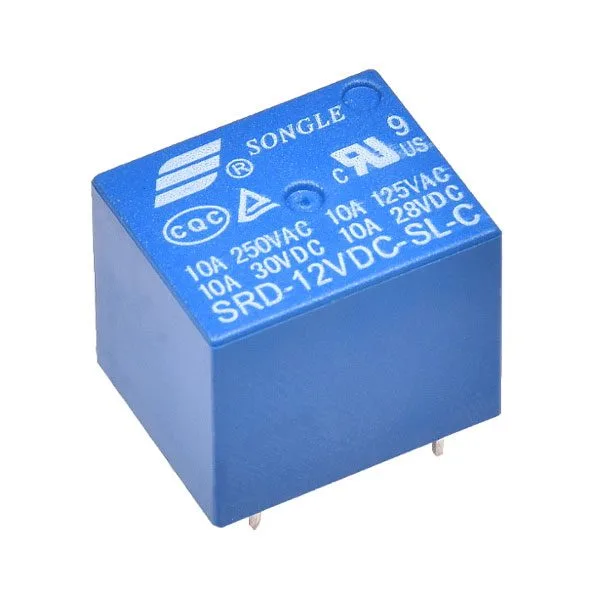

Relay 12 Vdc – 10A

Single-changeover power relay for printed circuit board mounting
Relay 12 Vdc - 10A - Image 1
Relay 12 Vdc - 10A - Image 3

SKU 8220-VR15M121CEAN 5410329275532Item type: Assembled

Description

Single-changeover power relay for printed circuit board mounting. Coil voltage 12Vdc, coil resistance 360 ohm, rated coil power 450 mW, contact rating 10A / 28Vdc-125 Vac, 7A / 220Vac, dielectric strength 1000V / 50Hz (1 minute), internal contact material AgCdO.
