RJ45 and USB Board for LININO ONE

Description

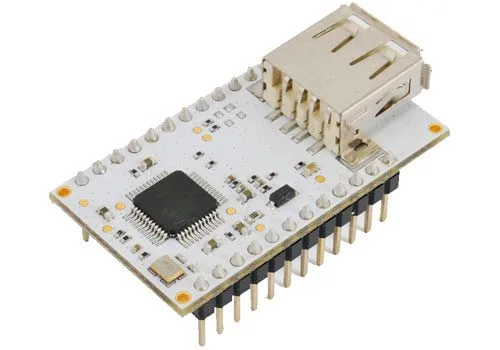

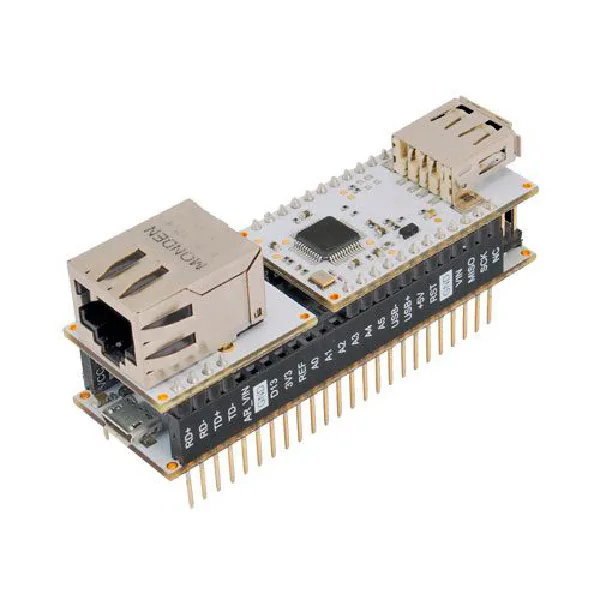

Set for Linino One consisting of the “dogRJ45” and dogUSB modules. The “dogRJ45” module has been designed to equip the base board with a Fast Ethernet switch in IEEE 802.3 standard, capable of recognizing the polarity of network cables and thus adapting to the use of both “normal” and “crossover” network cables. The module implementation supports port mirroring, broadcast storm management, and full-duplex flow control. The “dogUSB” module is also mounted on a printed board of the same width as the main “stick”, with two rows of connectors that fit onto those on the base board. The “dogUSB” module has a USB connector fully compatible with USB 2.0 Hub specifications and backward compatible with USB 1.1 Hub specifications. It supports automatic switching between bus-power and self-power modes. On board the “dogUSB” module there is also a connector for a micro SD card. This module is also characterized by a width equal to that of the base board and by two rows of connectors for its connection to the base board. Attention! Linino One is not included.

Documentation and useful links

• http://shop.linino.org/products/linino-one
