Rotary Encoder Breakout Board – 12 mm shaft

Breakout board with a rotary encoder, 20 steps/360° (18° per step)

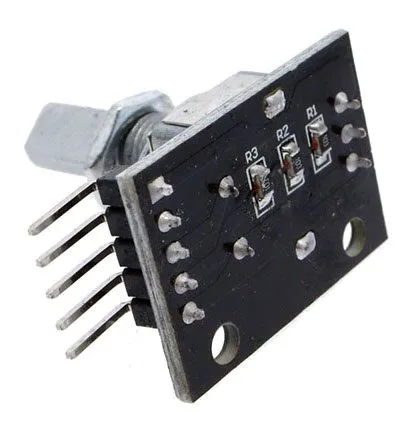

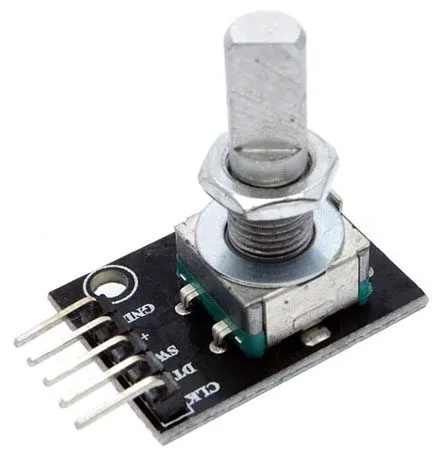

Rotary Encoder Breakout Board - 12 mm shaft - Image 1

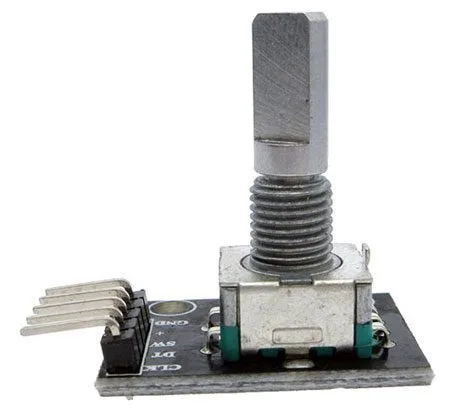

Rotary Encoder Breakout Board - 12 mm shaft - Image 3

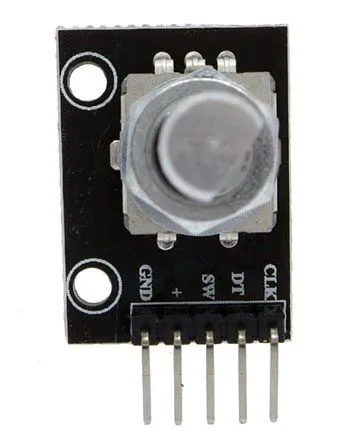

Rotary Encoder Breakout Board - 12 mm shaft - Image 4

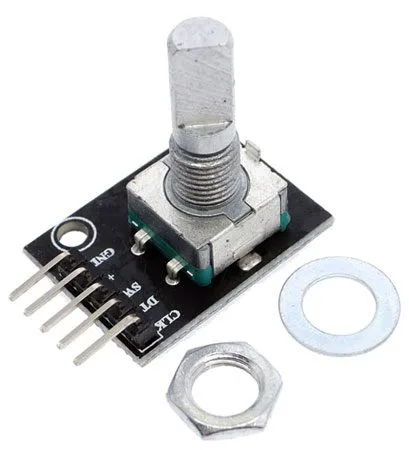

Rotary Encoder Breakout Board - 12 mm shaft - Image 5
Rotary Encoder Breakout Board - 12 mm shaft - Image 6

SKU 8300-YC093EAN 8219671105378Item type: Assembled

Description

Breakout board with a 20-step/360° (18° per step) rotary encoder. The output signal is based on Gray code, which allows you to know in which direction the encoder has been rotated. It also has a normally open button that activates when the encoder shaft is pressed down. Power supply: 5 VDC. It can also be used with Arduino, Fishino, or other microcontrollers.

Attention! The knob is not included (see related products).

Operation

Technical details

Output 2-bit Gray code
Power supply 5 VDC – 10 mA
Operating temperature from -30°C to +70°C
Storage temperature from -40°C to +85°C
Average life over 20,000 cycles
Protection rating IP 40
board 26.15 x 19.3 x 29
shaft diameter 6 x length 12
Weight 7 grams
