Serial Controller for Graphic LCD Displays

Serial controller for 160x128 pixel or 128x64 pixel graphic LCD displays

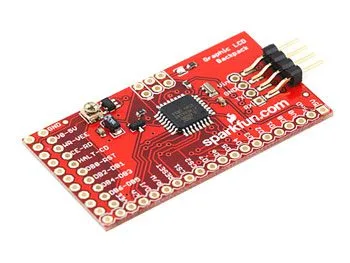

Serial Controller for Graphic LCD Displays - Image 1

SKU 7300-LCD09352EAN 8219671053631Item type: Assembled

Description



Serial controller for 160×128 pixel or 128×64 pixel graphic LCD displays. It lets you write text, draw lines and circles, set or reset individual pixels, and clear specific blocks of the display. Backlight intensity and baud rate can also be controlled via serial communication. To select the 160×128 or 128×64 display, simply fit or remove a jumper.
TECHNICAL FEATURES
  • Contrast adjustment via potentiometer
  • Backlight control
DOCUMENTS AND USEFUL LINKS

Technical details

Power supply 6-7 Vdc
Current draw 220 mA (with backlight at 100%)
Serial input 0-5 V
Adjustable baud rate 115200 default with 8 data bits, no parity, 1 stop bit
Dimensions 51x28 mm
