Smart Digital Tweezers for LCR and ESR Testing with Colour Display

Description

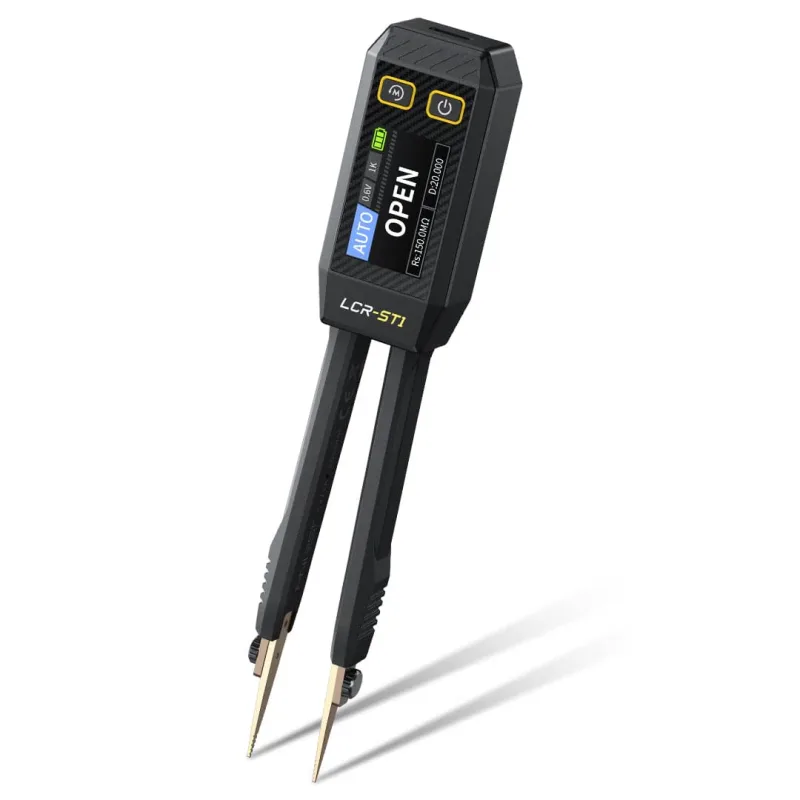

The LCRST1 is a smart, compact and multifunction pair of digital tweezers, designed to measure resistance (R), capacitance (C), inductance (L), ESR and diodes quickly and accurately. Thanks to its tweezer design, it is perfect for testing SMD components even in tight spaces, on the bench and in the field.

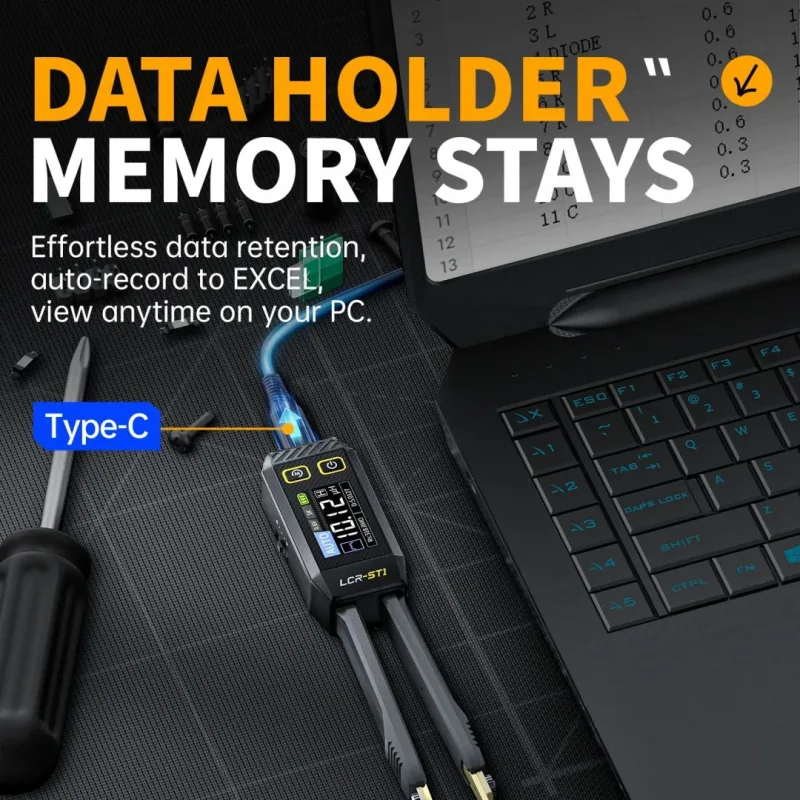

It supports automatic component recognition, the display of primary and secondary parameters (D, Q, Z, ESR, X), and lets you store and export data to a PC. It works with 3 test frequencies (100Hz, 1kHz, 10kHz) and 2 voltage levels (0.3V / 0.6V RMS), for high accuracy on every measurement.

With a 1.14″ colour display, a built-in 250mAh battery, USB-C charging and two types of interchangeable heads (needle and hook), the LCRST1 is the ideal instrument for engineers, technicians and hobbyists looking for portability, reliability and ease of use in a single device.

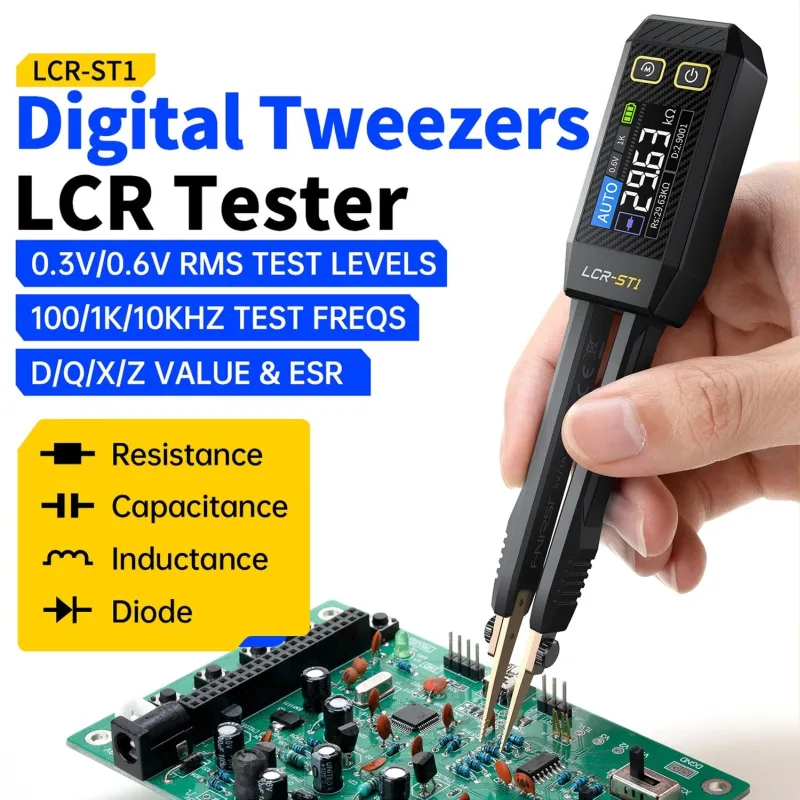

Digital tweezers for accurate testing of resistance, capacitance, inductance and diodes

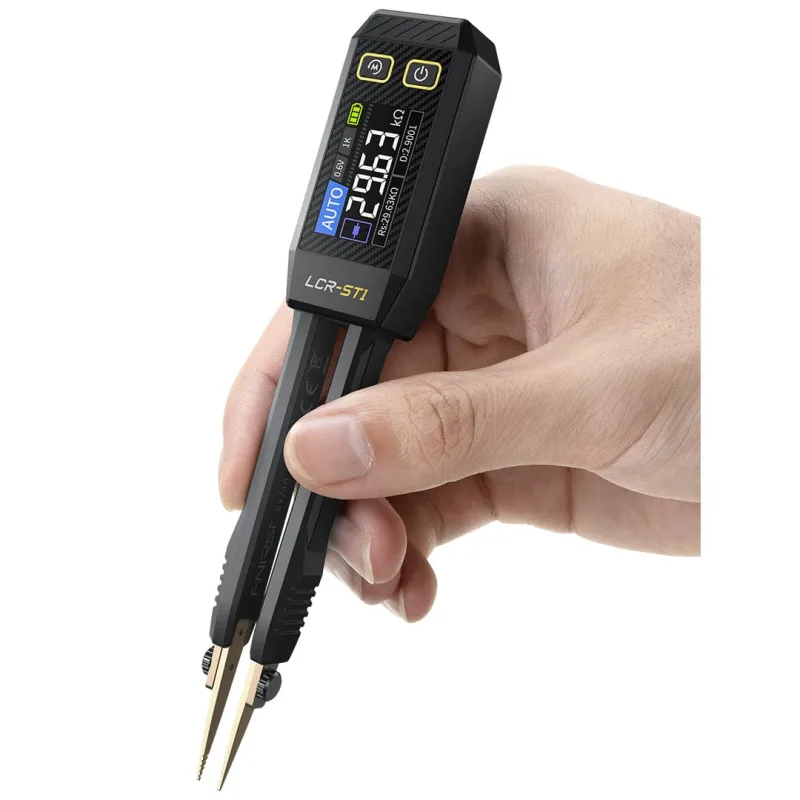

The LCRST1 is a compact, accurate pair of digital tweezers, ideal for testing SMD components on printed circuit boards.
It supports 3 test frequencies (100Hz, 1kHz, 10kHz), 2 voltage levels (0.3 / 0.6V RMS) and shows advanced parameters such as D, Q, Z, X and ESR, all on a clear colour display.

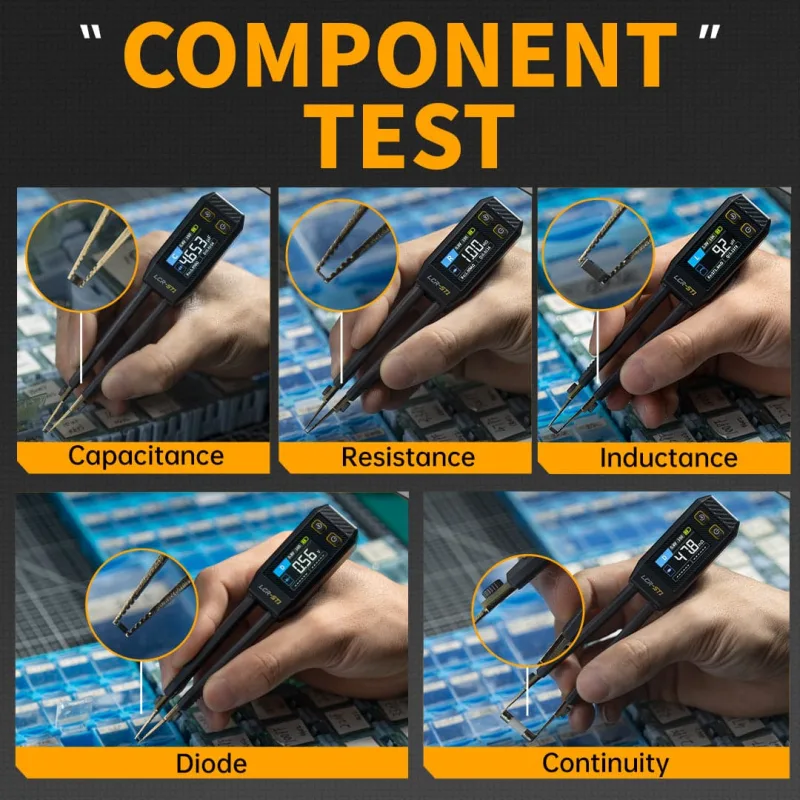

Quick component tests: capacitance, resistance, inductance, diodes and continuity

The LCRST1 identifies and accurately measures the main electronic components: capacitors, resistors, inductors and diodes, plus continuity checks, all in a few seconds and with one hand thanks to its handy tweezer format.

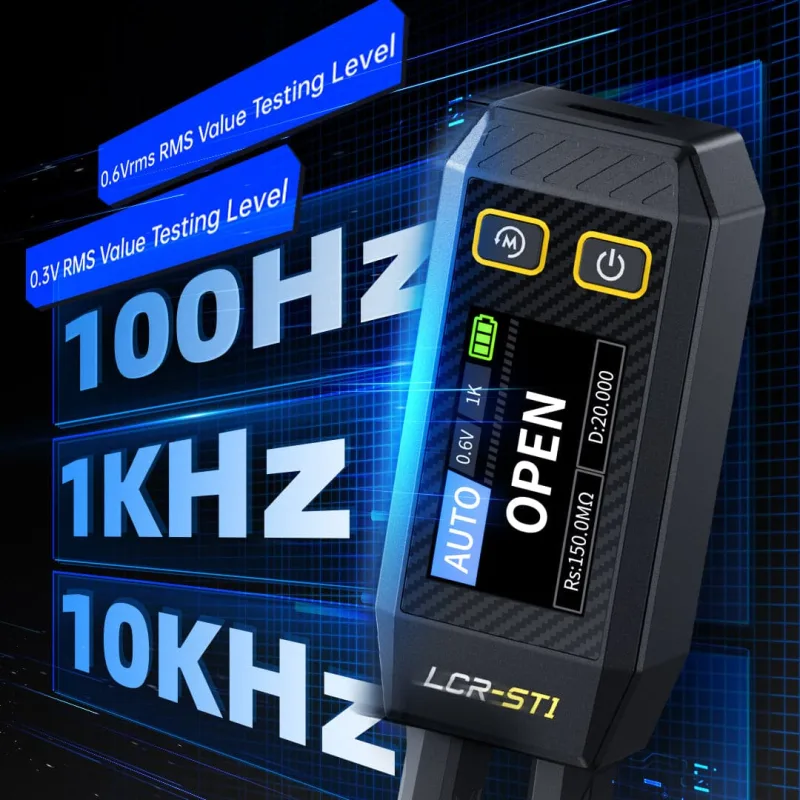

3 selectable test frequencies: 100Hz, 1kHz, 10kHz

The LCRST1 supports testing at 100Hz, 1kHz and 10kHz with voltage levels of 0.3V and 0.6V RMS, to suit different types of component and obtain more accurate measurements in any condition.

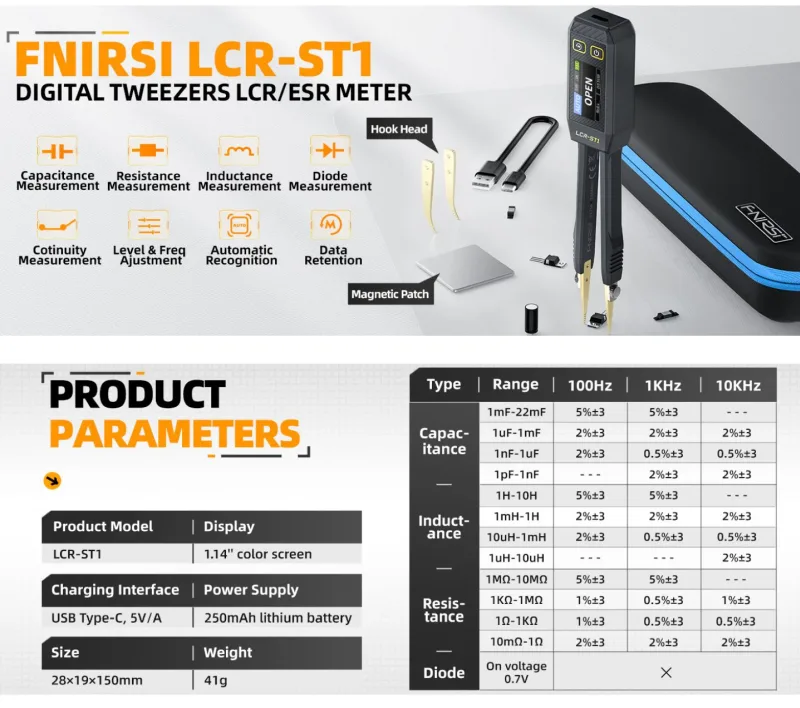

Full specifications and included accessories for professional testing with the LCRST1

The LCRST1 offers wide measuring ranges for capacitance, inductance, resistance and diodes, with accuracy that varies with the test frequency.

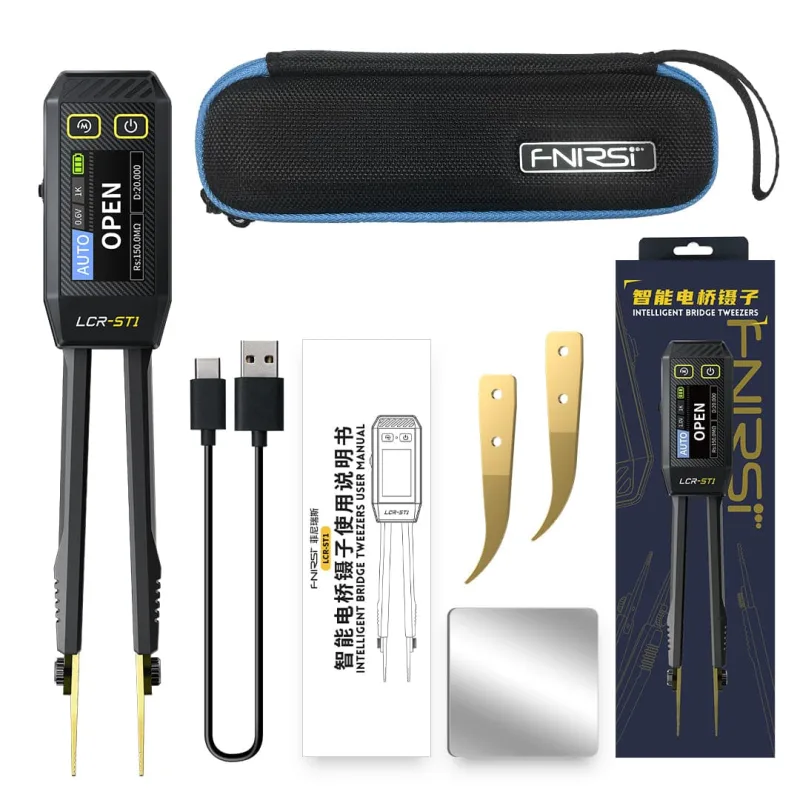

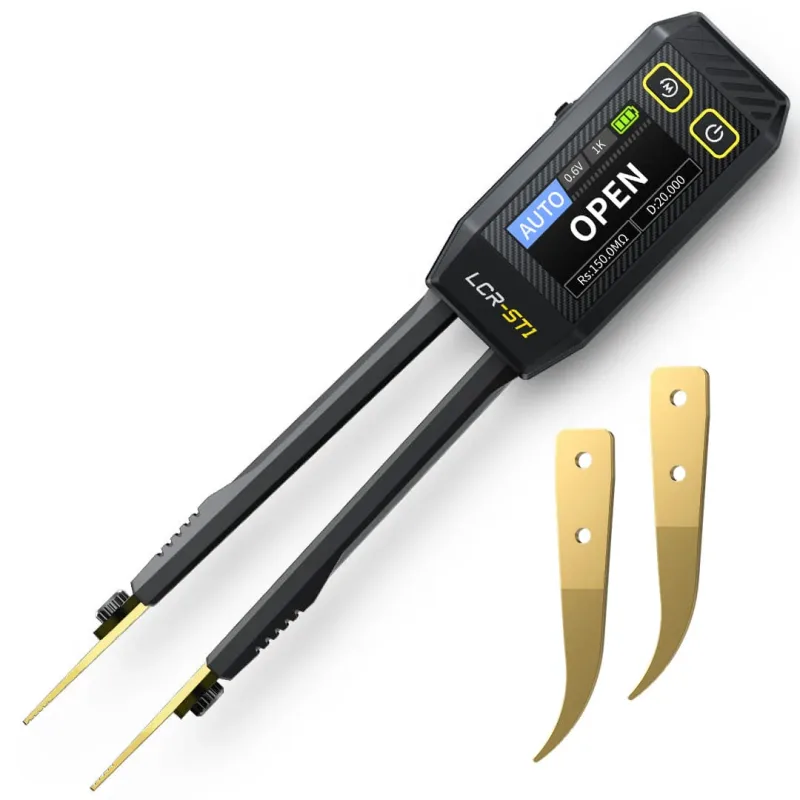

It comes with an interchangeable hook head, a magnetic patch, a USB-C cable and a case, making it a complete, accurate instrument that is ready to use straight away.

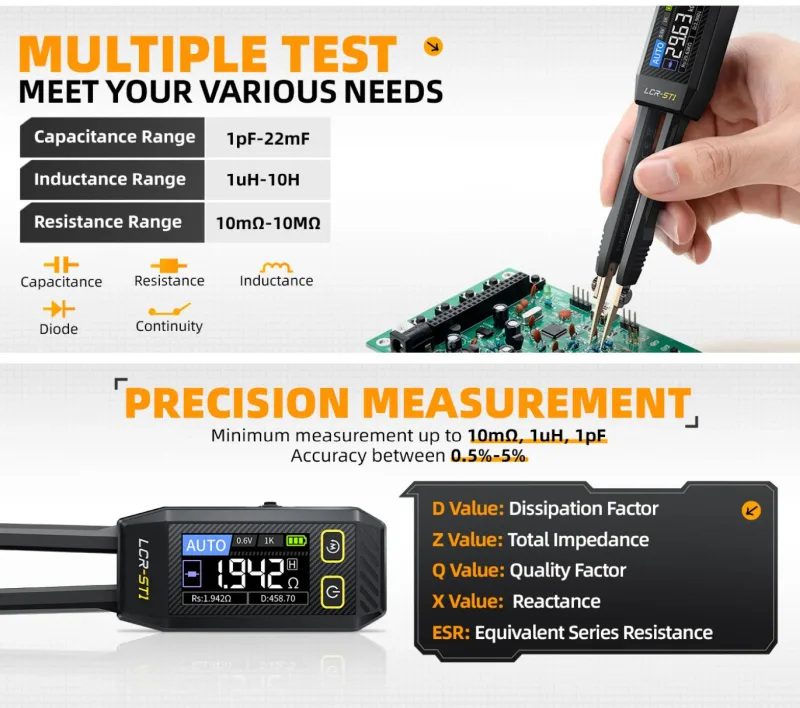

Ultra-accurate readings from 10 mΩ, 1 μH and 1 pF with advanced parameters

The LCRST1 performs accurate tests on a wide range of components, with minimum readings of 10 mΩ, 1 μH and 1 pF and accuracy from 0.5% to 5%.
It displays advanced parameters such as D, Q, X, Z and ESR, giving a complete picture of the characteristics of the component under test.

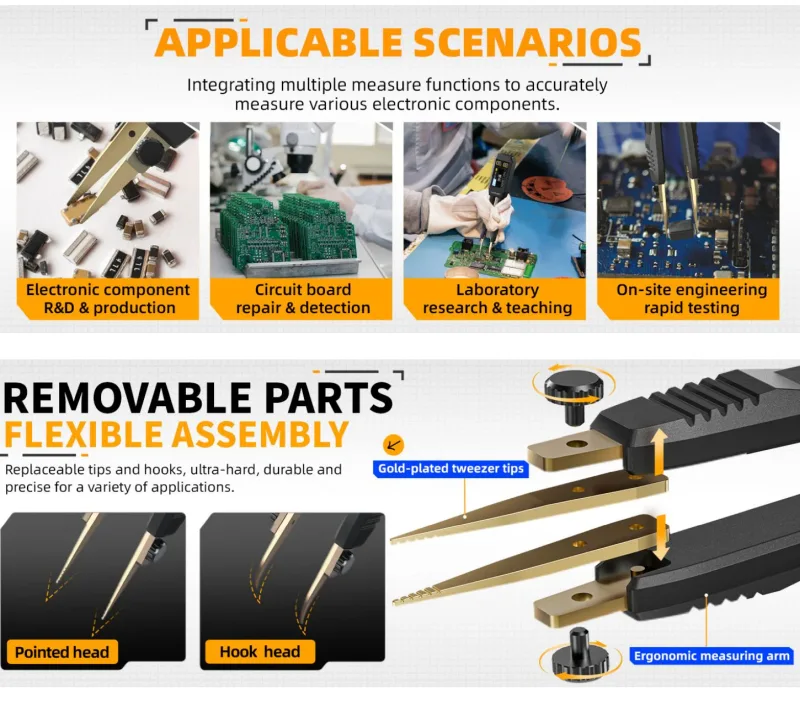

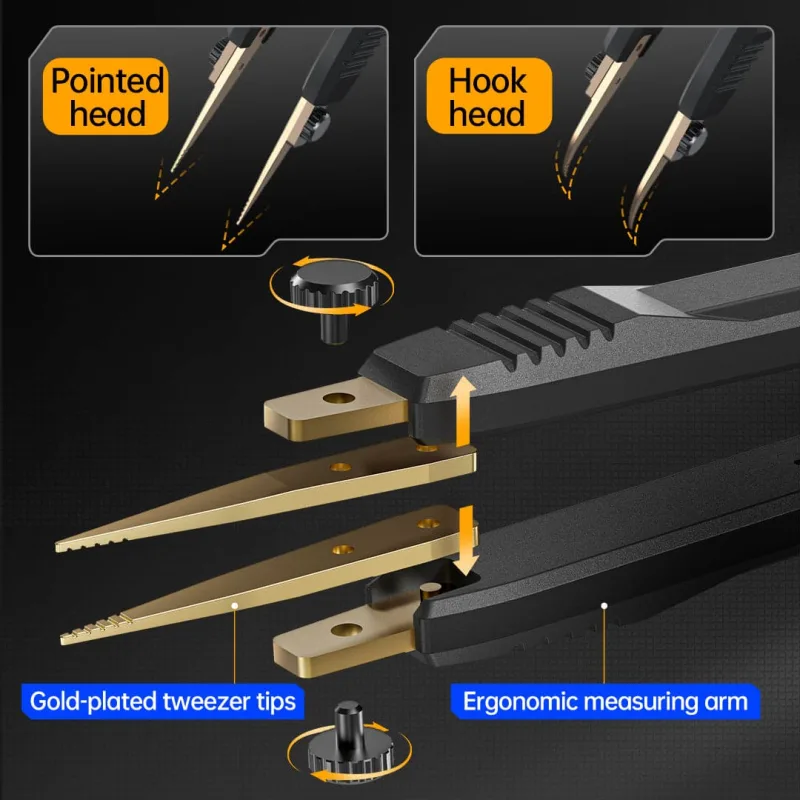

Versatile testing and interchangeable probe tips for every need

The LCRST1 is ideal for development, repair and testing of electronic components, boards and prototypes.
It includes interchangeable needle and hook tips, with high-precision gold-plated terminals and an ergonomic arm, to suit any scenario: laboratory, production or field work.
