Analogue Multimeter

Description

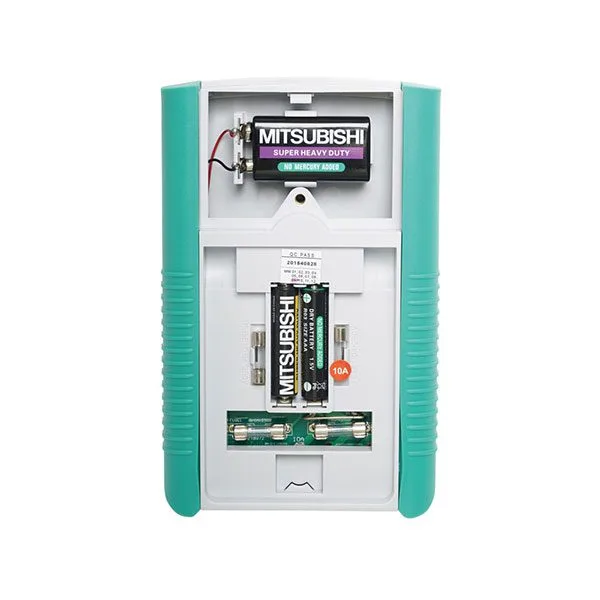

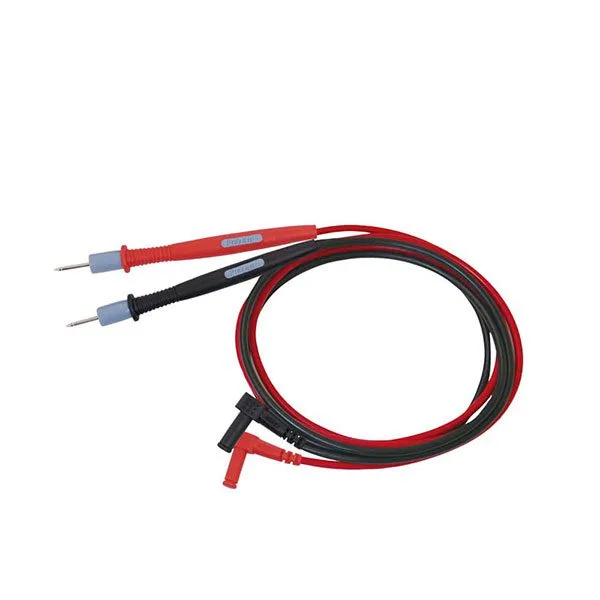

Analog multimeter (CE/CAT II 1000V, CAT III 500V) capable of measuring DC currents up to 10 A, DC and AC voltages up to 1000 V, resistances up to 20 MΩ, diodes, transistors, and electrical continuity. Power: 2 AAA 1.5 V batteries; 1 9 V transistor battery (batteries not included). The tester is supplied complete with test leads and spare fuses 0.5A/250V – 10A/250V.

Technical Specifications

• DC current ranges: 50 μA / 2.5 mA / 25 mA / 250 mA / 10A
• Resistances: x1 (0.2~2 kΩ) / x10 (2~20 kΩ) / x 100 (20~200 kΩ) / x 1 k (200~2 MΩ) / x 10kΩ (2 k~20 MΩ) ±4.0% ARC
• Continuity test with audible buzzer indication
• Diode and transistor test
• LED test
• Overload protection
• Battery test for 1.5 V (AA) and 9 V (radio) batteries
