Pocket Digital Multimeter – 300V

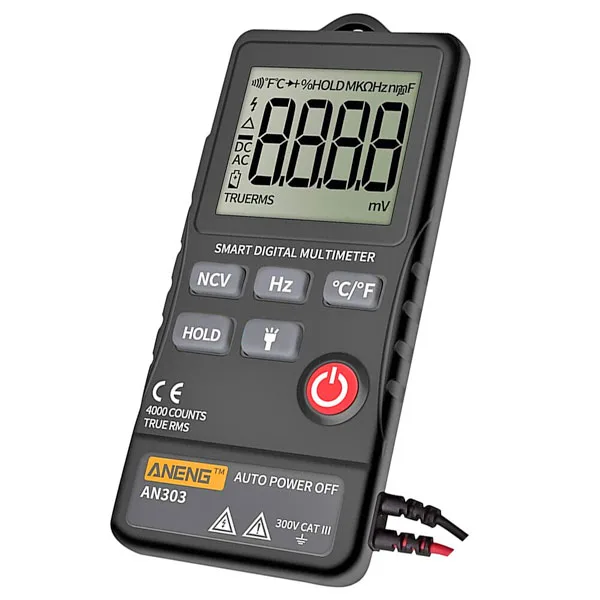

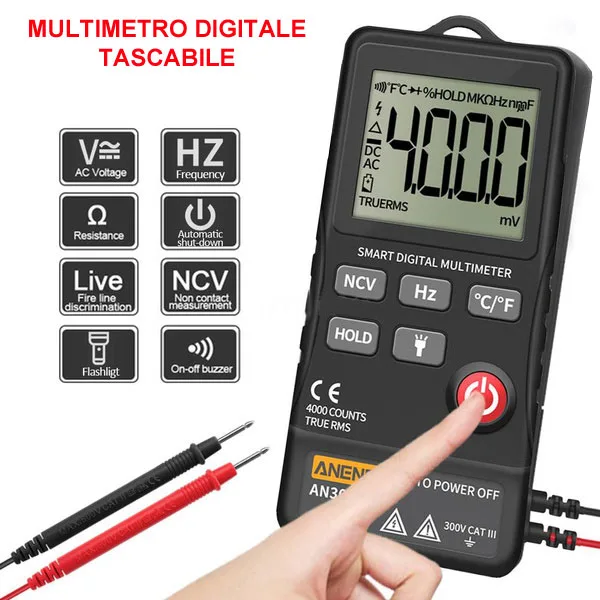

Digital multimeter with large LCD display, pocket-sized and ultra-slim
SKU 1606-HR2786EAN 8219671117845Brand: AnengProduct type: Multimeters & electrical testersMultimeters & accessories
Description

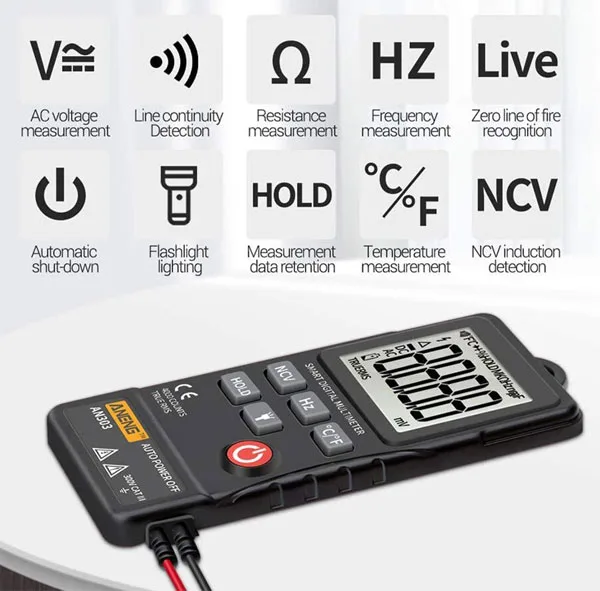

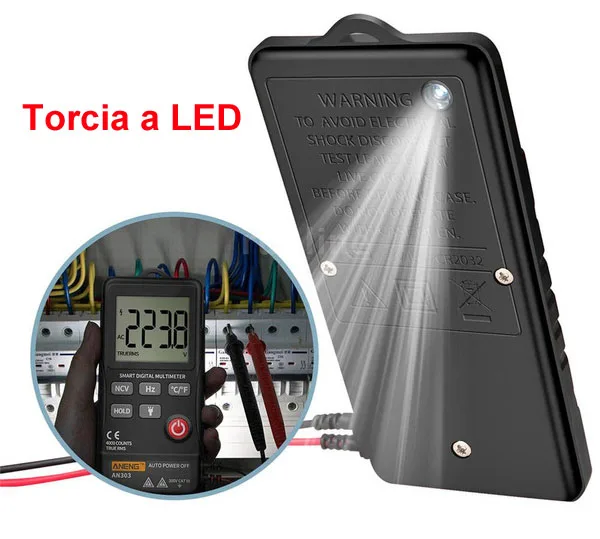

Digital multimeter with large LCD display, pocket-sized and ultra-slim. It can measure DC and AC voltages up to 310 V, resistances up to 40 Mohm, frequencies up to 100 kHz, and electrical continuity. It features auto-ranging, LED flashlight, non-contact NCV (Non-contact Detection), ambient temperature indication, auto power-off, and low battery indication. Powered by a 3V CR2032 battery (not included).
Technical specifications
- Resistance: 4 kohm / 40 kohm / 400 kohm / 4 Mohm / 40 Mohm
- Frequency: 4 Hz / 40 Hz / 400 Hz / 4 kHz / 40 kHz / 100 kHz
- Non-contact NCV detection: AC electromagnetic field presence indicator, the buzzer will beep and a red light will flash
Technical details
| Measurement category | CAT. III 300 V |
|---|---|
| DC voltage range | 4 V / 40 V / 310 V |
| AC voltage range | 4 V / 40 V / 310 V |
| Ambient temperature indicator | Yes, °C or °F |
| Continuity test | Yes |
| Low battery indicator | Yes |
| Auto power-off | Yes |
| Backlit | No |
| Data hold | Yes |
| Range change | automatic |

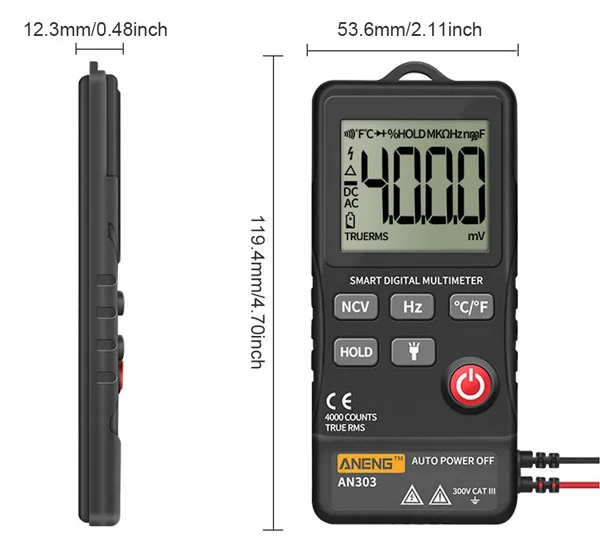

| Dimensions (mm) | 119x53.6x12.3 – 81 cm |
| Power supply | 1 3V CR2032 battery (not included) |
| Test lead length | approx. 98.3 mm |
