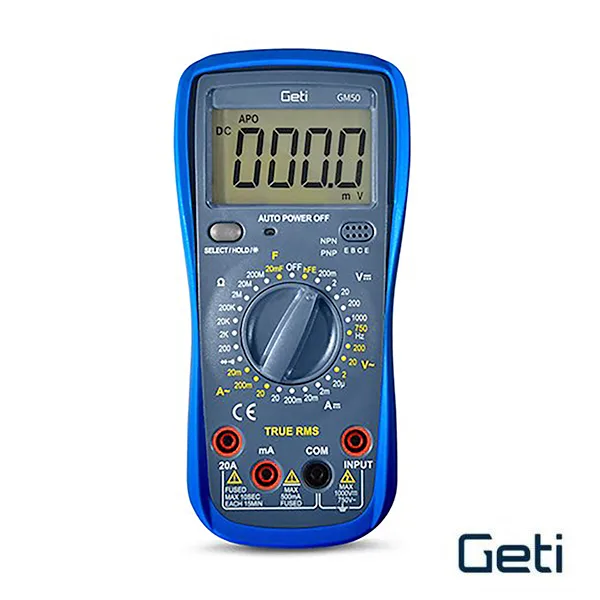

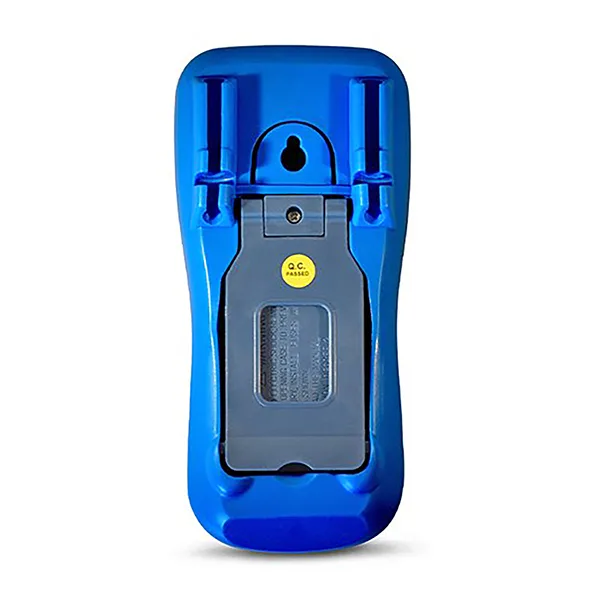

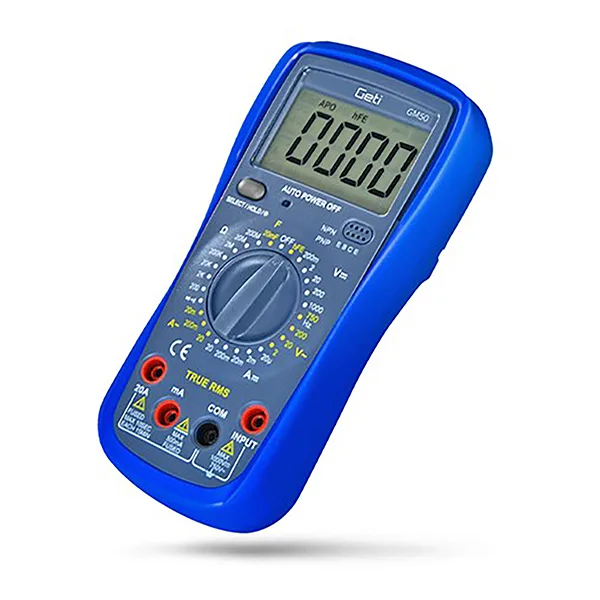

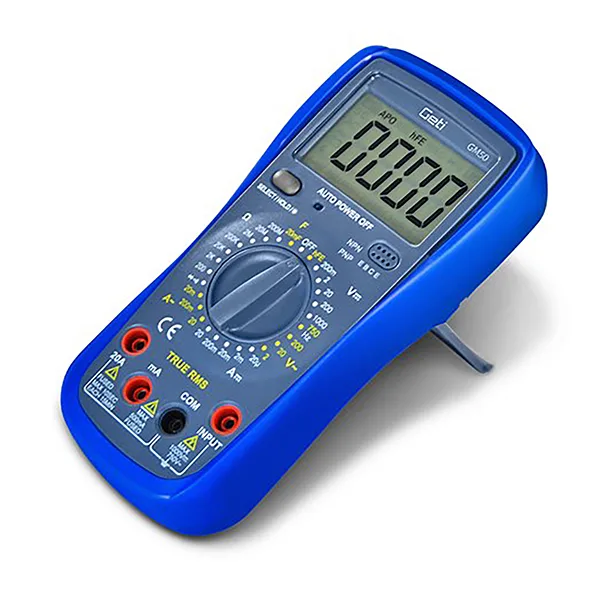

Digital Multimeter – 1999 Count – 1000V/20A

Digital Multimeter - 1999 Count - 1000V/20A - Image 1
Digital Multimeter - 1999 Count - 1000V/20A - Image 3
Digital Multimeter - 1999 Count - 1000V/20A - Image 4
Digital Multimeter - 1999 Count - 1000V/20A - Image 5
Digital Multimeter - 1999 Count - 1000V/20A - Image 6
Digital Multimeter - 1999 Count - 1000V/20A - Image 7
Digital Multimeter - 1999 Count - 1000V/20A - Image 8

SKU 8240-GM50DEAN 6935750558034Brand: GetiProduct type: Multimeters & electrical testers

Description

Versatile digital multimeter with wide-ranging measurement capabilities, including DC/AC current up to 20 A, voltage up to 1000 V, resistance up to 200 Mohm, and capacitance from 0 to 20mF. Fitted with advanced features such as diode, transistor, and continuity testing. Backlit display for clear readings in low-light conditions. Handy extra features include a low-battery indicator and overload protection. Powered by a 9V battery (included). Complete package with manual, test leads, and protective holster.

Digital multimeter capable of measuring AC and DC currents up to 20 A, DC voltages up to 1000 V, AC voltages up to 750 V, resistances up to 200 MΩ, capacitance from 0 to 20 mF, diodes, transistors, and electrical continuity. The large backlit display ensures easy and perfect reading of displayed data even in low-light conditions. The instrument also features other practical functions, such as low battery indication, auto power off, and overload protection.

Technical specifications

  • DC voltage (VDC): 200 m / 2 / 20 / 200 / 1000 V ± 0.5%
  • DC current (DCA): 20 µ / 2 m / 20 m / 200 m / 20 A ± 1.8%
  • Resistance: 200 / 2 K / 20 K / 200 K / 2 M / 200 MΩ ± 1.0%

Package contents

  • Digital multimeter x1
  • 9V battery x1

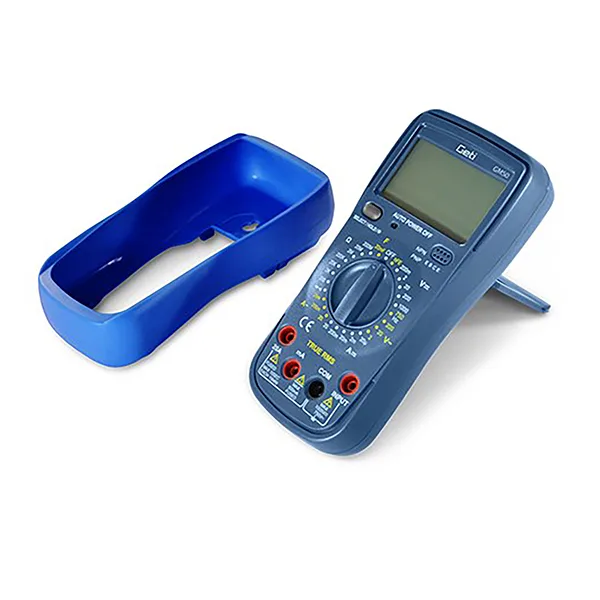

  • Protective case x1
  • Test leads CAT IV 600V / CAT III 1000V x1
  • User manual in Italian

Technical details

AC voltage (VAC) 2 / 20 / 200 / 750 V ± 1.0%
AC current (ACA) 20 m / 200 m / 20 A ± 2.0%
Capacitance 0 – 20 mF ± 5.0%
Display size 62 x 37 mm
Maximum display reading 1999
Operating temperature 0 – 40°C – Less than 80% relative humidity
Dimensions 189x89x55 mm
Weight approx. 365 g (battery and case included)
Power supply 1x 9V battery type 6F22 (included)
