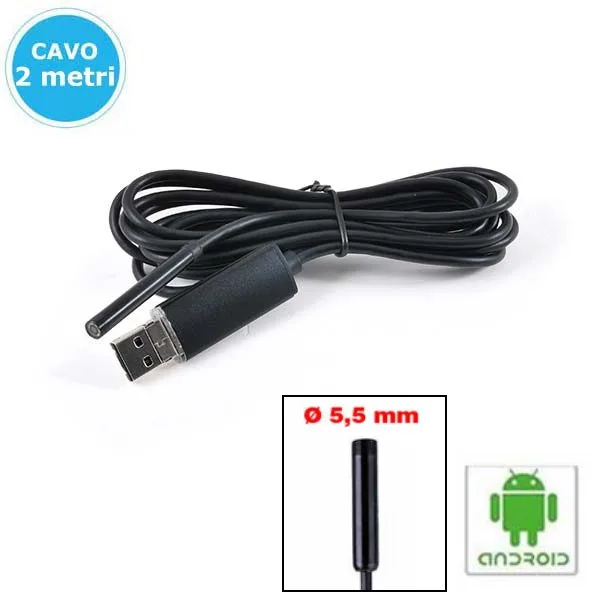

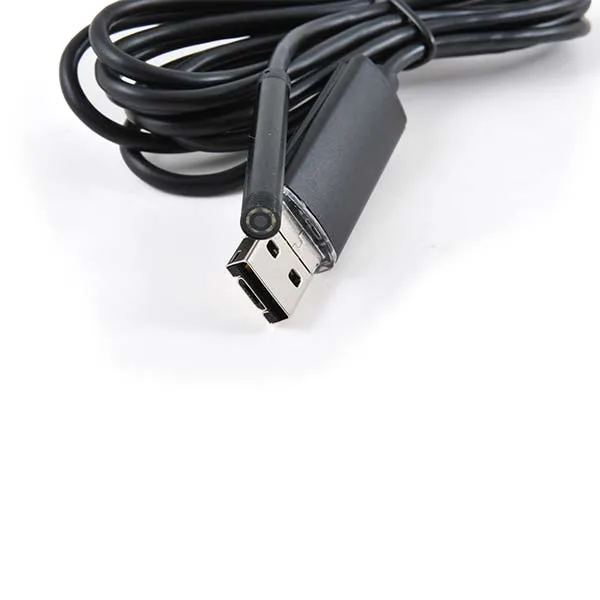

Snake Camera for Android and PC

Colour snake camera just 5.5 mm in diameter, designed specifically for inspecting tight, hard-to-reach spaces

SKU 8100-CP747EAN 8219671105231Item type: Assembled

Description

Color snake camera with a diameter of just 5.5 mm, specifically designed for inspections in tight and hard-to-reach environments. It connects directly to the micro USB port of a smartphone or PC. It allows real-time viewing of what the camera captures, taking photos and videos, and recording everything on Android smartphones and tablets or on a PC. The camera has a 66° viewing angle and a minimum focus distance of 4 cm. It is attached to the end of a flexible 2-meter cable. It features 6 white LEDs with adjustable intensity, ensuring optimal vision even in conduits, pipes, and underwater. Power is supplied via the micro USB port.

The package includes the snake camera, a magnet for picking up small metal parts, a hook for retrieving wires or other small objects, and a small mirror for looking around corners.

Note: the camera does not work on iOS devices. Android devices must support the OTG function, which allows the device to communicate with USB peripherals such as cameras, external HDDs, pen drives, keyboards, mice, or gamepads.

Technical specifications

  • Power supply: from the phone’s micro USB port or the computer’s USB port

Technical details

Video resolution 640x480; 1280x720 (PC only)
Viewing angle 67°
Focal distance 4 cm to infinity
Camera diameter 5.5 mm
Illumination 6 white LEDs with 3 adjustable intensity levels
Cable length 2 m
Supported operating systems Android, Windows 2000 / XP / Vista / Windows 7 or later
Operating temperature from -20°C to +85°C
Protection rating IP67
Weight 40 g
User manual ITALIAN
